HSW−...−AP/A S
Festo HSW−...−AP/AS 0812b English
34
1 Operating elements and connections
1
2
3
4
5
aJ
9
8
7
6
1
Stop element for stroke setting:
Ĉ Hydraulic shock absorber/fixed stop
in HSW−10−...−AP/−AS
Ĉ Stop screw in HSW−12/16−...−AP
2
Swivel lever
3
Link with path guide
4
Adjusting screw for angle setting
5
Groove for proximity switch SMx−8
6
Linear guide (guide carriage)
7
Pivot bearing
8
Spring clamping element
9
End stop:
Ĉ
Stop pin in HSW−10
Ĉ Hydraulic shock absorber/fixed stop
in HSW−12/16−...−AP/−AS
aJ
Sub−base with through holes and centring
countersink for fastening screws

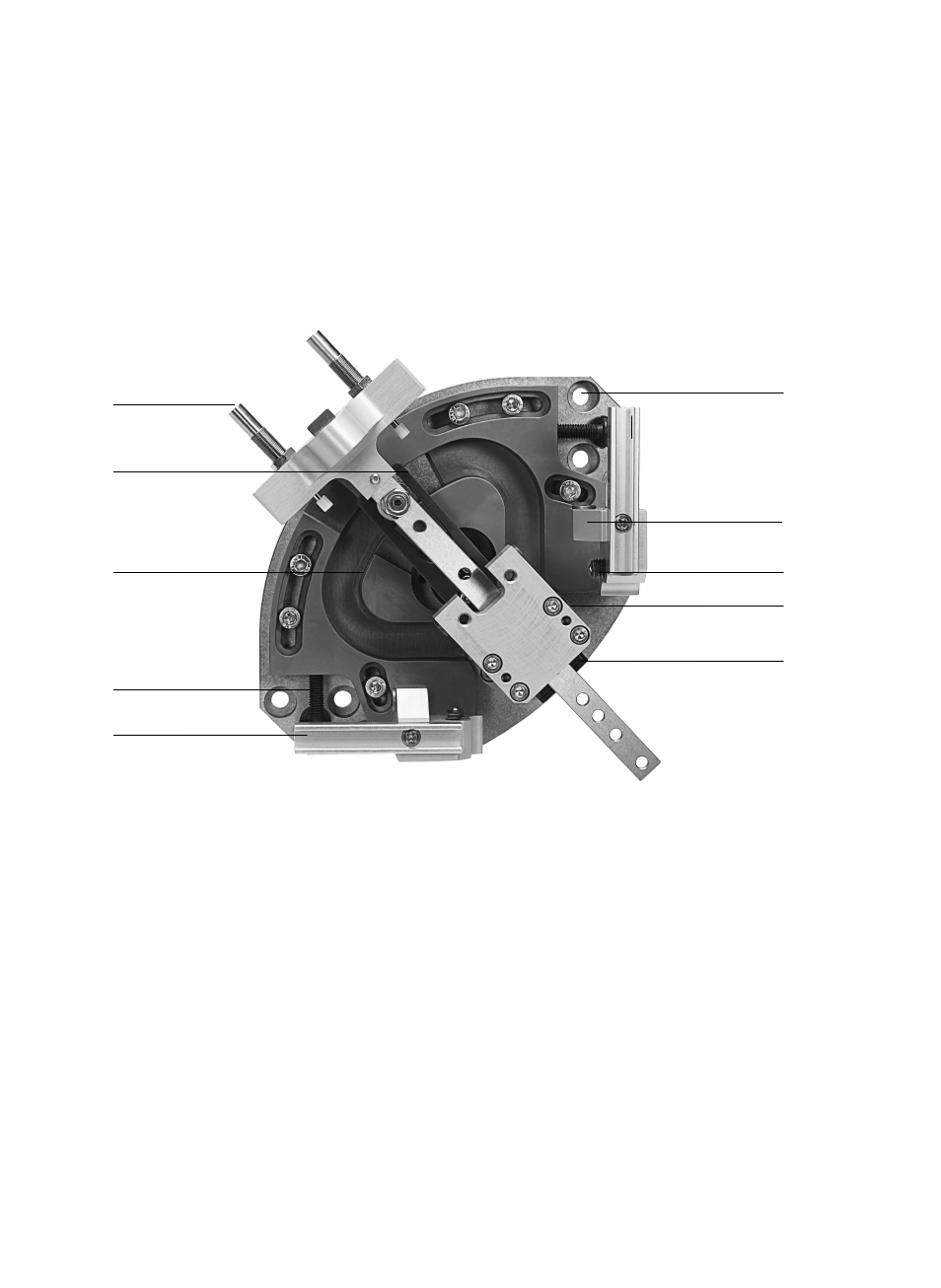

Fig. 1: Operating parts and connections HSW (front view)
