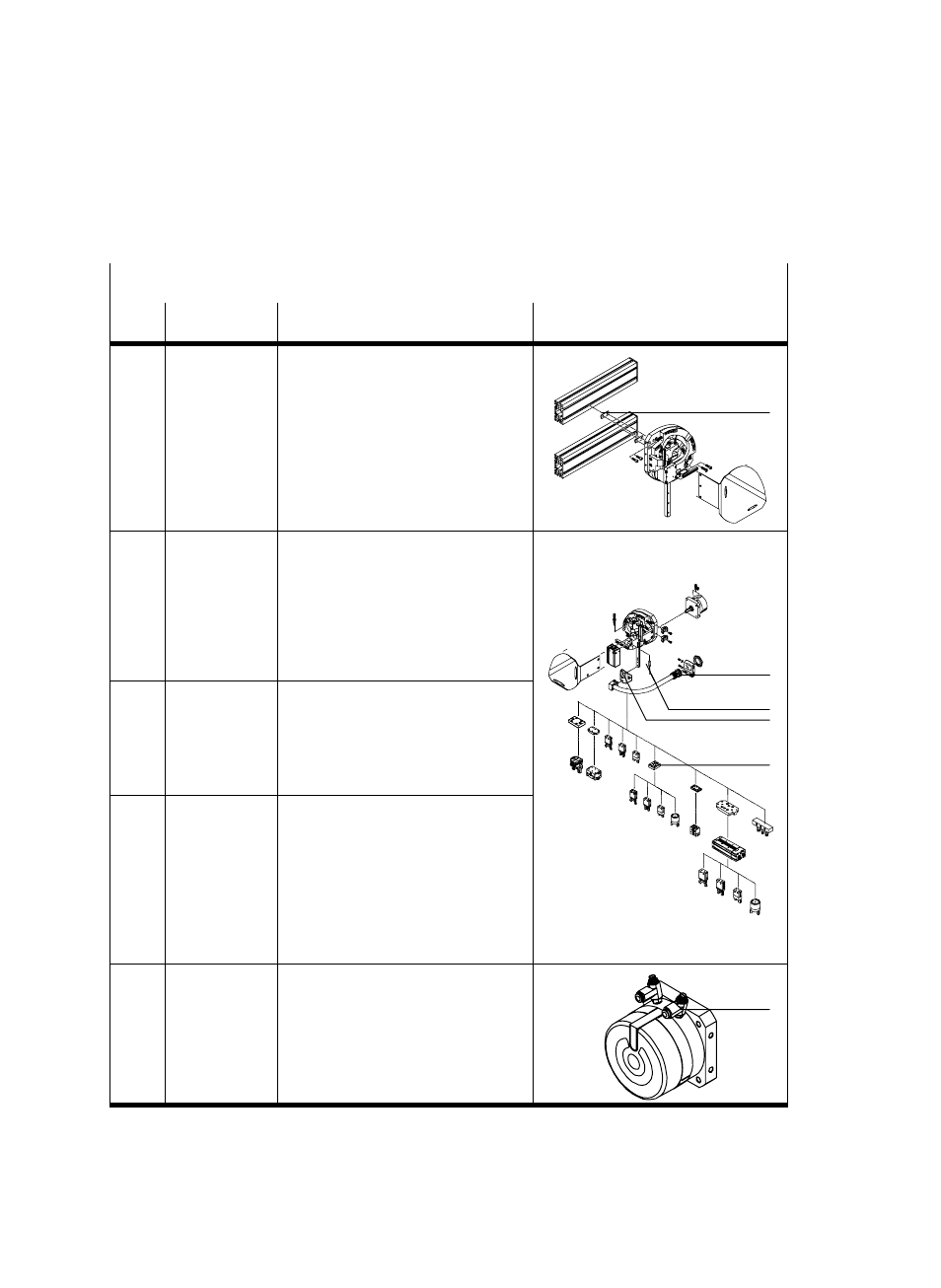

Kits and accessories (see also the chapters Fitting" and Accessories")
Item Type Instructions for use
(A) HMBN−8
HMBS Slot nuts for fastening to profile
columns
(A)
(B) MKRP Installation kit:
Ĉ Flexible protective tube for
moving tubing
Ĉ Cable strap to sub−base
Ĉ Hose holder
Ĉ Adapter bracket for fastening
e.g. to sub−base or structure (B)
(C) SME/SMT−8 Proximity sensor for end position
sensing
Proximity sensor for waiting position
sensing (HSW−...−AW)
(C)
(D)
(E)
(D)
(E) HAPG−69/−71
HAPG/HAPS Adapter kit and if necessary
additional adapter plates for
fastening of add−on components
(gripper, swivel drive). Instructions
on fitting further accessories in
conjunction with Festo components
are summarized in the system
manual Handling technology"
( )
(F) GRLA For HSW−...−AP:
One−way flow control valves for
setting the positioning speed
(F)
Fig. 3
