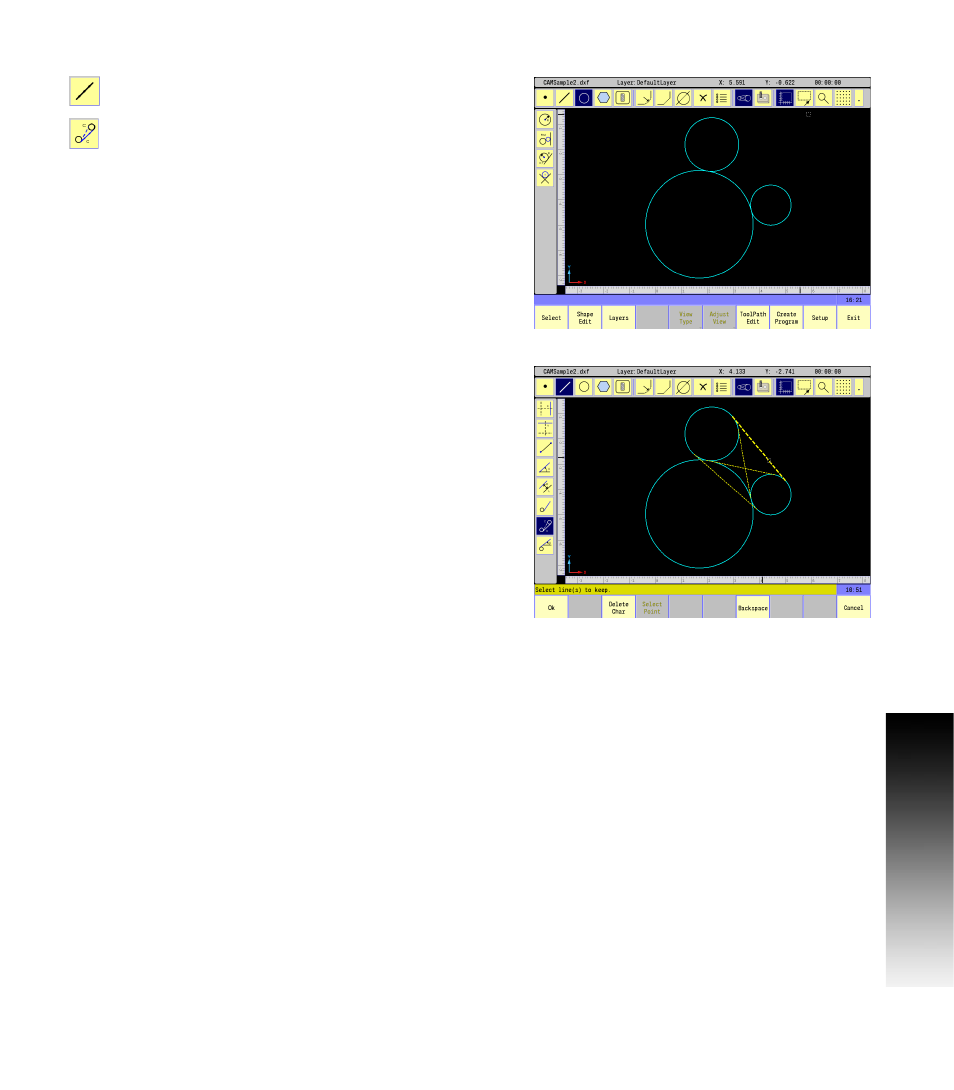

Create Line Geometry
Select the Line button from the Geometry Tools in the
main Toolbar.
Select the Line Tangent (between two circles) button
from the side Toolbar, then select the two smaller
circles.
With all possibilities shown, select the line highlighted in the
example shown, and touch in an open display area to accept the line
chosen, removing the other possible solutions.
