126 7 Programming: Canned Cycles, sub-programs
7.
1 Explaining Basic Cy
cles

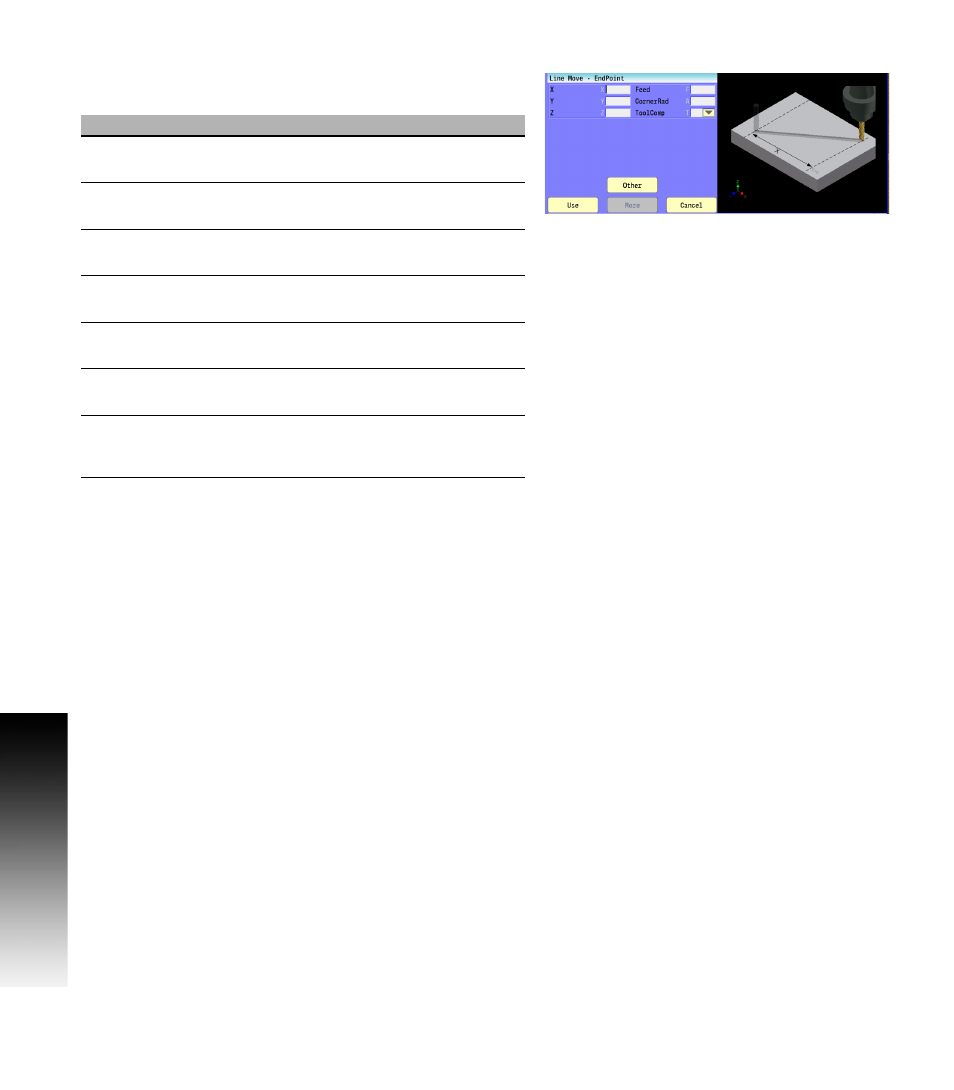

Line Move - EndPoint:
 Specify the desired end point coordinate using actual position
designations, either in absolute or incremental.
 All parameters are optional.
Field Code Description
X X Absolute position of, or incremental
distance to, the desired X-Axis destination.
Y Y Absolute position of, or incremental
distance to, the desired Y-Axis destination.
Z Z Absolute position of, or incremental
distance to, the desired Z-Axis destination.
U U Absolute position of, or incremental
distance to, the desired U-Axis destination.
Feed F Feedrate at which to conduct the
machining movement.
CornerRad A Positive arc radius for corner rounding,
negative X/Y distance for chamfering.
ToolComp T Select the modal tool diameter
compensation to activate or select Off to
deactivate comp.
