124 7 Programming: Canned Cycles, sub-programs
7.
1 Explaining Basic Cy
cles

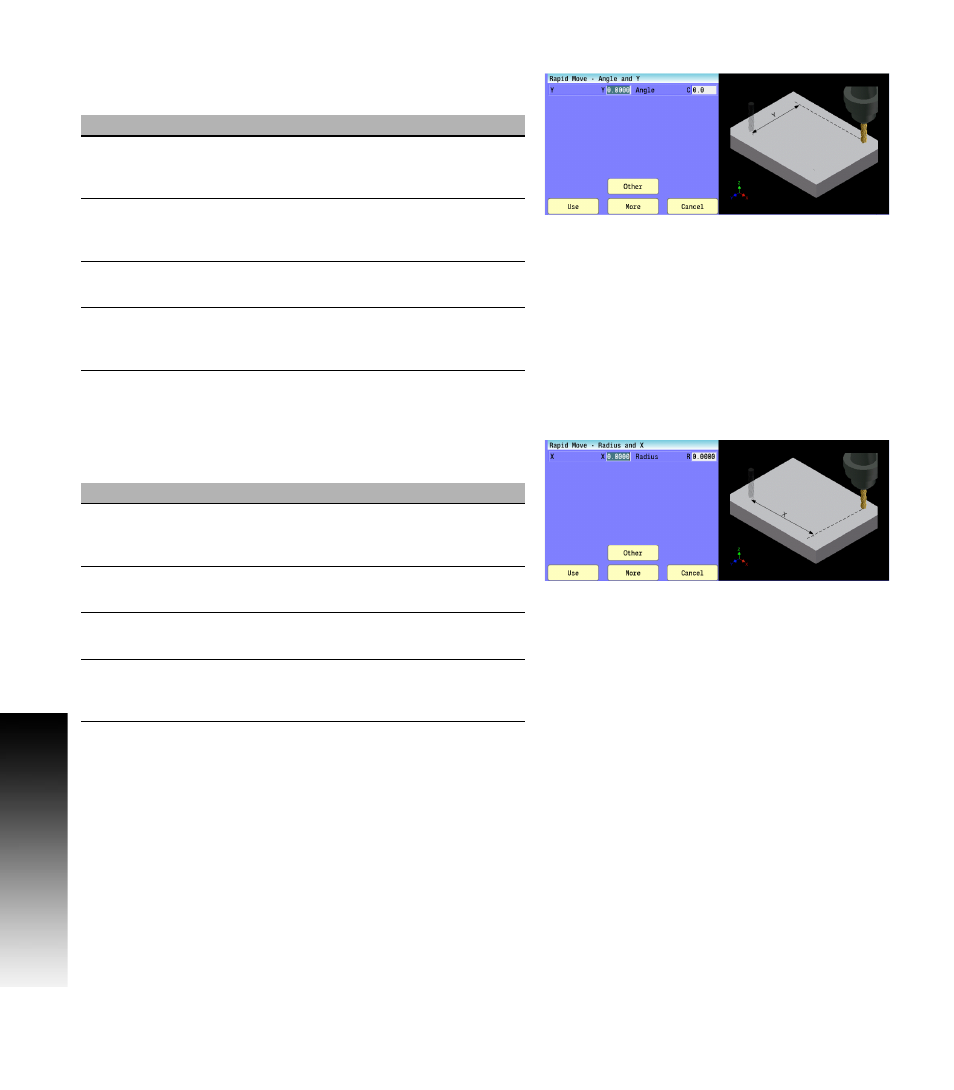

Rapid Move - Angle and Y:
 Specify the desired end point coordinate using the angle of the
movement and the actual Y-Axis position designation.
Rapid Move - Radius and X:
 Specify the desired end point coordinate using the radius of the
movement and the actual X-Axis position designation.
Field Code Description
Y Y Absolute position of, or incremental
distance to, the desired Y-Axis destination.
(Required)
Angle C Polar degree angle of the radius from the
start point to the desired destination.
(Required)
Z Z Absolute position of, or incremental
distance to, the desired Z-Axis destination.
ToolComp T Select the modal tool diameter
compensation to activate or select Off to
deactivate comp.
Field Code Description
X X Absolute position of, or incremental
distance to, the desired X-Axis destination.
(Required)
Radius R Absolute or incremental distance to the
desired destination. (Required)
Z Z Absolute position of, or incremental
distance to, the desired Z-Axis destination.
ToolComp T Select the modal tool diameter
compensation to activate or select Off to
deactivate comp.
