134

7 Programming: Canned Cycles, sub-programs

1 Explaining Basic Cy

cles

Using Arc Center and EndPoint to create a circle

Since the start point and end point of a circle are the same, you do not
need to program an end point to create a circle. Position the tool at the
required starting point before you execute the arc move.

Omit the end point parameters for X and Y.

Conversational example: Arc CCW XCenter 0 YCenter .5

G-code example: G91 G3 I0 J.5

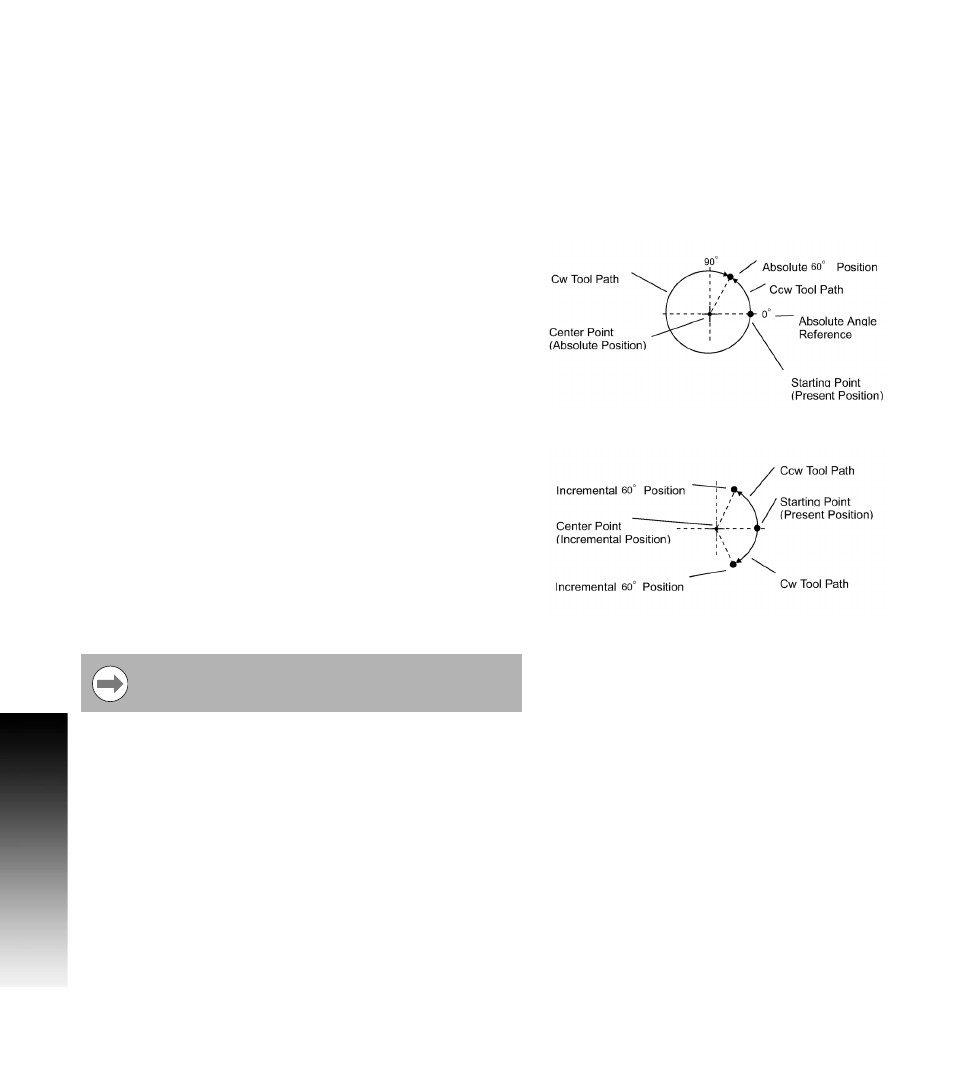

Arc Move - Center and Angle, Absolute mode:

Arc Move - Center and Angle, Incremental mode:

Programming a full circle is not possible when using the
XYR (Radius and EndPoint) format.
