342 10 CAM: Programming
1
0
.1 CAM Pr
ogr
a
mming

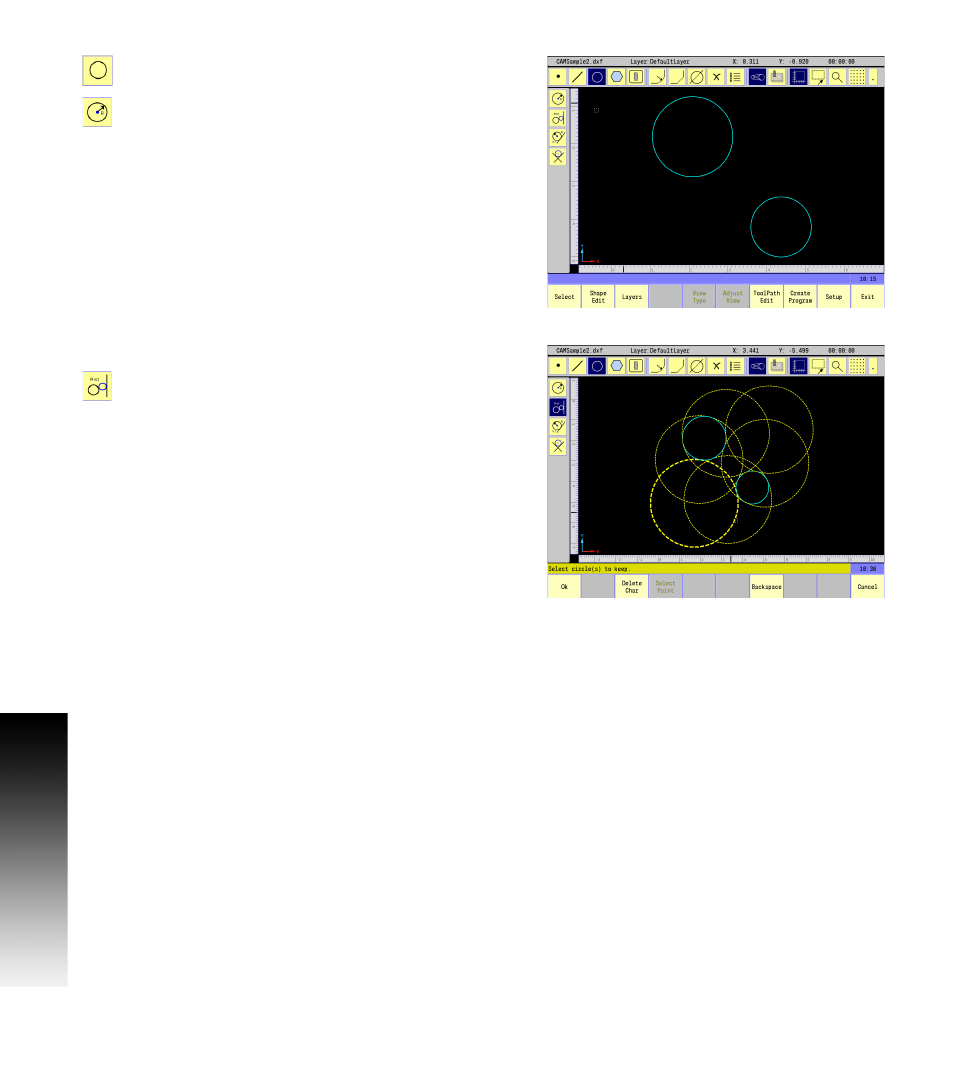

 The Circle button remains selected until another
Toolbar button is selected.
 Select the Create Circle button for the method to be
used to define the geometry from the side Toolbar.
 Enter the following information on the Create Circle pop-up
dialogue.
 Start X field: Enter 4.2
 Start Y field: Enter -4
 Radius field: Enter .75
 Touch the USE button on the pop-up dialogue, or Enter from the
numeric key pad.
 With the Circle button still selected.
 Select the Circle Tangent button for the method to
be used to define the geometry from the side Toolbar.
 Select both circles (previously created). Multiple geometry solutions
appear (see page 334) regarding multiple geometry.
 Enter the following information on the Create Circle pop-up
dialogue.
 Radius field: Enter 2, touch Use.
 Select the circle highlighted in the example shown.
 Touch on an empty area in the display.
 The required tangent circle is now added, and all other possible
solutions are removed from the display.
