ACU-RITE 3500i
133
7.
1 Explaining Basic Cy
cles

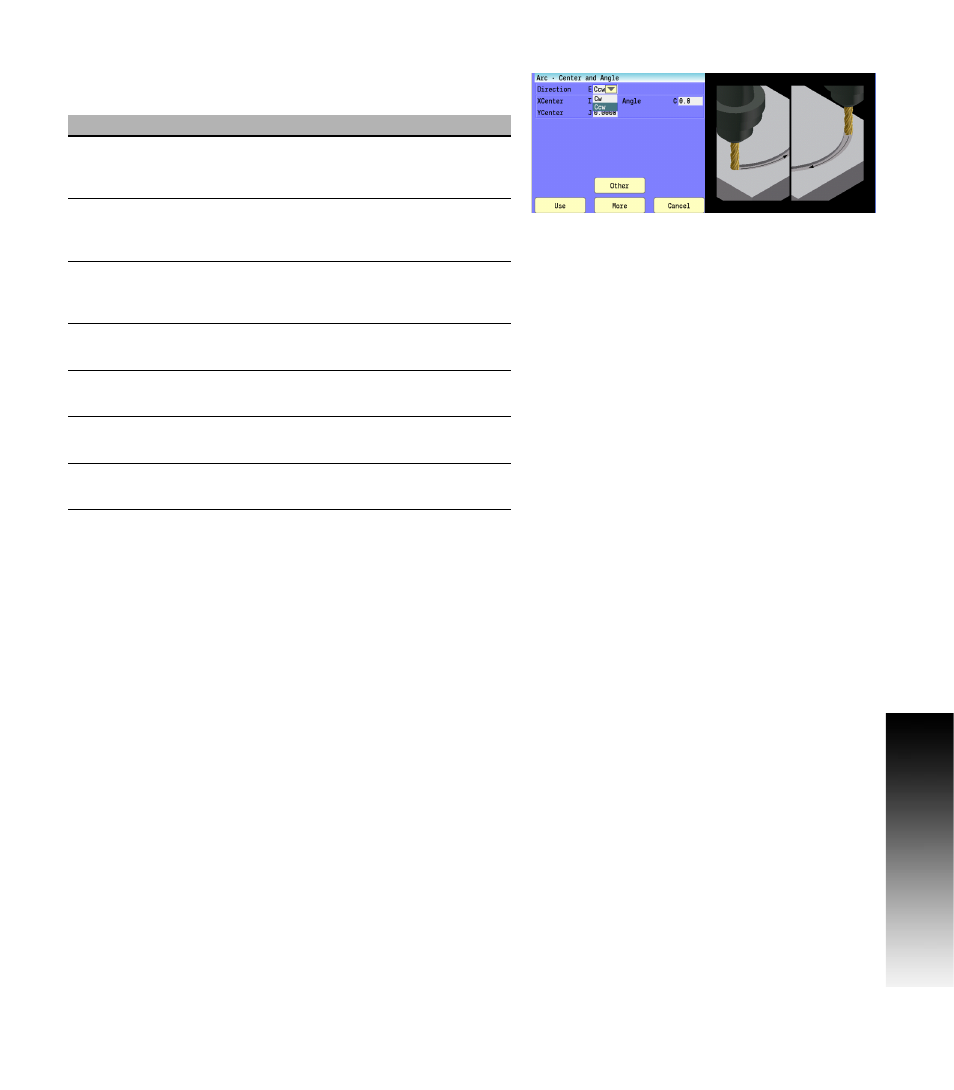

Arc Move - Center and Angle:
Specify the arc movement using the coordinates of the arc center
point and the included polar angle.
Field
Code
Description
Direction
E
Specifies a clockwise (CW) or
counterclockwise (CCW) arc direction.
(Required)
Xcenter
I
Absolute position of, or incremental
distance to, the desired X-Axis arc center
point. (Required)
Ycenter
J
Absolute position of, or incremental
distance to, the desired Y-Axis arc center
point. (Required)
Angle
C
Included polar degree angle of the arc.
(Required)
Z
Z
Absolute position of, or incremental
distance to, the desired Z-Axis destination.
Feed
F
Feedrate at which to conduct the
machining movement.
CornerRad
A
Positive arc radius for corner rounding,
negative X/Y distance for chamfering.
