Avaya Cajun P882 - Manual (Page 483)

Cajun P550/P880/P882 Switch User Guide
Monitoring and Configuring the Forwarding Cache
18-5
Monitoring the Forwarding Cache Statistics
Monitoring the forwarding cache statistics includes:
■
Displaying Frame Fowarding Statistics
■
Searching the Routing Cache for an Entry
Displaying Frame Fowarding Statistics
The frame forwarding statistics indicate the performance of each of
the multilayer media modules in respect to layer 3 routing and
forwarding. You can display the frame forwarding statistics from
either the web agent or the CLI.
Displaying
Frame
Fowarding
Statistics Using
the Web Agent To display the frame forwarding statistics using the web agent:
1. Select Forwarding Statistics from the Routing >
L3 Forwarding Cache group on the web agent window. The
Frame Forwarding Statistics dialog box opens (Figure 18-2).

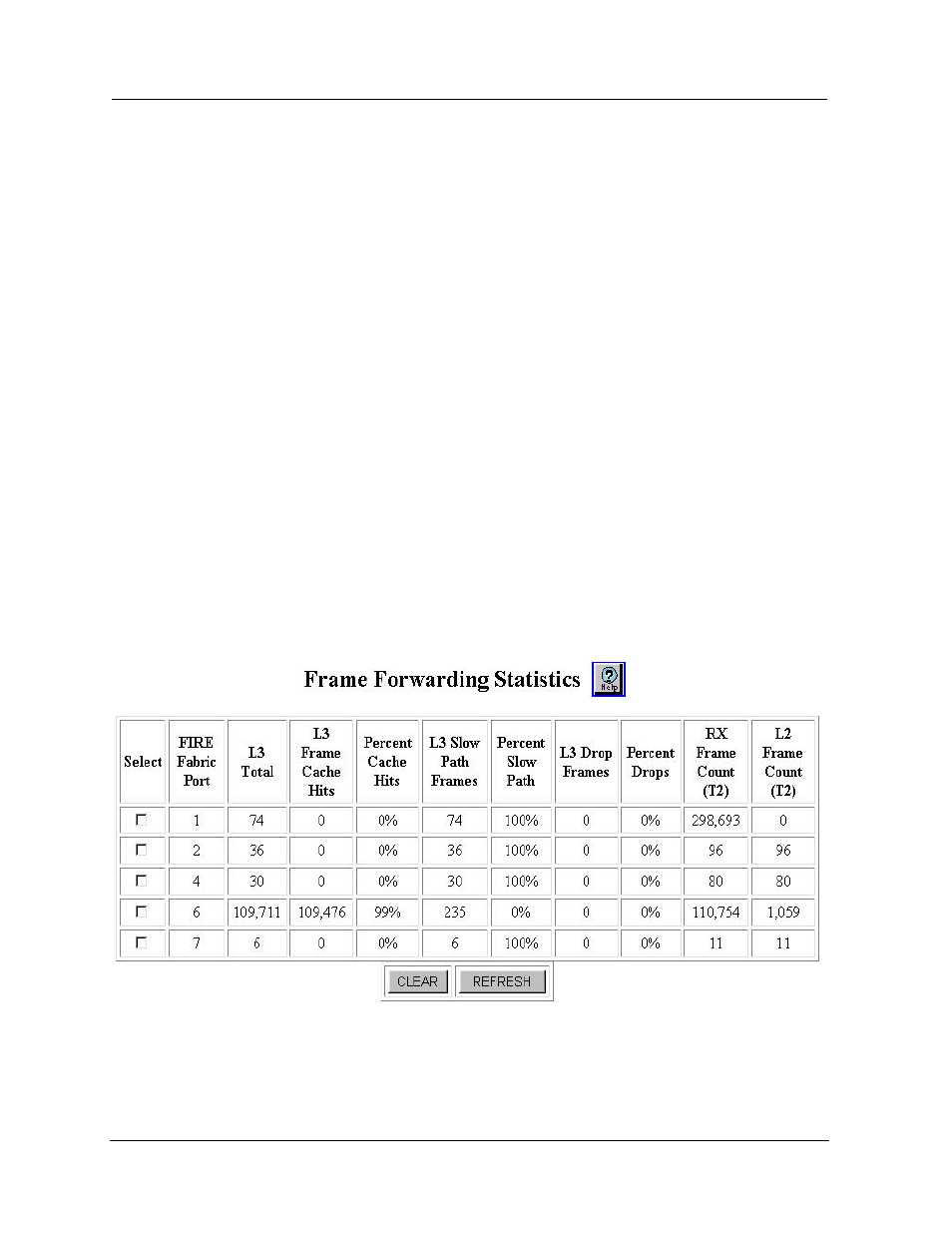

Figure 18-2. Frame Forwarding Statistics Dialog Box
