Avaya Cajun P882 - Manual (Page 402)

15-10
Chapter 15
Cajun P550/P880/P882 Switch Configuration Guide
Creating an AppleTalk Static Route
You can create an AppleTalk static route using the web agent or the
CLI.
Creating an
AppleTalk Static
Route Using the
Web Agent To create an AppleTalk static route using the web agent:
1. Select Static Route from the Routing > AppleTalk >
Configuration group on the web agent window. The
AppleTalk Static Route dialog box opens
(Figure 15-6).

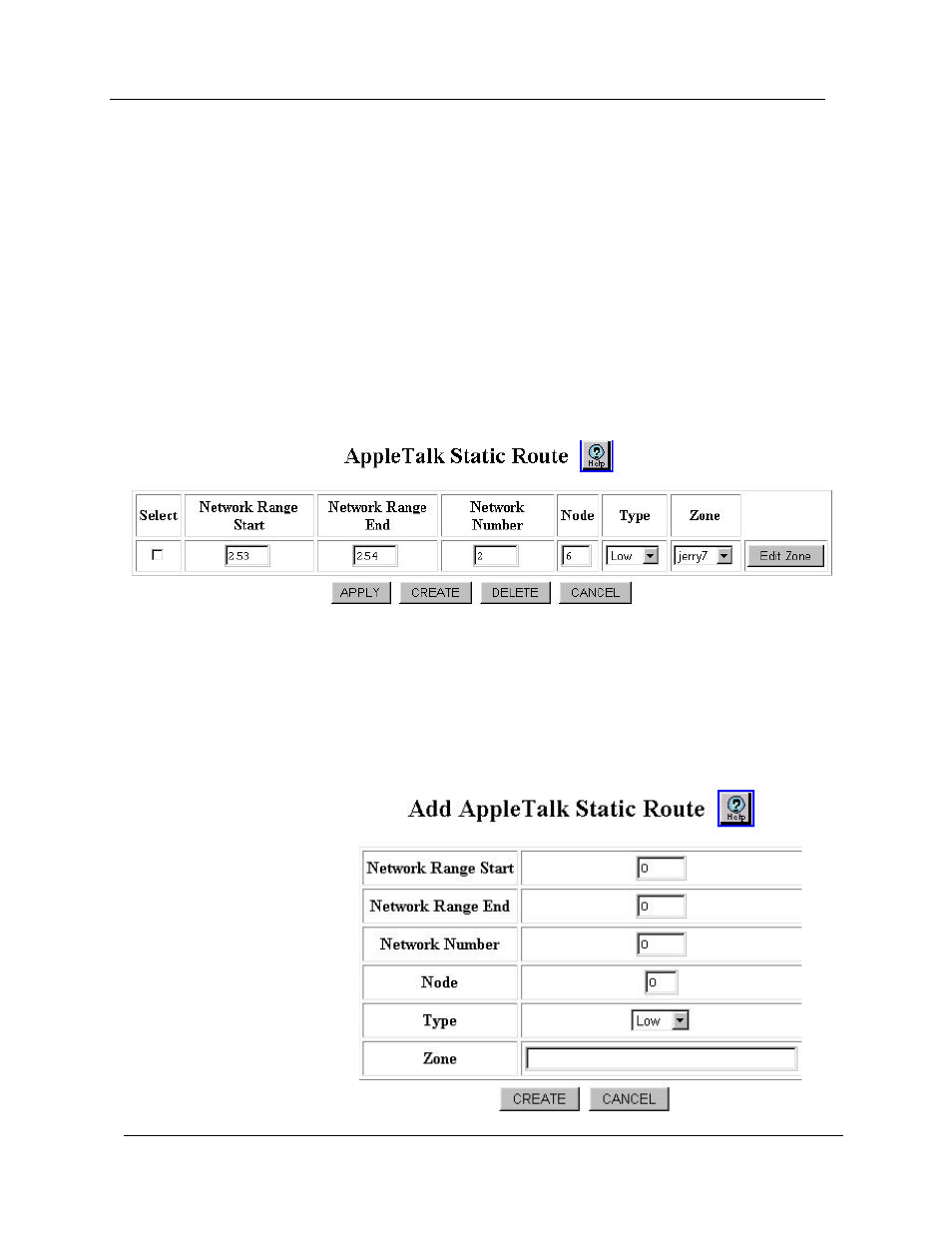

Figure 15-6. AppleTalk Static Route Dialog Box
2. Select CREATE to add a new static route. The Add
AppleTalk Static Route dialog box opens
(Figure 15-7).
Figure 15-7. Add AppleTalk Static Route Dialog Box
