5-20
Chapter 5
Cajun P550/P880/P882 Switch User Guide

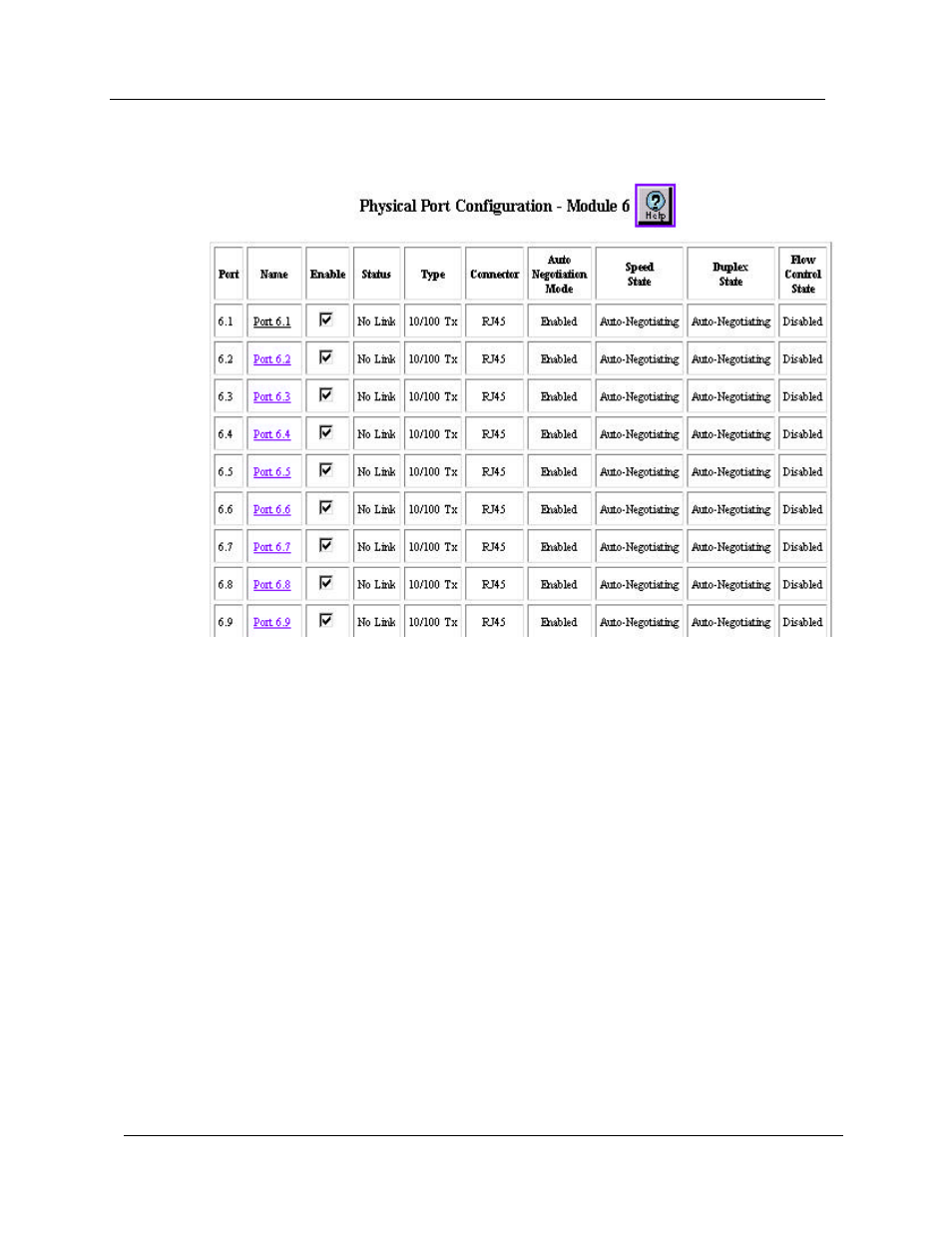

Figure 5-5. Physical Port Configuration Window for the Fast
Ethernet Module installed in Slot 6 (partial view)
4. Click the checkbox in the Enable column to enable the port
you want to configure. A check mark displays indicating the
port is enabled.
5. Click APPLY located at the bottom of the dialog box to save
your settings, or CANCEL to restore previous settings.
6. Select a port name from the Name field
(for example, Port 6.1). The Detailed Physical Port
Configuration dialog box for that port opens
(Figure 5-6).
