11-20
Chapter 11
Cajun P550/P880/P882 Switch User Guide
Displaying OSPF Neighbors
The OSPF neighbors table summarizes the list of OSPF interfaces
and their associated neighbors. You can display OSPF neighbors
using either the web agent or the CLI.
Displaying OSPF
Neighbors
Using the Web
Agent To display the OSPF neighbors using the web agent:
1. Select Neighbors from the Routing > IP > OSPF group on the
web agent window. The OSPF Neighbors dialog box opens
(Figure 11-11).

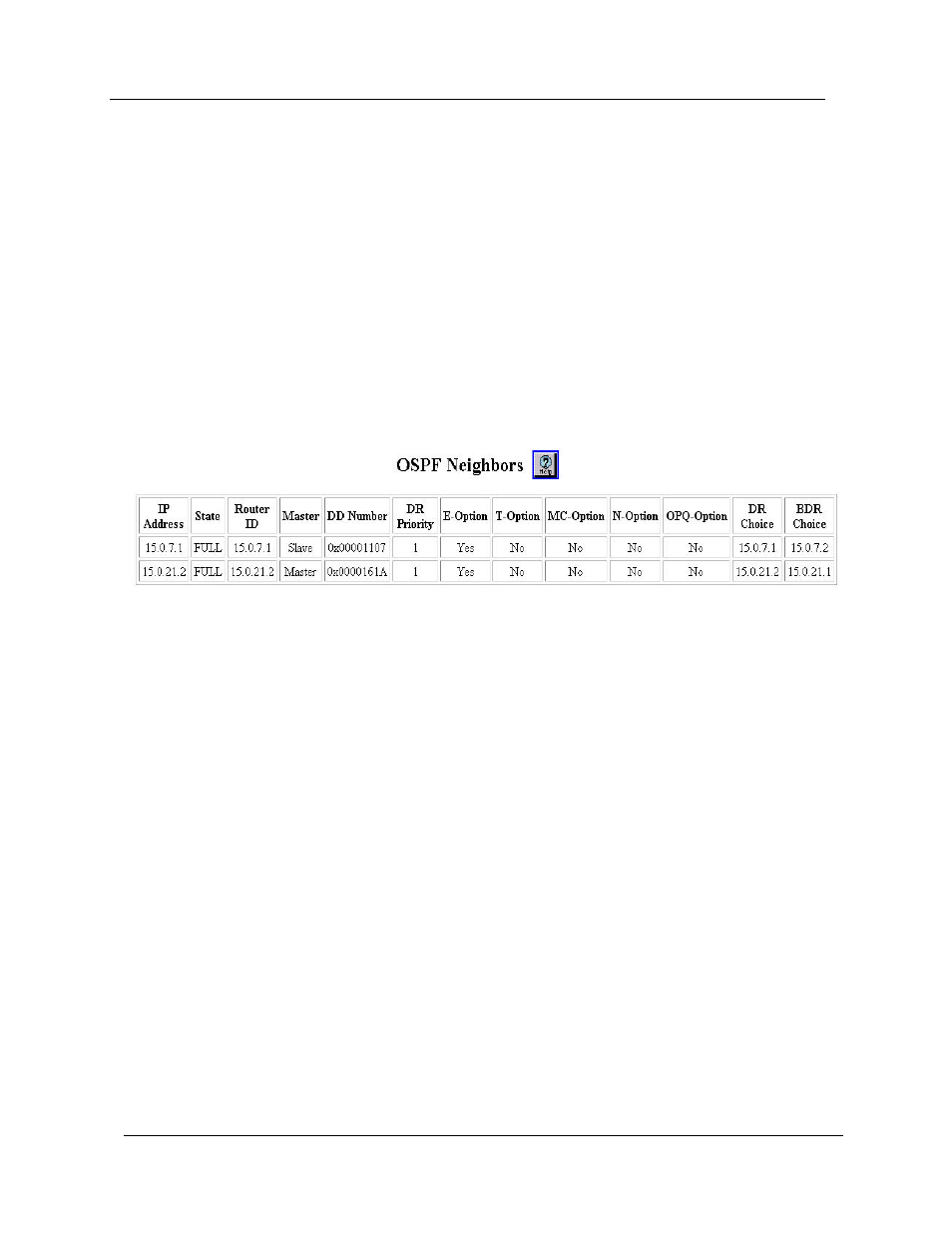

Figure 11-11. OSPF Neighbors Dialog Box
