Cajun P550/P880/P882 Switch User Guide
Configuring Port Parameters
5-15

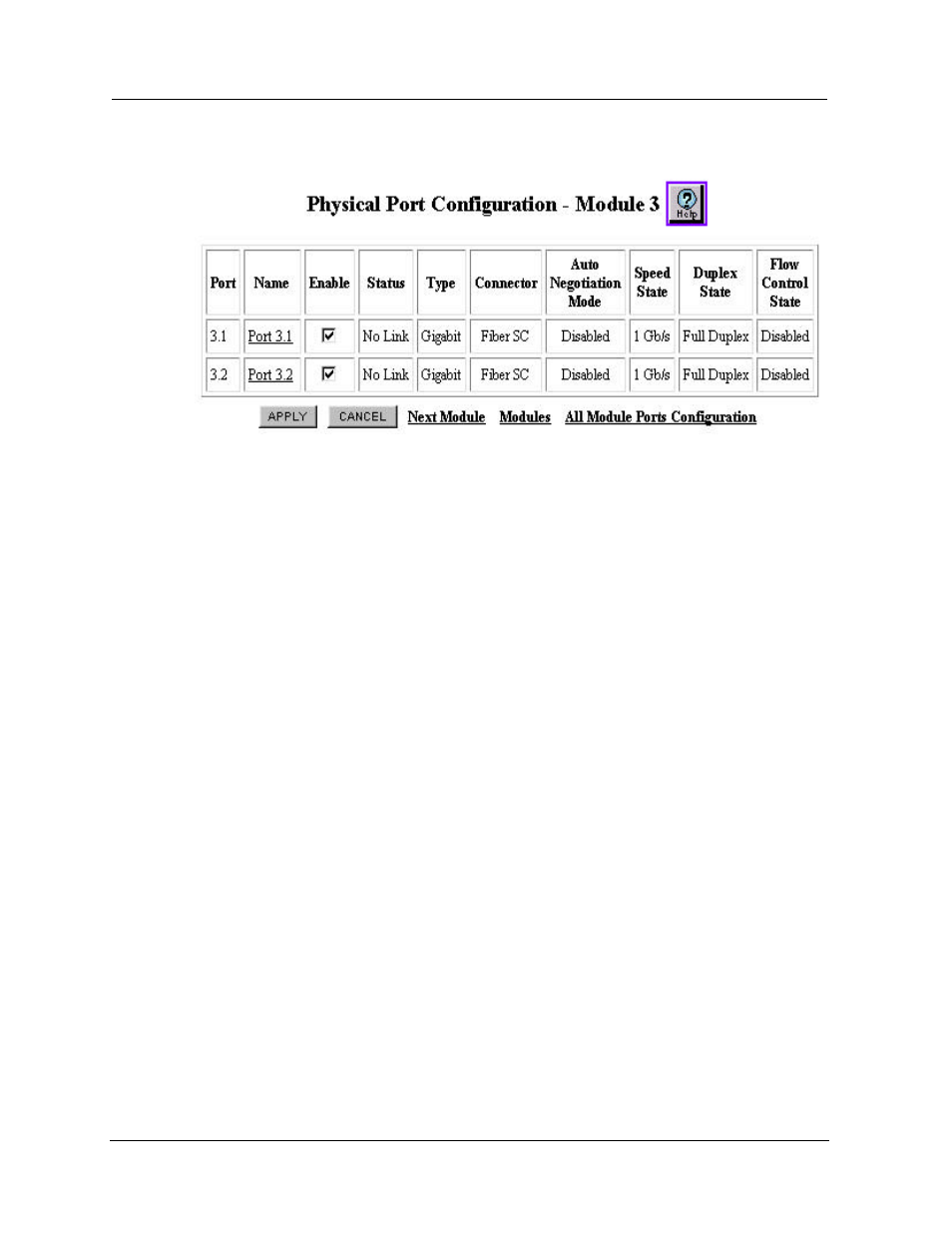

Figure 5-2. Gigabit Ethernet Module Physical Port Configuration
Dialog Box
3. Click the checkbox in the Enable column to Enable a port. A
checkmark displays.
*Note: If the port is already enabled (checkmark is
visible), click on the box to Disable the port
(checkmark vanishes).
4. Click APPLY to save your settings, or CANCEL to restore
previous settings.
5. Select the port name from the Name field. The Detailed
Physical Port Configuration dialog box opens
(Figure 5-3).
