4-18
Chapter 4
Cajun P550/P880/P882 Switch User Guide

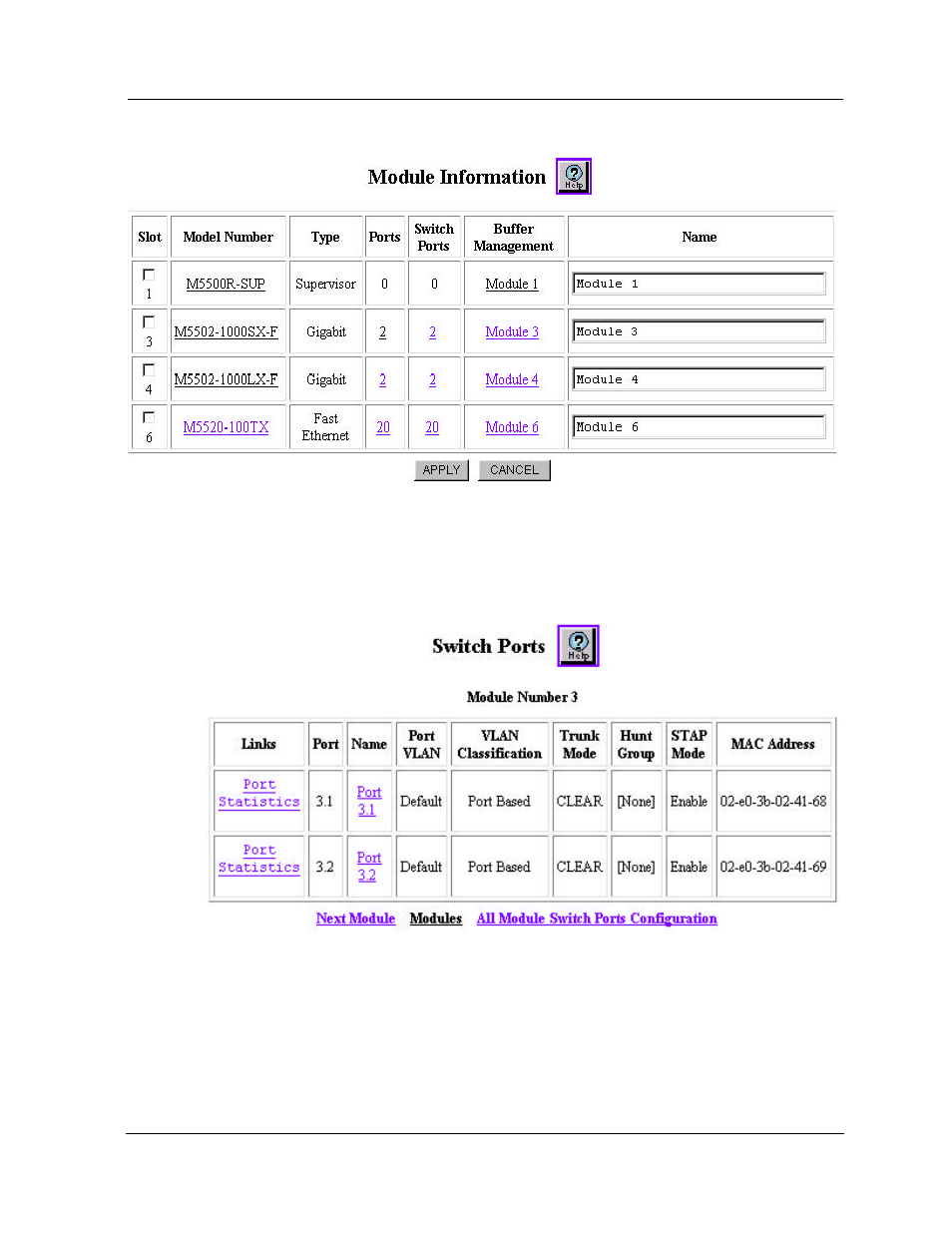

Figure 4-10. Module Information Dialog Box
2. Select the switch port number from the Switch Ports column.
The Switch Ports dialog box opens (Figure 4-11).
Figure 4-11. Switch Ports Dialog Box
3. Select the port number on which you want to disable
spanning tree from the Name column. The Switch Port
Configuration dialog box for that port opens (
(Figure 4-12).
