Cajun P550/P880/P882 Switch User Guide
Managing Intelligent Multicasting
16-29
Configuring/Viewing an LGMP Client
You can configure and view an LGMP client using either the web
agent or the CLI.
Enabling/
Viewing an
LGMP Client
Using the Web
Agent To enable an LGMP client and view its statistics using the web agent:
1. Select LGMP Server from the L2 > Intelligent Multicast group
on the web agent window. The LGMP Client Configuration
dialog box opens (Figure 16-12).

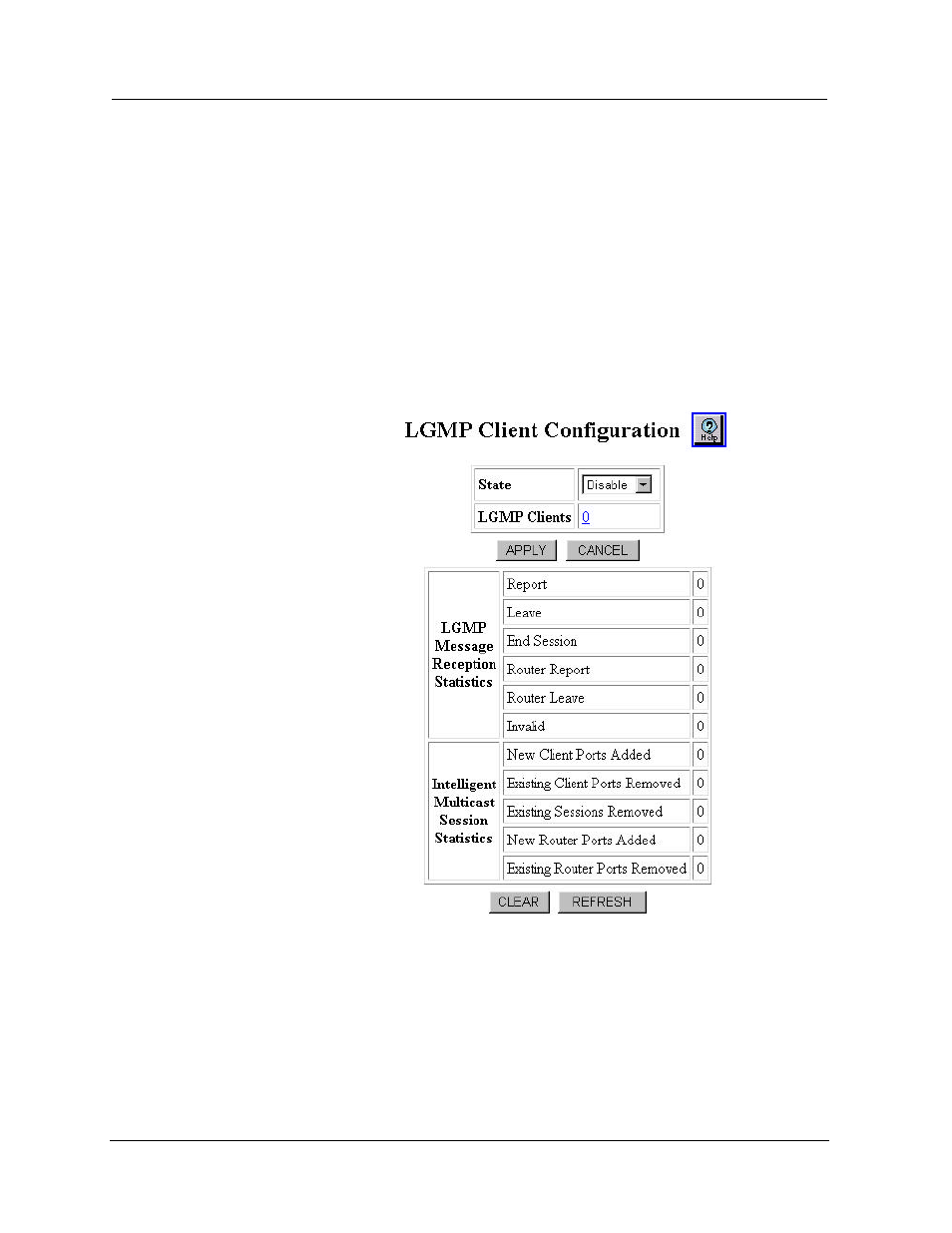

Figure 16-12. LGMP Client Configuration Dialog Box
*Note: You must enable intelligent multicasting on a
global basis to activate LGMP client configuration.
2. Select Enable from the State field pull-down menu, if it is not
already displayed.
3. Select Apply to complete the operation, or Cancel to ignore
the operation.
