Cajun P550/P880/P882 Switch User Guide
Configuring IPX Routing
12-9
Configuring an
IPX Interface
Using the CLI To create a new IPX interface using the CLI, enter the following
command in Configure mode:
cajun(configure)# interface
Refer to the Cajun™ P550™/P880/P882 Command Line Interface
Reference Guide for Version 5.0 for details about this command.
Creating IPX Static Routes
You can create IPX static routes using either the web agent or the
CLI.
Creating IPX
Static Routes
Using the Web
Agent To create IPX static routes using the web agent:
1. Select Static Routes from Routing > IPX > Configuration
group on the web agent window. The IPX Static Routes
dialog box opens (see Figure 12-3).

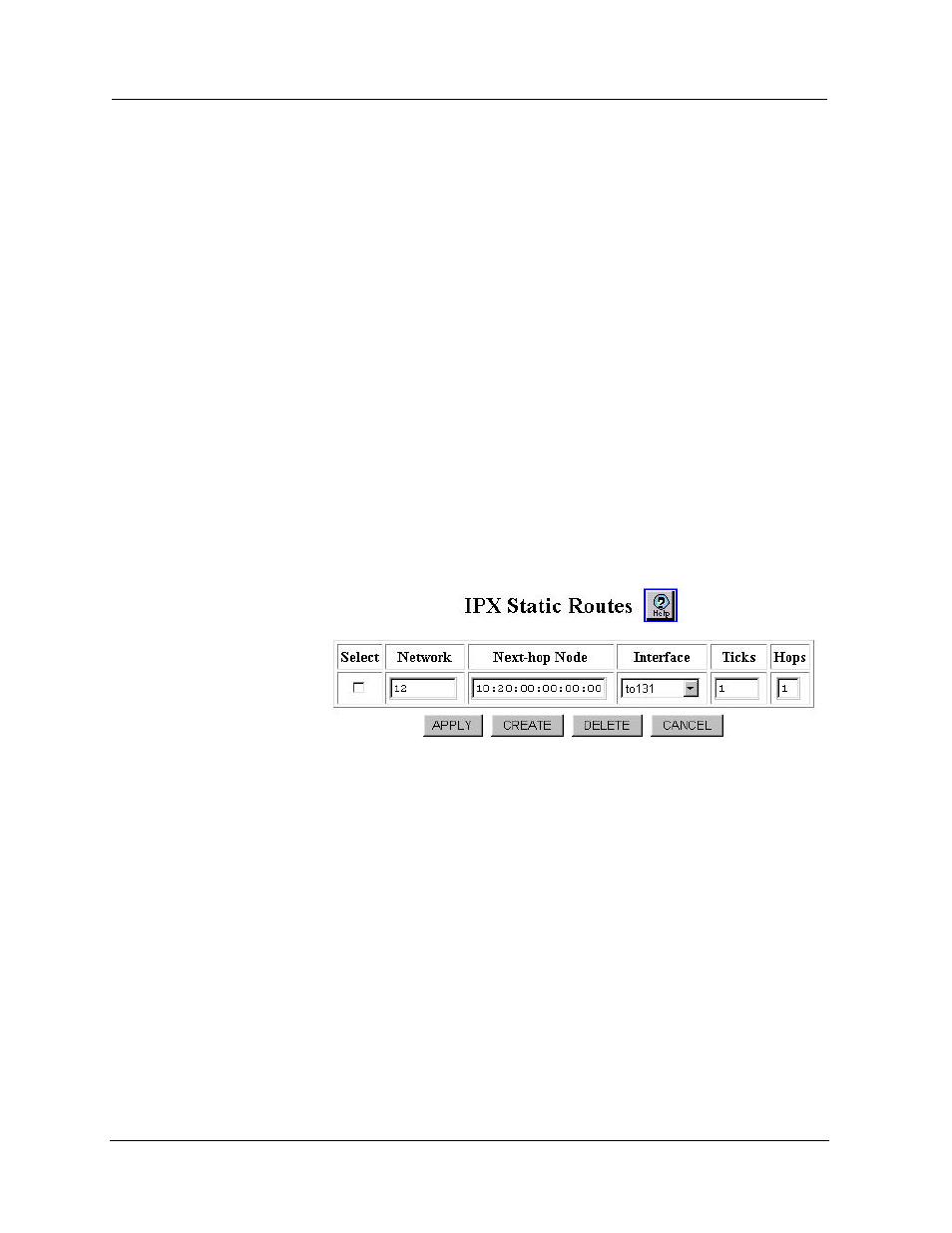

Figure 12-5. IPX Static Routes Dialog Box.
2. Select CREATE. The Add IPX Static Route dialog box opens
(see Figure 12-6).
