Avaya Cajun P882 - Manual (Page 120)

4-4
Chapter 4
Cajun P550/P880/P882 Switch User Guide
■
If you are using both the VLAN auto-learning feature and the
Binding Type Bind to Received, make sure that you set the
binding type before you set Autolearn to enable or else the port
may not be automatically added to the VLAN
■
VLAN #4095 is for internal use only and cannot be configured
by the user.
Creating a VLAN
To create a VLAN:
1. Select Configuration from the L2 Switching > VLANs group
on the Web Agent window. The VLAN Configuration dialog
box opens (Figure 4-1).

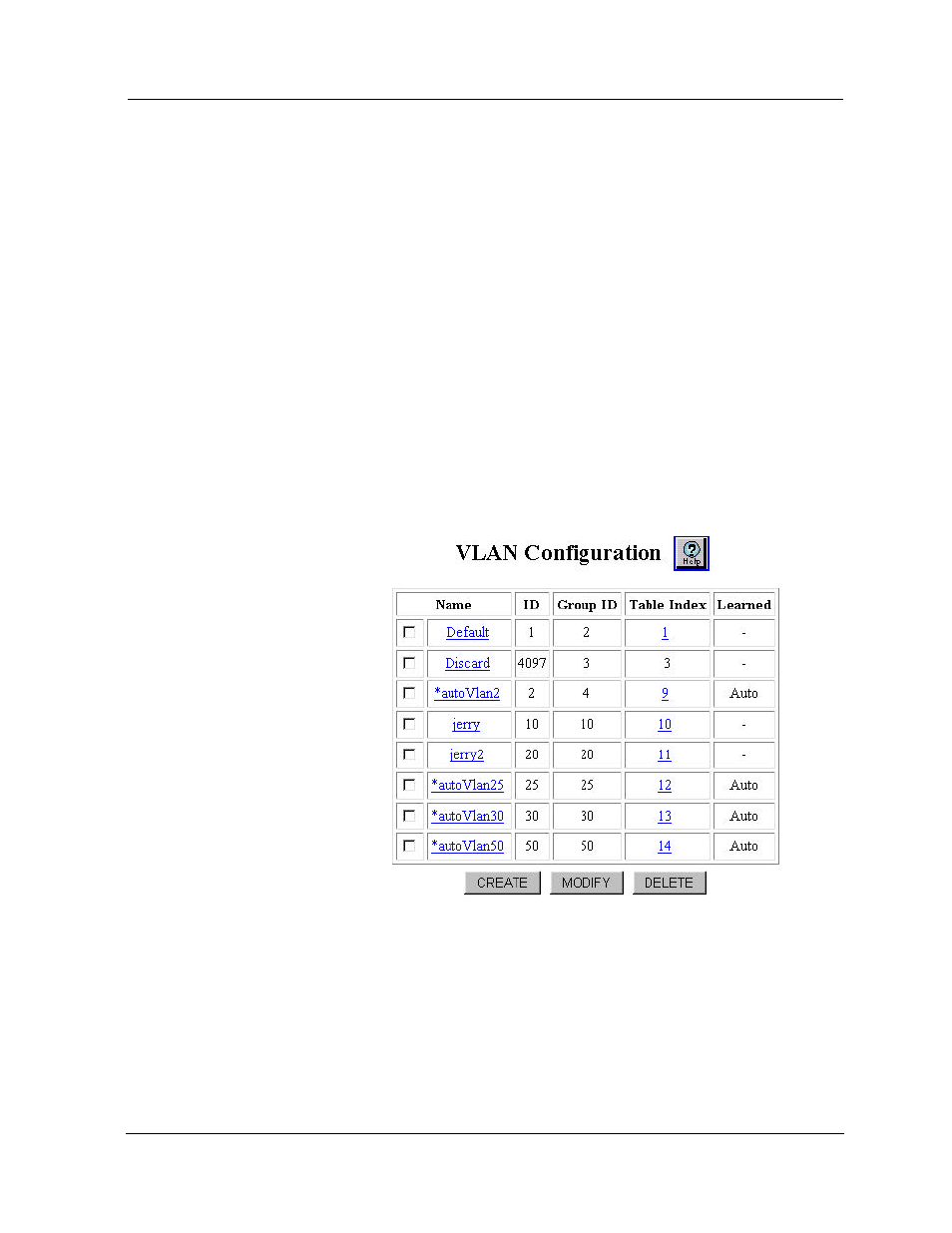

Figure 4-1. VLAN Configuration Dialog Box
