14-8
Chapter 14
Cajun P550/P880/P882 Switch User Guide
Creating IPX SAP Network Filters
You can create IPX SAP network filters using wither the web agent
or the CLI.
Creating IPX
SAP Network
Filters Using the
Web Agent To create IPX SAP Network filters using the web agent:
1. Select Net Filters from the Routing > IPX > SAP group on the
Web Agent window. The IPX SAP Net Filters dialog box
opens (Figure 14-4).

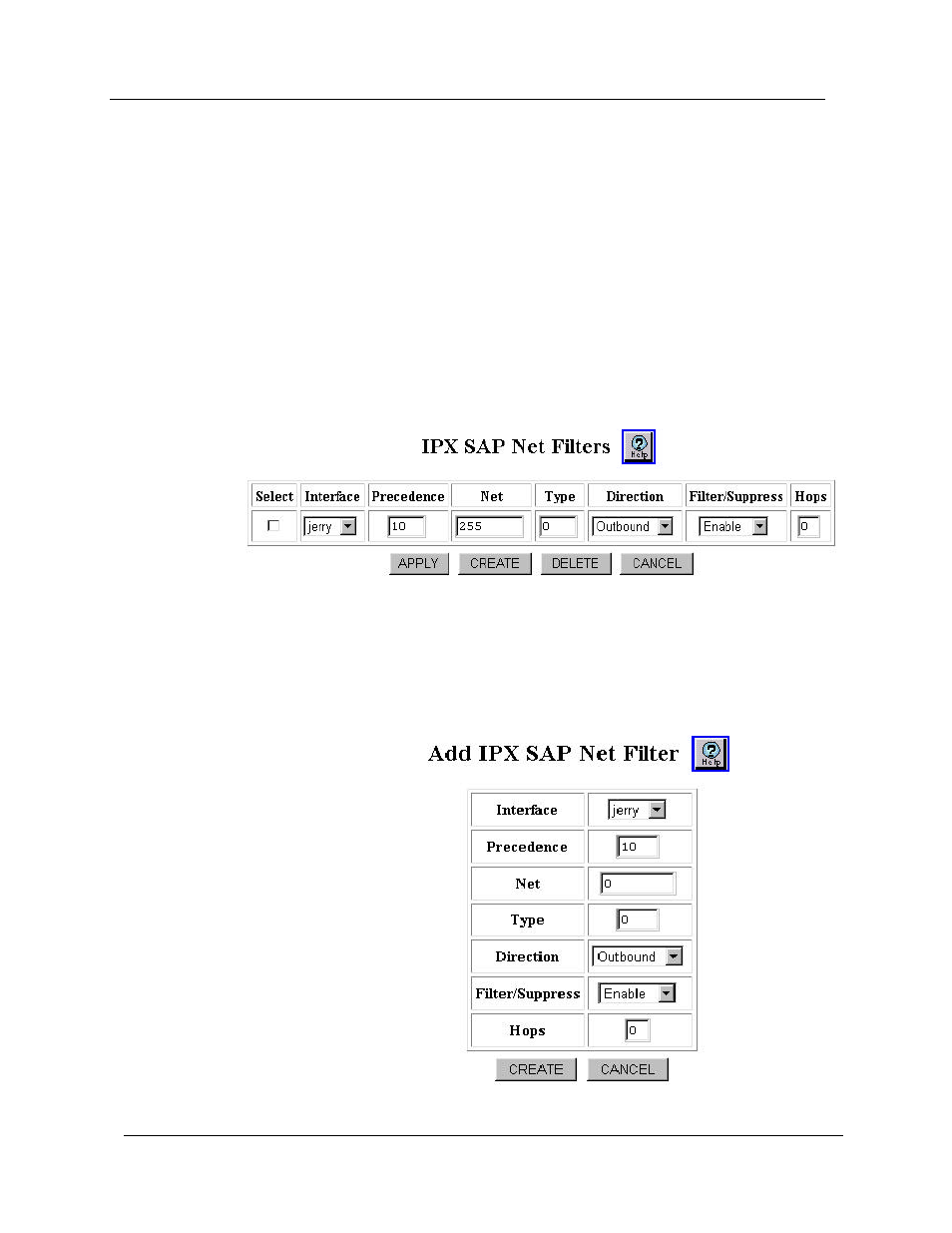

Figure 14-4. IPX SAP Net Filters Dialog Box
2. Select CREATE. The Add IPX SAP Net Filter dialog box opens
(Figure 14-5).
Figure 14-5. Add IPX SAP Net Filter Dialog Box
