AT-7500 and AT-WA7501 Installation and User’s Guide

85

Using Predefined Subtype Filters

You can configure the access point to pass or drop certain predefined
frame subtypes.

To configure predefined subtype filters

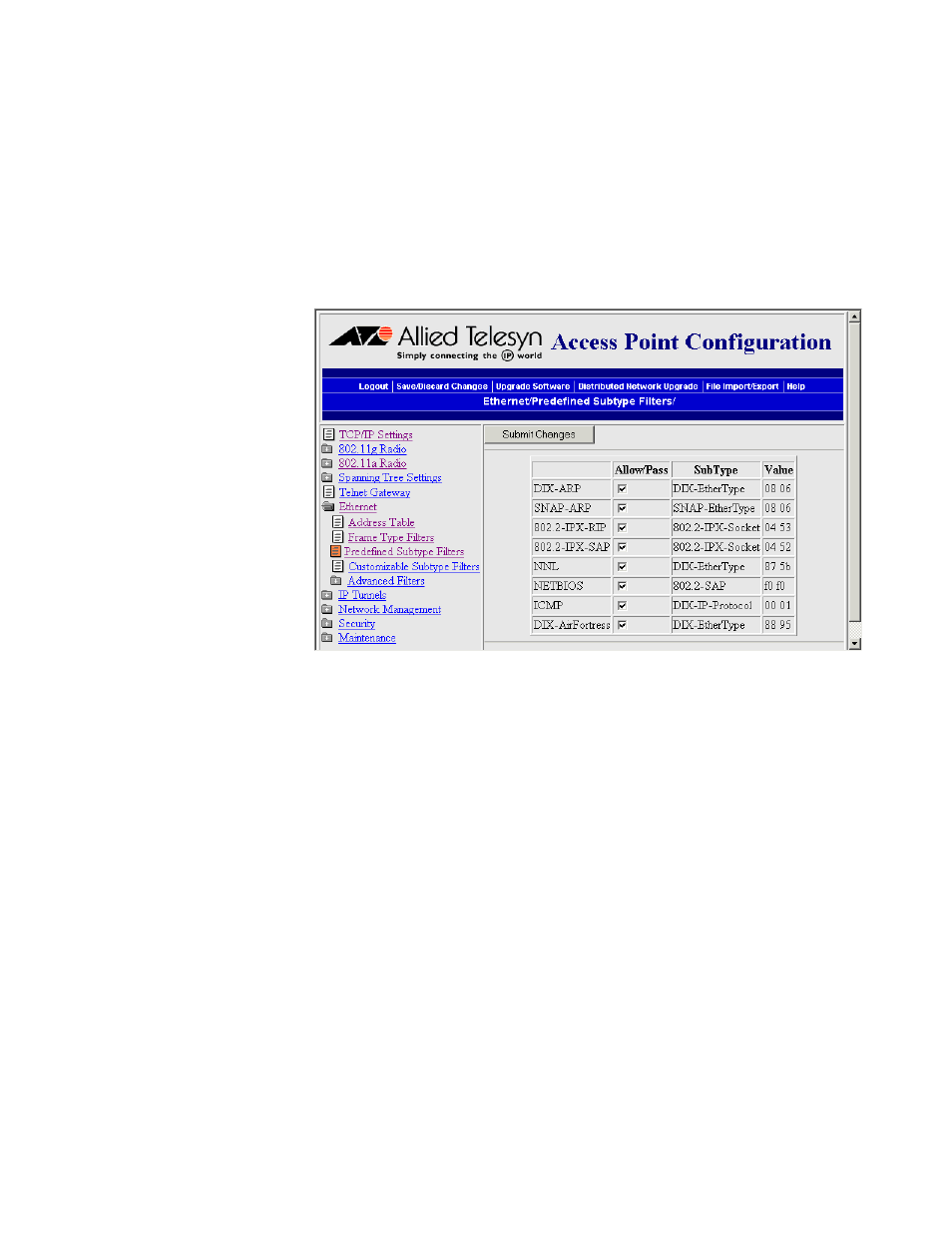

1. From the main menu, click Ethernet > Predefined Subtype Filters. The

Predefined Subtype Filters screen appears.

2. For each frame subtype field, check or clear the Allow/Pass check box

to configure if the frame subtypes are allowed to pass or are dropped.
If you check the check box, the frame subtype is allowed to pass.

3. Click Submit Changes to save your changes. To activate your

changes, from the menu bar click Save/Discard Changes, and then
click Save Changes and Reboot. For help, see “Saving Configuration
Changes” on page 45.

Customizing Subtype Filters

You can configure the access point to pass or drop certain customized
frame subtypes. You define the action, subtype, and value parameters:

Allow/Pass: Check or clear this check box. Check this check box to pass
all frames of the subtype and value. Clear this check box to drop all frames
of the subtype and value.

SubType: Selects the frame subtype you wish to configure. For help
setting the subtype and value, see the Table 7, ”Subtype Filter
Descriptions” on page 86.
