Chapter 2: Installing the Access Points

56

Note

All cables must be multimode, 62.5/125 µm.

Connecting to an

MT-RJ Network

To connect to an MT-RJ network, you need:

ˆ

a patch cord with a female MT-RJ connector to insert into the access
point’s male MT-RJ fiber optic port, and another female MT-RJ
connector to insert into the MT-RJ adapter.

ˆ

an adapter for connecting the patch cord to the MT-RJ network.

To connect to an MT-RJ network

1. Remove any cable protectors attached to the patch cord and adapter.

2. Connect the access point to your network as shown in the next

illustration.

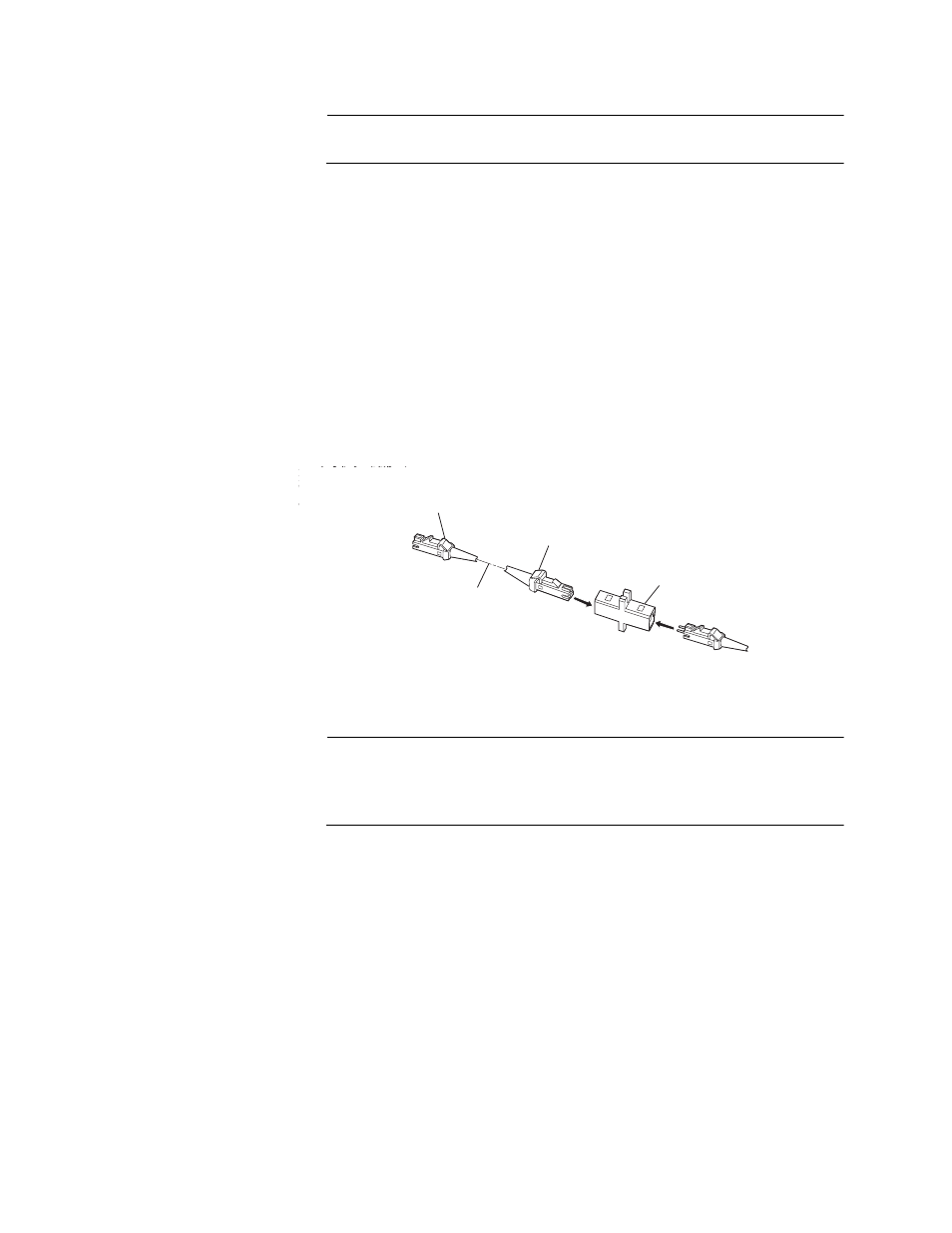

Figure 2. Connecting to an MT-RJ Network

Note

The patch cord shown above must connect to the access point with
a female MT-RJ connector. For details, see “Using and Purchasing
the Required Patch Cord and Adapter” on page 55.

Connecting to an

SC Network

To connect to an SC network, you need:

ˆ

a patch cord with a female MT-RJ connector to insert into the access
point’s male MT-RJ fiber optic port, and an SC connector to insert into
the SC adapter.

ˆ

an adapter for connecting the patch cord to an SC network.

To connect to an SC network

1. Remove any cable protectors attached to the patch cord and adapter.

To
MT-RJ
network

Female
MT-RJ connector

MT-RJ adapter

Female
MT-RJ connector

Patch cord

To access point
