Chapter 2: Installing the Access Points

58

Connecting to an

ST Network

To connect to an ST network, you need:

ˆ

a patch cord with a female MT-RJ connector to insert into the access
point’s male MT-RJ fiber optic port, and an ST connector to insert into
the ST adapter.

ˆ

an adapter for connecting the patch cord to the ST network.

To connect to an ST network

1. Remove any cable protectors attached to the patch cord and adapter.

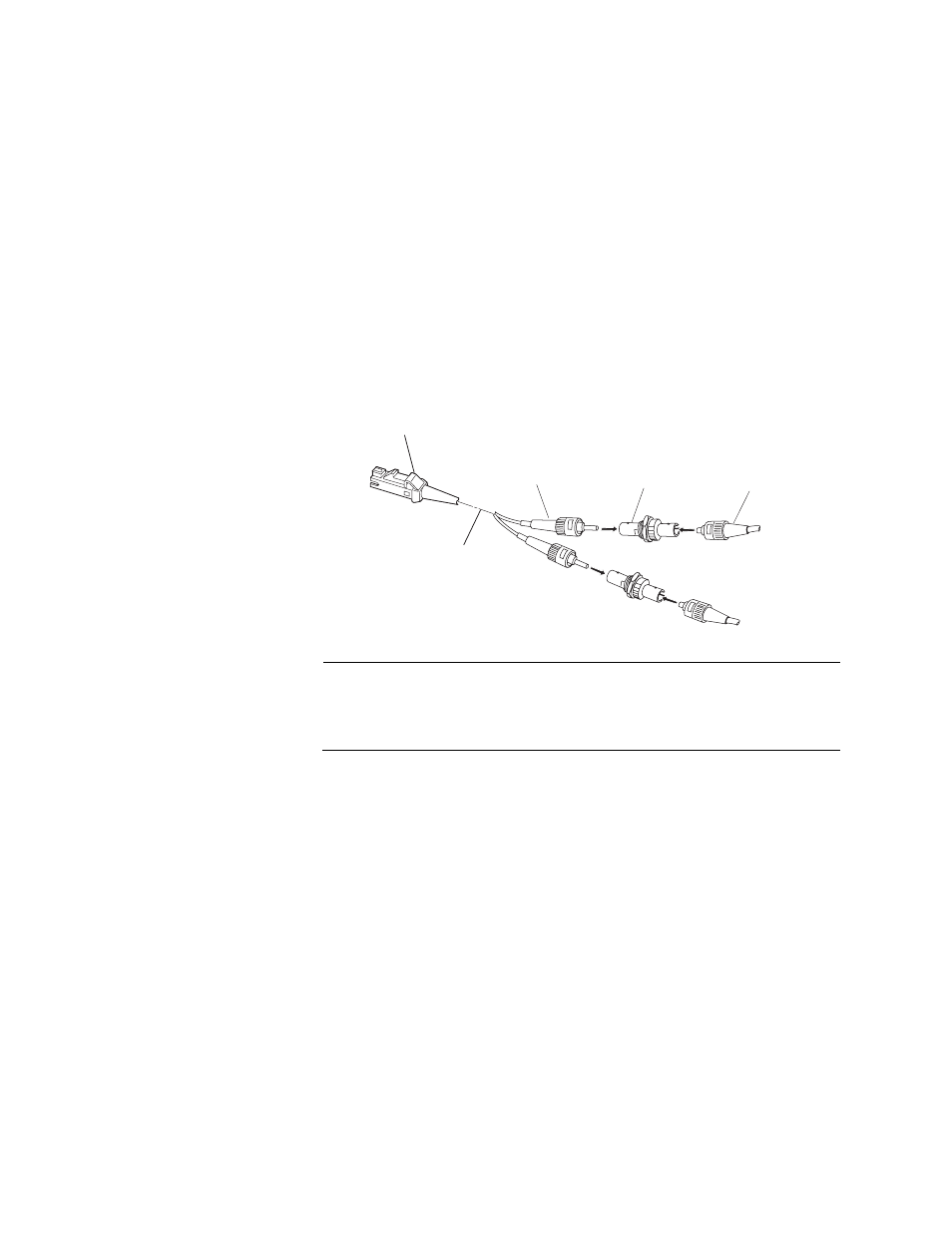

2. Connect the access point to your network as shown in the next

illustration.

Note

The patch cord shown above must connect to the access point with
a female MT-RJ connector. For details, see “Using and Purchasing
the Required Patch Cord and Adapter” on page 55
.

ST adapter

ST connector

ST connector

To
ST network

To
ST network

Female
MT-RJ connector

Patch cord

To access point
