of the subtype and value.
Subtype: Selects the frame subtype you wish to configure.
Value: The next table describes frame subtypes and their values. The
value must be two hex pairs. When a match is found between frame
subtype and value, the specified action is taken.
To customize subtype filters
1. From the main menu, click IP Tunnels > Customizable Subtype Filters.

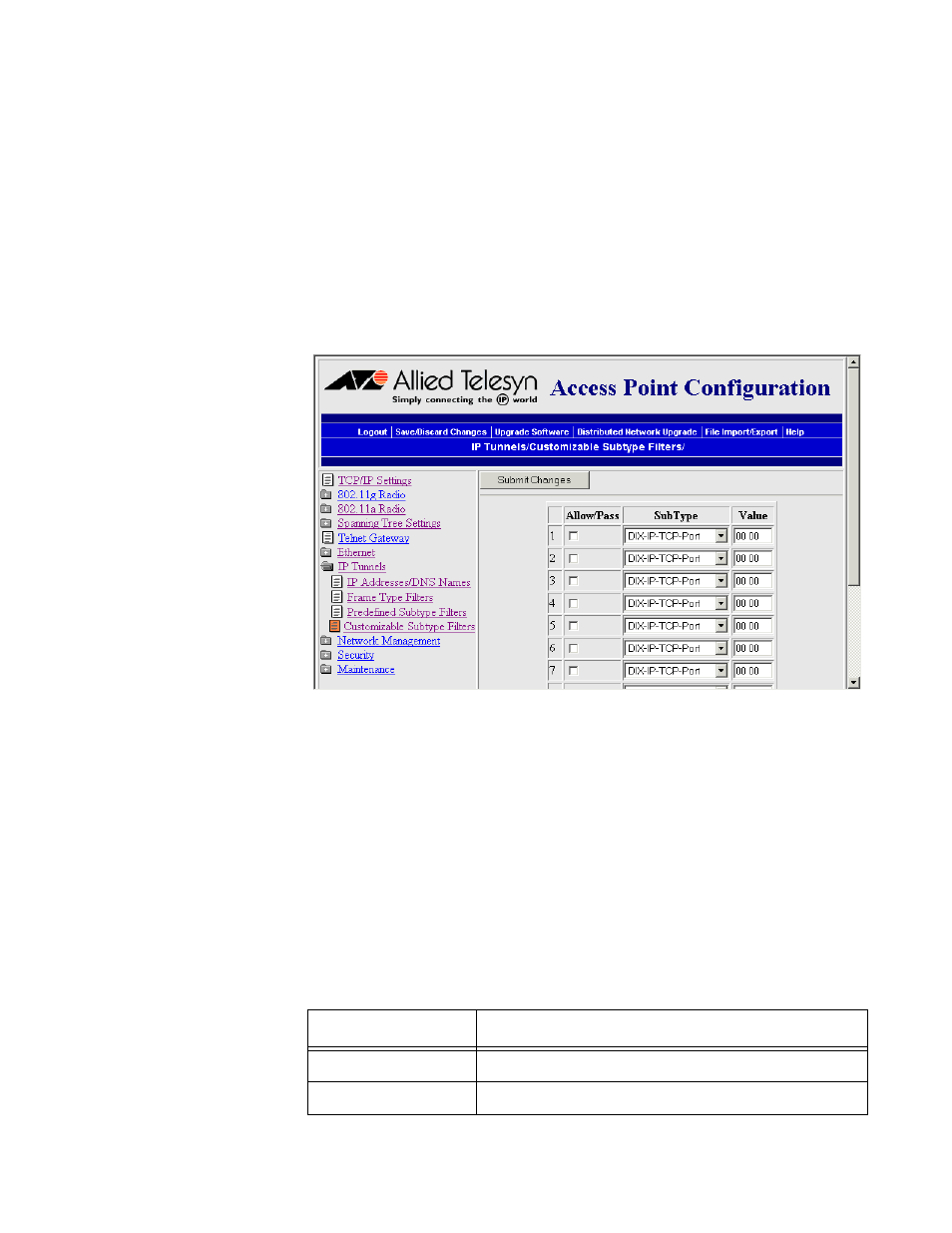

The Customizable Subtype Filters screen appears.
2. For each frame subtype field, check or clear the Allow/Pass check box
to configure if the frame subtypes are passed or are dropped. If you
check the check box, the frame subtype is allowed to pass.
3. In the SubType field, choose the customizable frame subtype. For
help, see the next table.
4. In the Value field, enter the two hex pairs. For help, see the next table.
5. Click Submit Changes to save your changes. To activate your
changes, from the menu bar click Save/Discard Changes, and then
click Save Changes and Reboot. For help, see “Saving Configuration
Changes” on page 45.
Table 5. Subtype Filter Descriptions
Subtype Value
DIX-IP-TCP-Port Port value in hexadecimal.
DIX-IP-UDP-Port Port value in hexadecimal.
