AT-S101 Management Software User’s Guide
87
If there will be more than one aggregate trunk on a switch, each trunk may
require a separate aggregator or it may be possible to combine them into a
common aggregator. The determining factor is whether the trunks are
going to the same device or different devices. If the trunks are going to the
same device, each must have its own aggregator. If they are going to
different devices, the trunks can be members of a common aggregator. In
the latter situation, the switch differentiates the individual aggregate
trunks.

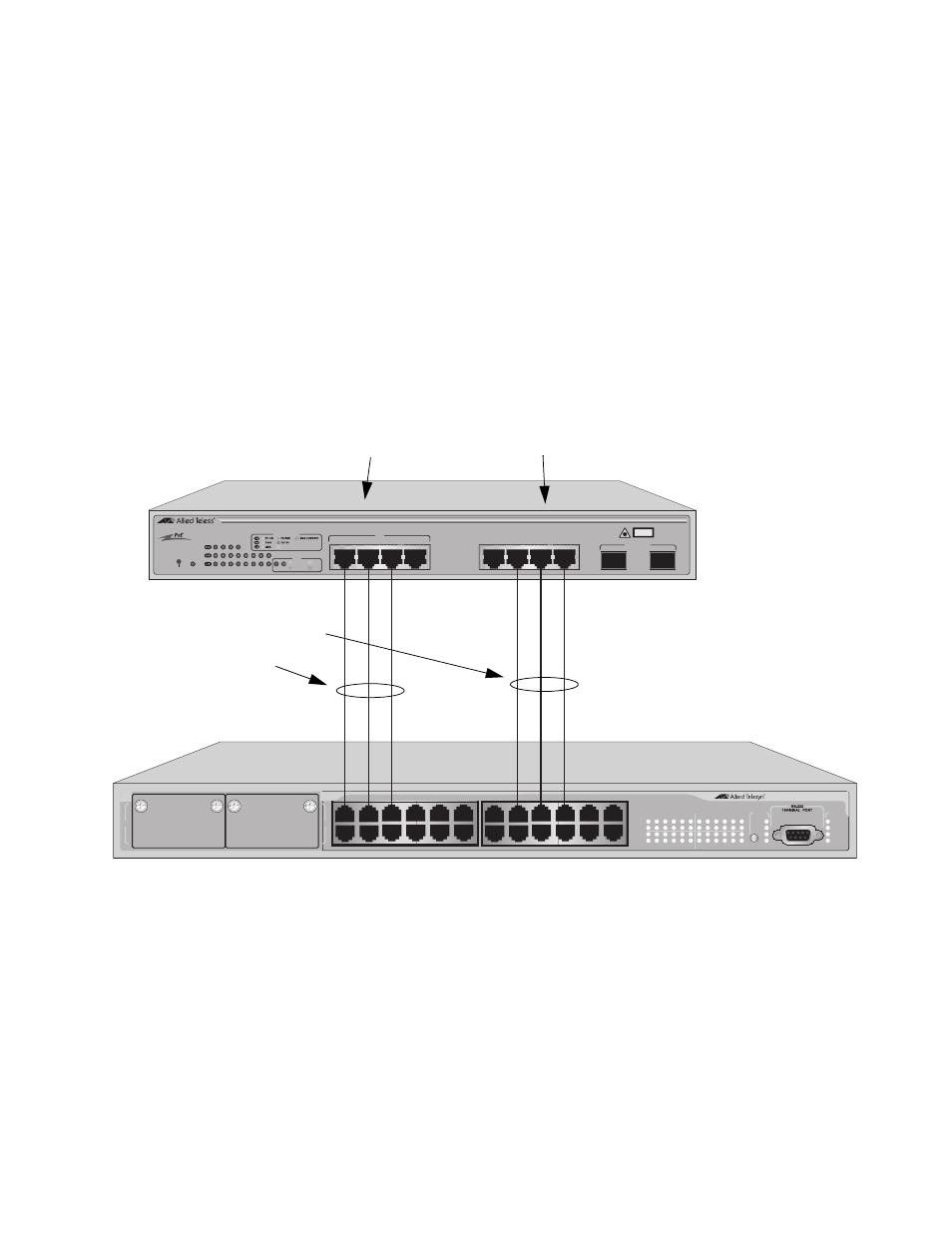

Here are two examples. Figure 26 illustrates the AT-GS950/8POE switch
with two LACP trunks, each containing three links. Because both
aggregate trunks go to the same 802.3ad-compliant device, in this case
another Gigabit Ethernet switch, each trunk requires a separate
aggregator.
Figure 26. Example of Multiple Aggregators for Multiple Aggregate Trunks
1384
AT-GS950/8POE
8 Port 10/100/1000Mbps + 2 SFP Combo WebSmart Switch
SFP
SFP
CLASS 1
LASER PRODUCT
1
2
3
4
5
6
7R
7
8
8R
POWER
RESET
1
2
3
4
5
6
7R
8R
7
8
POE
100/1000Base-X
PORT ACTIVITY
ACT
1000 LINK
100 LINK
ACT
ACT
SFP
1
3
5
7
9
11
13
15
17
19
21
23
2
4
6
8
10
12
14
16
18
20
22
24
LINK
MODE
LINK
MODE
COL
100
FULL
ACT
FAULT
RPS
MASTER
PWR
MODE
1
3
5
7
9
11
2
4
6
8
10
12
13
15
17
19
21
23
14
16
18
20
22
24
STATUS
26
25
AT-8524M
Fast Ethernet Switch
Ports 1 - 3
in Aggregator 1
Ports 6-8
in Aggregator 2
AT-GS950/8POE
Switch
802.3ad-compliant
Ethernet Switch
Aggregate Trunks
in Different Aggregators
