AT-S101 Management Software User’s Guide
171
Configuring the RADIUS Client
To configure the RADIUS client, perform the following procedure:
1. From the menu on the left side of the page, select the Security folder.
The Security folder expands.
2. From the Security folder, select RADIUS.
The RADIUS Page is shown in Figure 52.

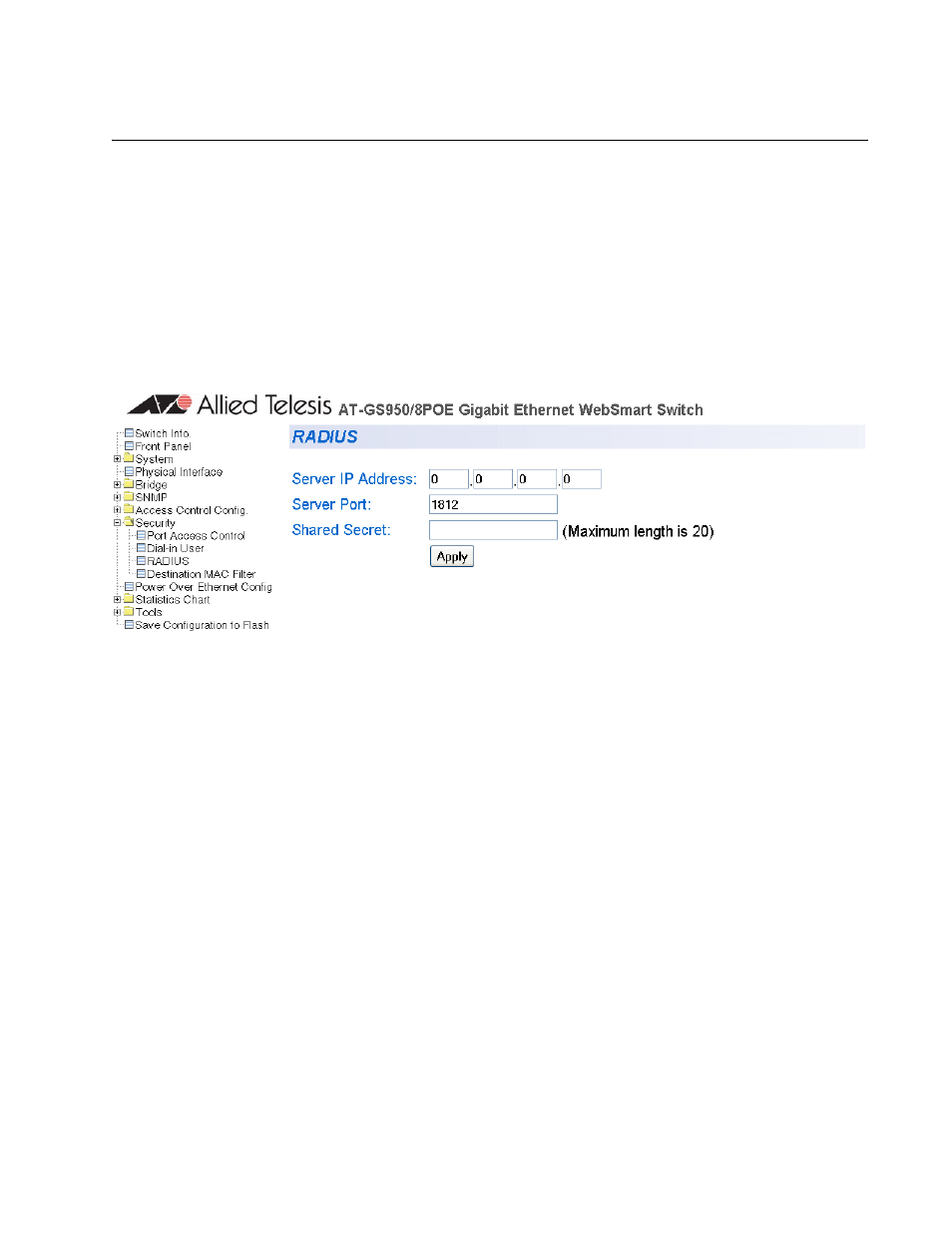

Figure 52. RADIUS Page
3. To enter the RADIUS server’s IP address, enter the address in the
Server IP Address field.
4. To specify the server’s encryption key, click the Shared Secret field
and enter the encryption key.
5. To select the port number that you want to assign to UDP, type in the
port number in the Server Port field.
You may only assign one port number to this parameter. The default
value is 1812.
6. Click Apply to save your changes.
7. From the menu on the left side of the page, select Save Configuration
to Flash to save your changes.
