Chapter 17: Power over Ethernet (PoE)
182
Setting Power over Ethernet
This procedure explains how to set the POE feature on the AT-GS950/
8POE switch.
To set the POE feature, perform the following procedure:
1. From the menu on the left side of the page, select the Power Over
Ethernet Page.
The Power Over Ethernet Configuration Page is shown in Figure 55.

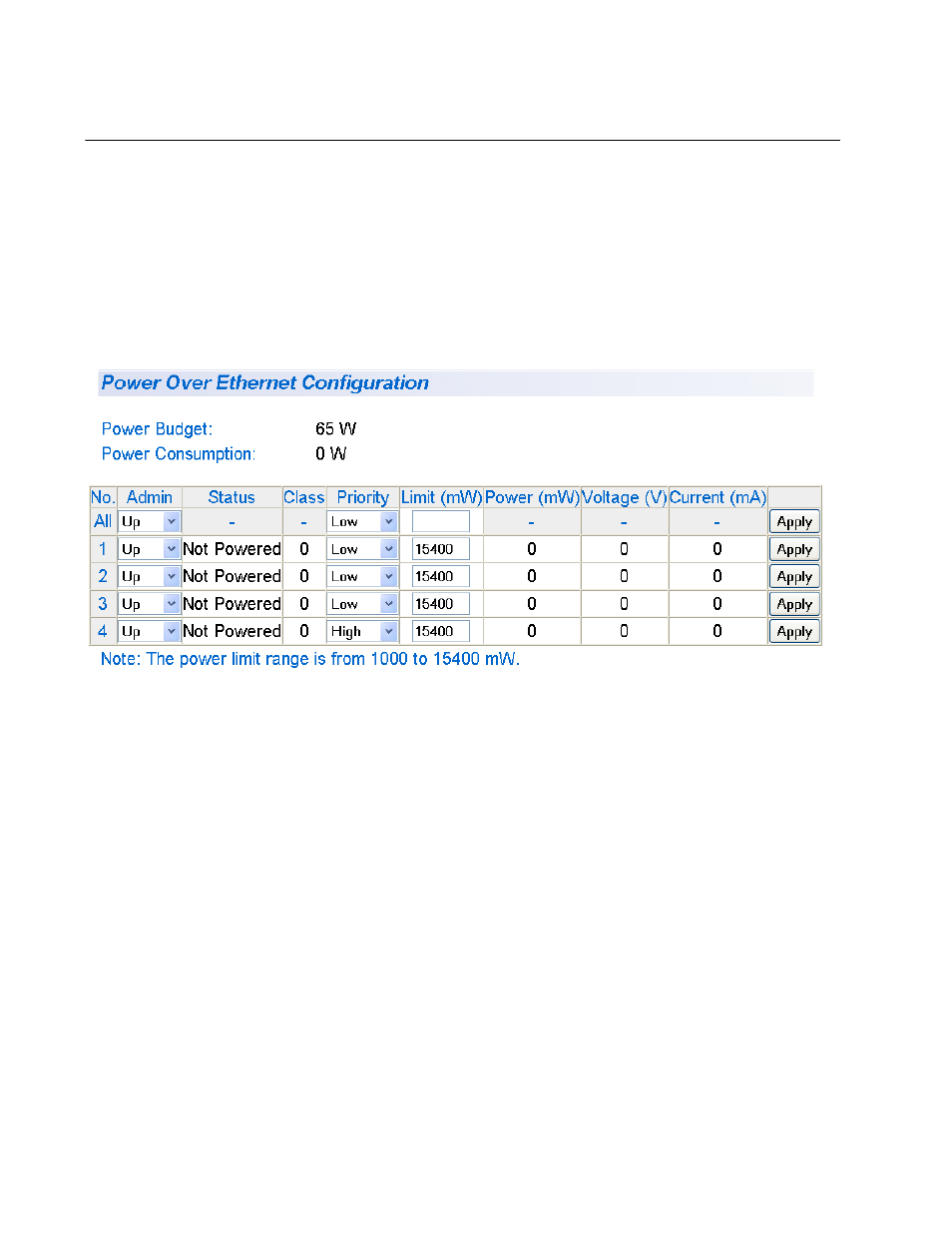

Figure 55. Power Over Ethernet Configuration Page
2. To change the setting of the Admin field, select the pull-down menu
next to ports 1 through 4. Choose from the following options:
Up
Indicates the PoE port is available to be connected to a powered
device. This is the default setting.
Down
Indicates the PoE port is not available to be connected to a powered
device.
Then click Apply. You can use the option next to the ALL row to set all
of the ports to the same setting.
