AT-S101 Management Software User’s Guide
51
Creating a Tagged VLAN
To create a tagged VLAN, perform the following procedure:
1. From the menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select Tagged VLAN.

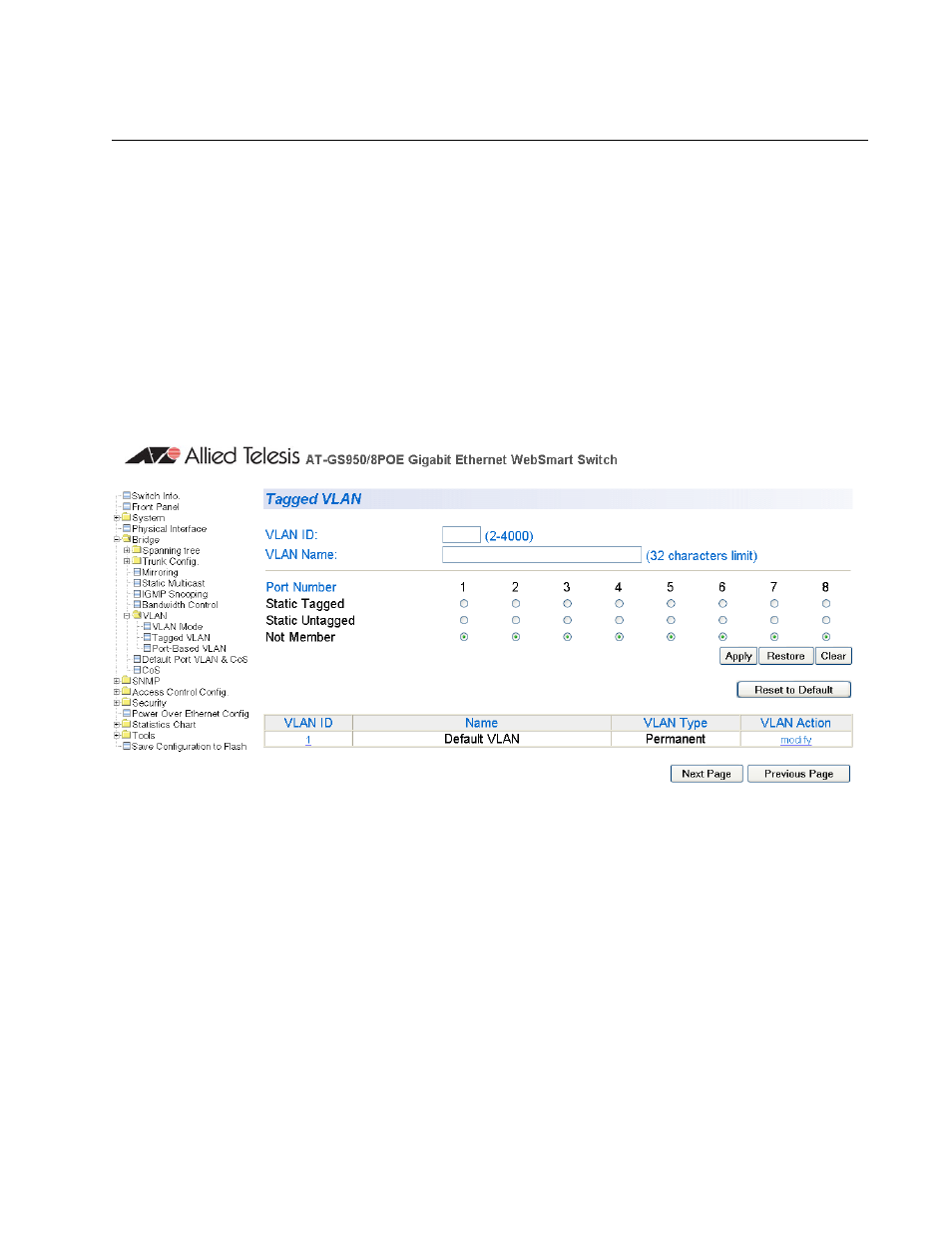

The Tagged VLAN Page is shown in Figure 16
Figure 16. Tagged VLAN Page
4. To assign a VLAN ID, type in a VLAN ID in the VLAN ID field.
Choose a value between 2 and 4,000. You can configure up to 200
tagged VLANs.
5. To assign a name to the VLAN, type in a name in the VLAN Name
field.
Enter a value of up to 32 characters.
6. To assign ports to the VLAN, click on the port numbers labeled either
Static Tagged or Static Untagged. Then click Apply.
By default, all the ports are assigned to the Not Member category.
