Allied Telesis AT-S101 - Manual (Page 34)

Chapter 2: Basic Switch Parameters
34
Setting the User Interface Configuration
This procedure explains how to adjust the user interface and security
features on the switch. With this procedure you can:
ˆ Enable an SNMP Agent. To configure the SNMP feature, see Chapter
8, “Simple Network Management Protocol (SNMP)” on page 99.
ˆ Enable and disable the web server.
To set the switch’s user interface configuration, perform the following
procedure:
1. From the menu on the left side of the page, click the System folder.
The System folder expands.
2. From the System folder, select User Interface.
The User Interface Page is shown in Figure 10.

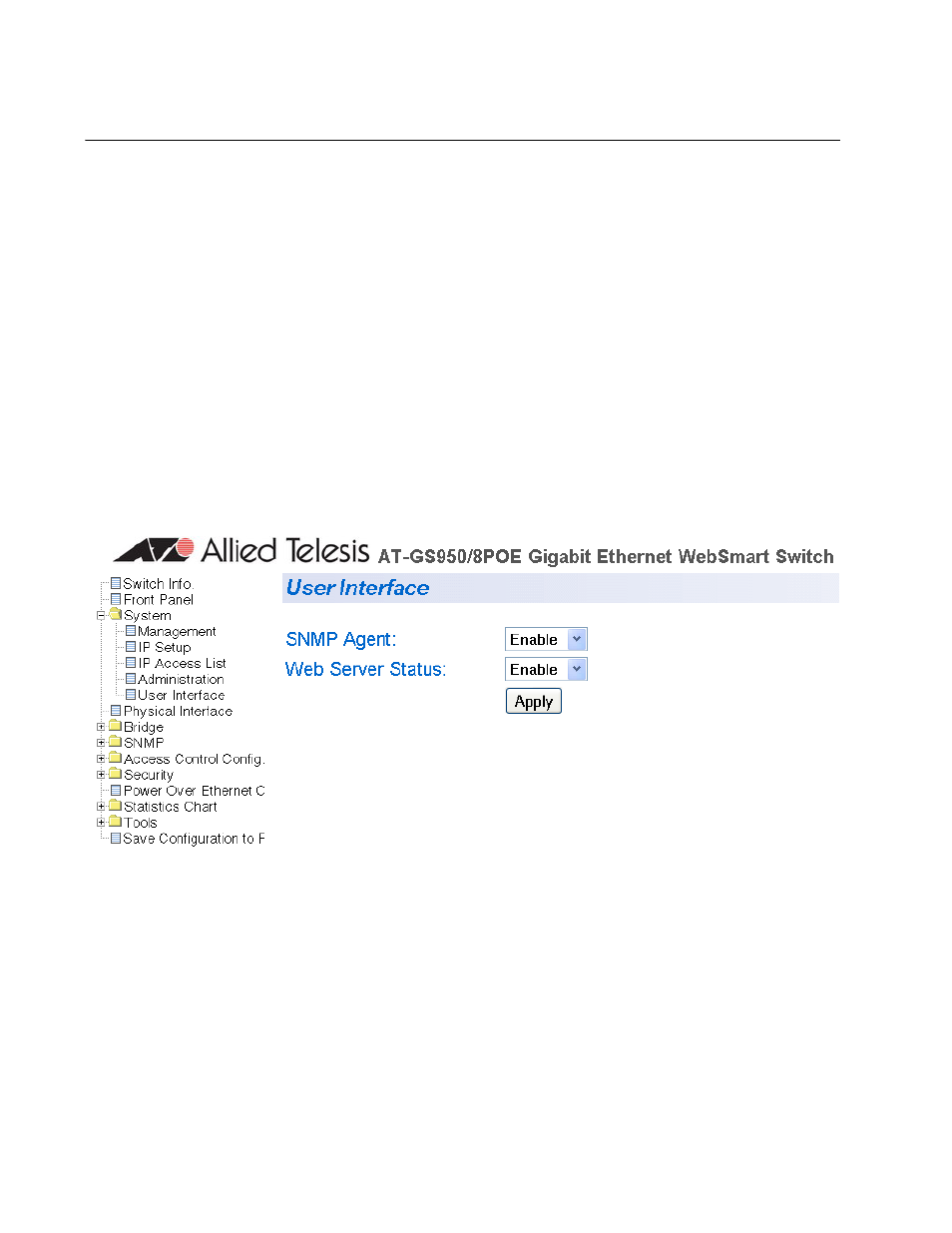

Figure 10. User Interface Page
3. To enable or disable an SNMP agent, do the following:
a. Click the SNMP Agent parameter and choose Enable or Disable
from the list. The default is Enable. When you enable this
parameter, the SNMP agent is enabled.
b. Click Apply.
