AT-S101 Management Software User’s Guide
199
Creating Profile Action
The procedure in this section allows you to create a profile action for
DSCP and CoS. This is an optional task. For more information about these
parameters, see “ACP Components” on page 197.
To create a profile action, perform the following procedure:
1. From the menu on the left side of the page, select the Access Control
Configuration folder.
The Access Control Configuration folder expands.
2. From the Access Control Configuration folder, select Profile
Action.
The Create Profile Action Page is displayed. See Figure 59.

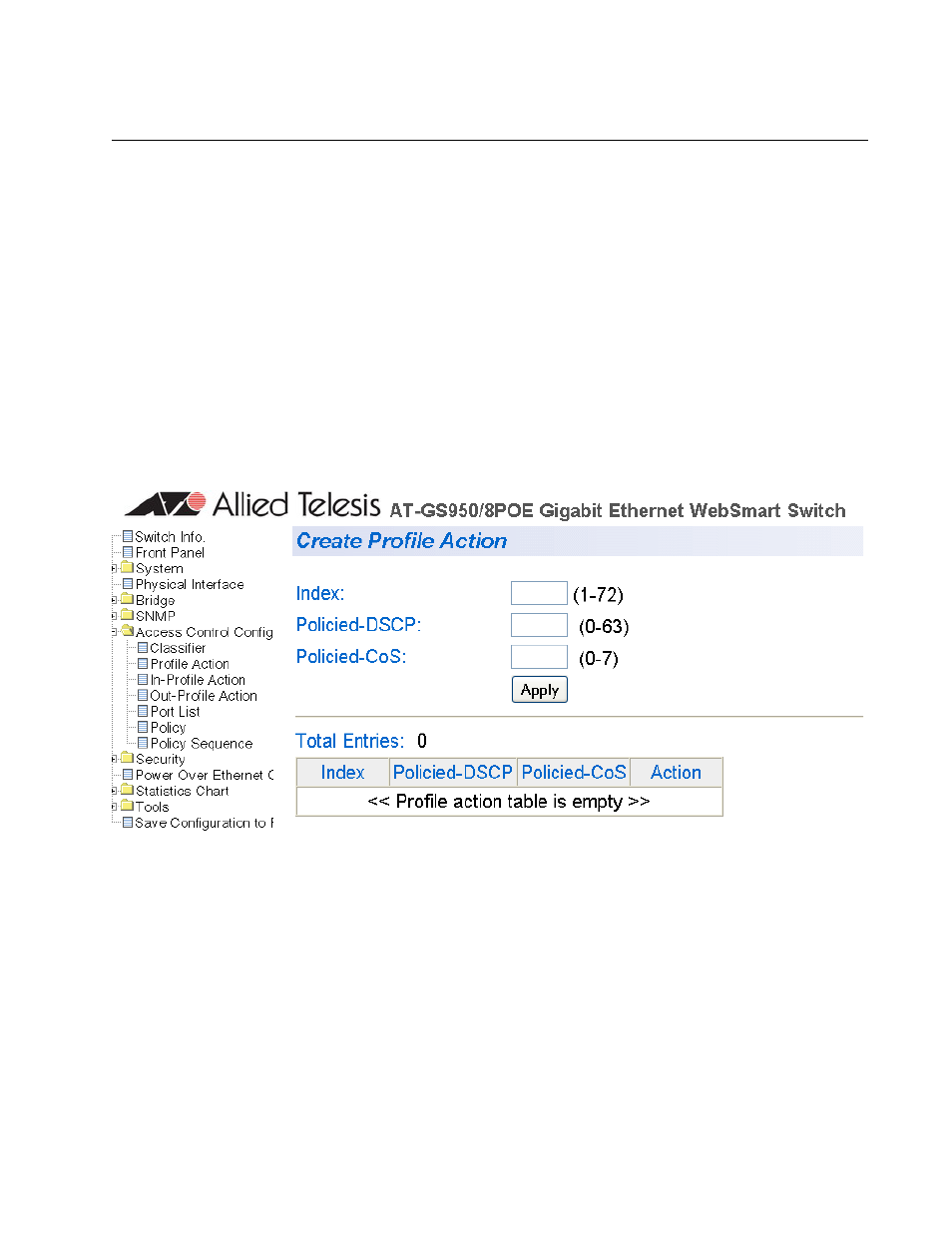

Figure 59. Create Profile Action Page
3. To set a unique numeric identifier for the profile action, select a value
between 1 and 72 in the Index field.
4. To set the policied DSCP value for this profile, select a value between
0 and 63 in the Policied-DSCP field.
This value indicates the class of service to which packets belong. For
more information about DSCP, see “DSCP (DiffServ Code Point)” on
page 189.
