Chapter 13: Spanning Tree and Rapid Spanning Tree Protocols
148
Configuring RSTP Port Settings
This section contains the following topics:
ˆ “Configuring the Basic RSTP Port Settings,” next
ˆ “Configuring the Advanced RSTP Port Settings” on page 150
Configuring the
Basic RSTP Port
Settings
To configure the basic RSTP port settings, perform the following
procedure:
From the menu on the left side of the page, select Bridge.
The Bridge folder expands.
5. From the Bridge folder, select the Spanning tree folder.
6. From the Spanning tree folder, select the RSTP Basic Port folder.
The RSTP Basic Port Configuration Page is shown in Figure 46.

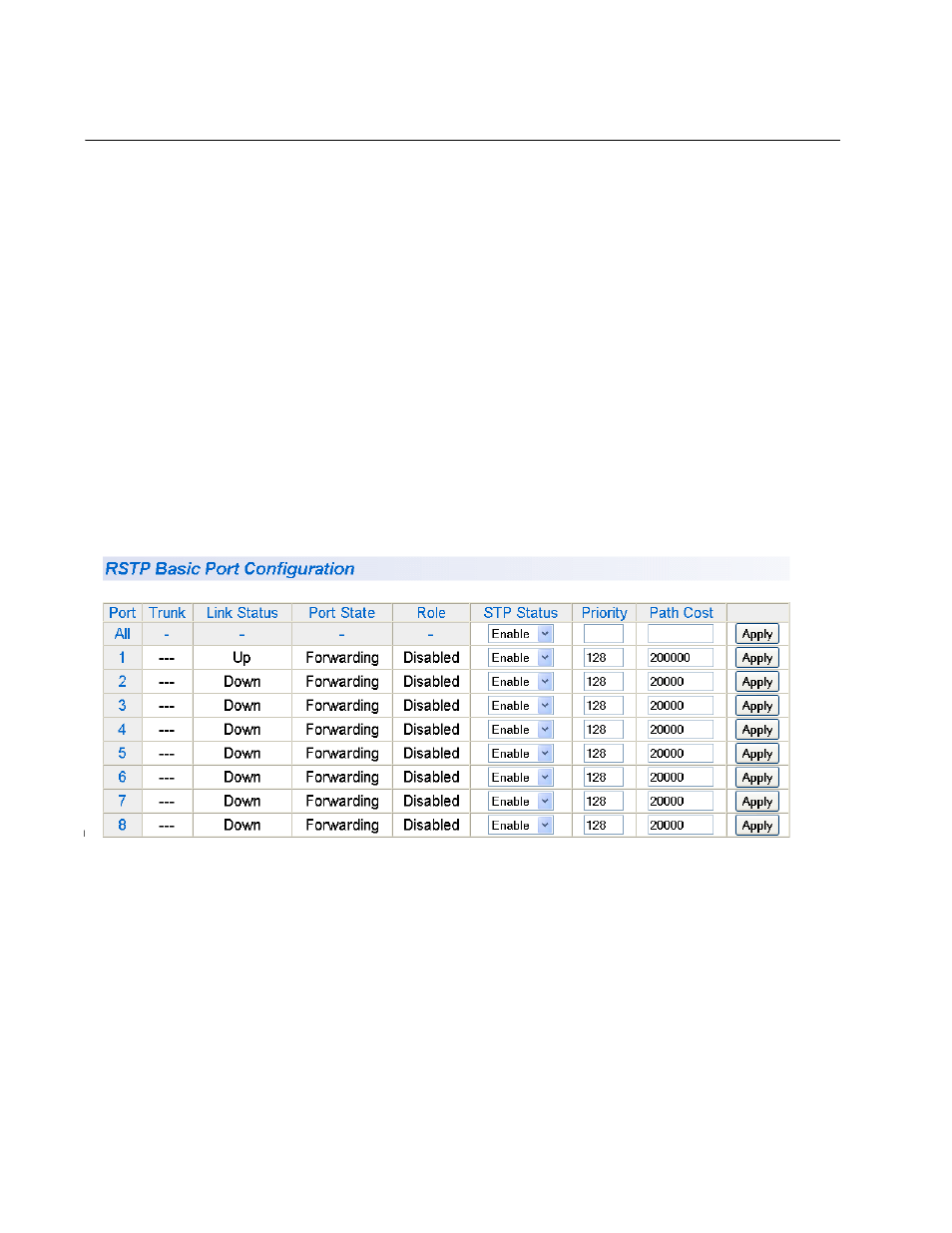

Figure 46. RSTP Basic Port Configuration Page
This page displays the following information about the ports:
Port
Indicates ports 1 through 8. Use the All row to apply the same settings
to the STP Status, Priority, and Path Cost fields to ports 1 through 8.
Trunk
Indicates the trunk assignment of a port.
