Displaying traffic comparison statistics – Allied Telesis AT-S101 User Manual
Page 221
AT-S101 Management Software User’s Guide
221
Displaying Traffic Comparison Statistics
To display traffic comparison statistics, perform the following procedure:
1. Select the Statistics Chart folder.
The Statistics Chart folder expands.
2. From the Statistics Chart folder, select Traffic Comparison.

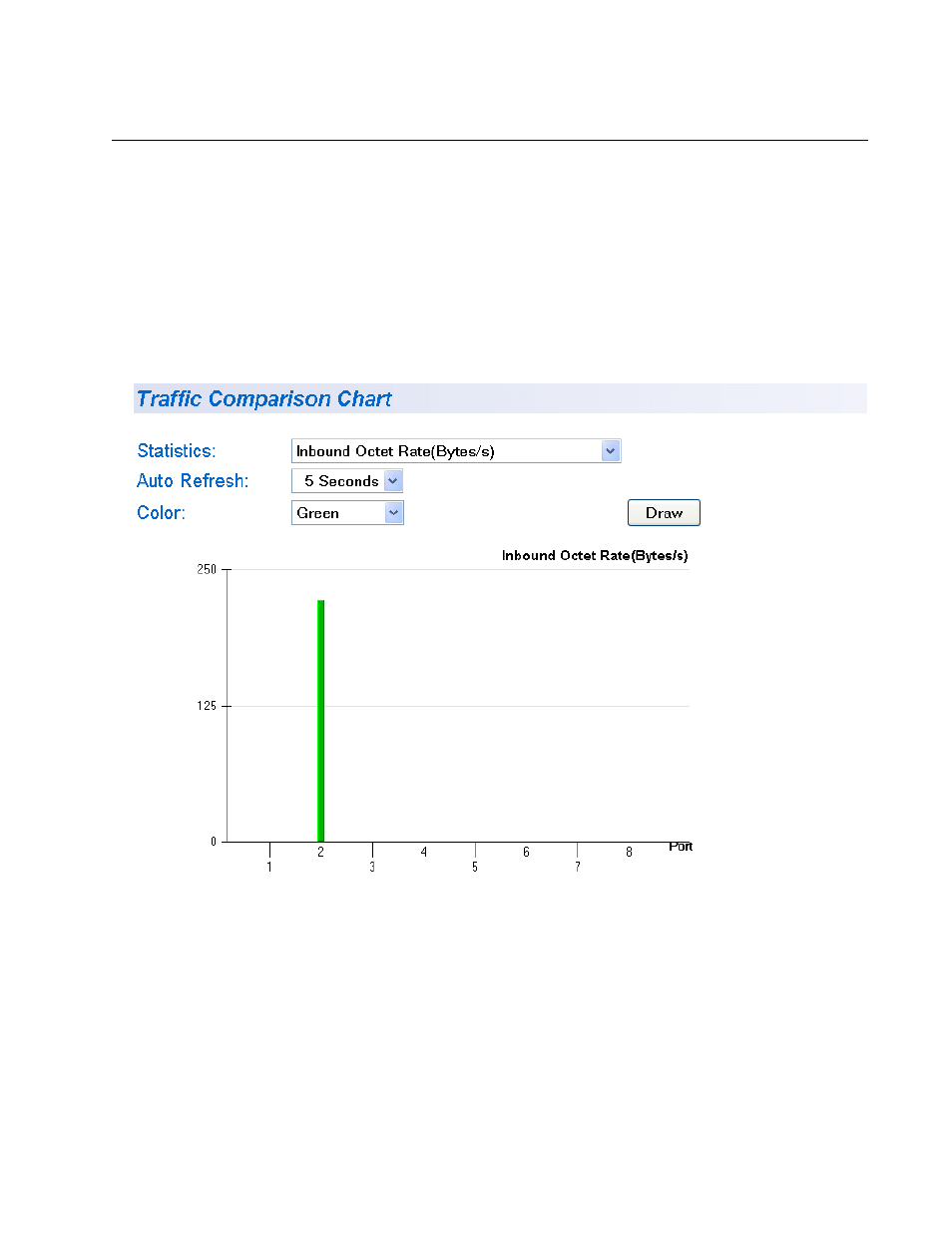

The Traffic Comparison Page opens as shown in Figure 70.
Figure 70. Traffic Comparison Page
