Chapter 8: Simple Network Management Protocol (SNMP)
110
Enabling or Disabling Traps
To enable or disable a trap for an SNMP community, perform the following
procedure:
1. From the menu on the left side of the page, select the SNMP folder.
The SNMP folder expands.
2. From the SNMP folder, select Trap Setting.
The Trap Setting Page is shown in Figure 33.

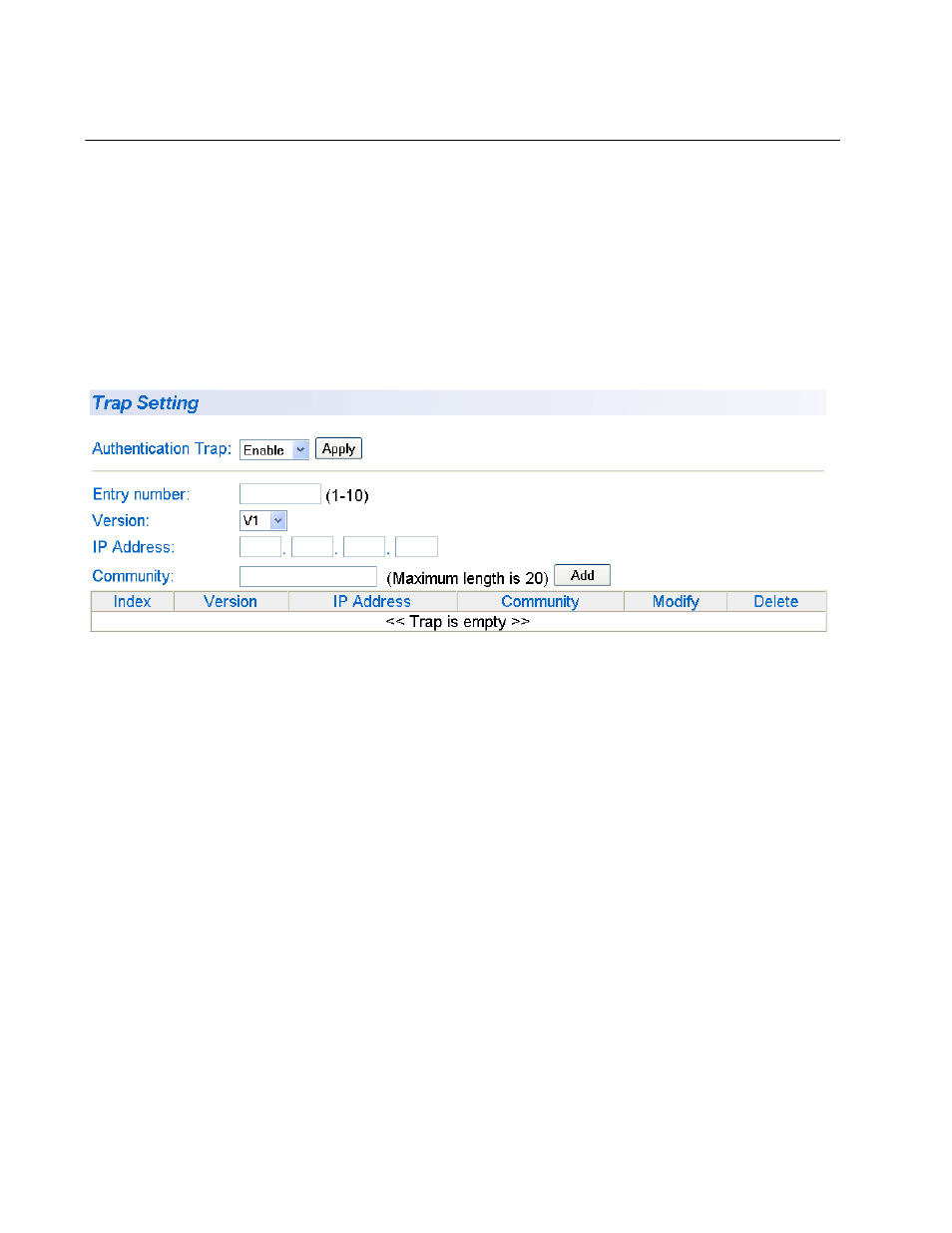

Figure 33. Trap Setting Page
3. Type a trap number between 1 and 10 in the Entry number field.
4. Select the SNMP version of the trap by selecting V1 for SNMP version
1 or V2c for SNMP version 2vc in the Version field.
5. Enter an IP address, in the xxx.xxx.xxx.xxx format, in the IP Address
field.
6. Enter a previously defined community name in the Community field.
Then click Add.
A new trap is displayed in the Trap Setting table.
7. From the menu on the left side of the page, select Save
Configuration to Flash to save your changes.
