Chapter 14: 802.1x Port-based Network Access Control
160
ˆ Force-unauthorized - Places the port in the unauthorized state,
ignoring all attempts by the client to authenticate. This port control
setting blocks all users from accessing the network through the port
and is similar to disabling a port and can be used to secure a port from
use. The port continues to forward EAPOL packets, but discards all
other packets, including multicast and broadcast packets.
ˆ Force-authorized - Disables IEEE 802.1x port-based authentication
and causes the port to transition to the authorized state without any
authentication exchange required. The port transmits and receives
normal traffic without 802.1x-based authentication of the client. This is
the default setting. Use this port control setting for those ports that are
connected to network devices that are not to be authenticated.

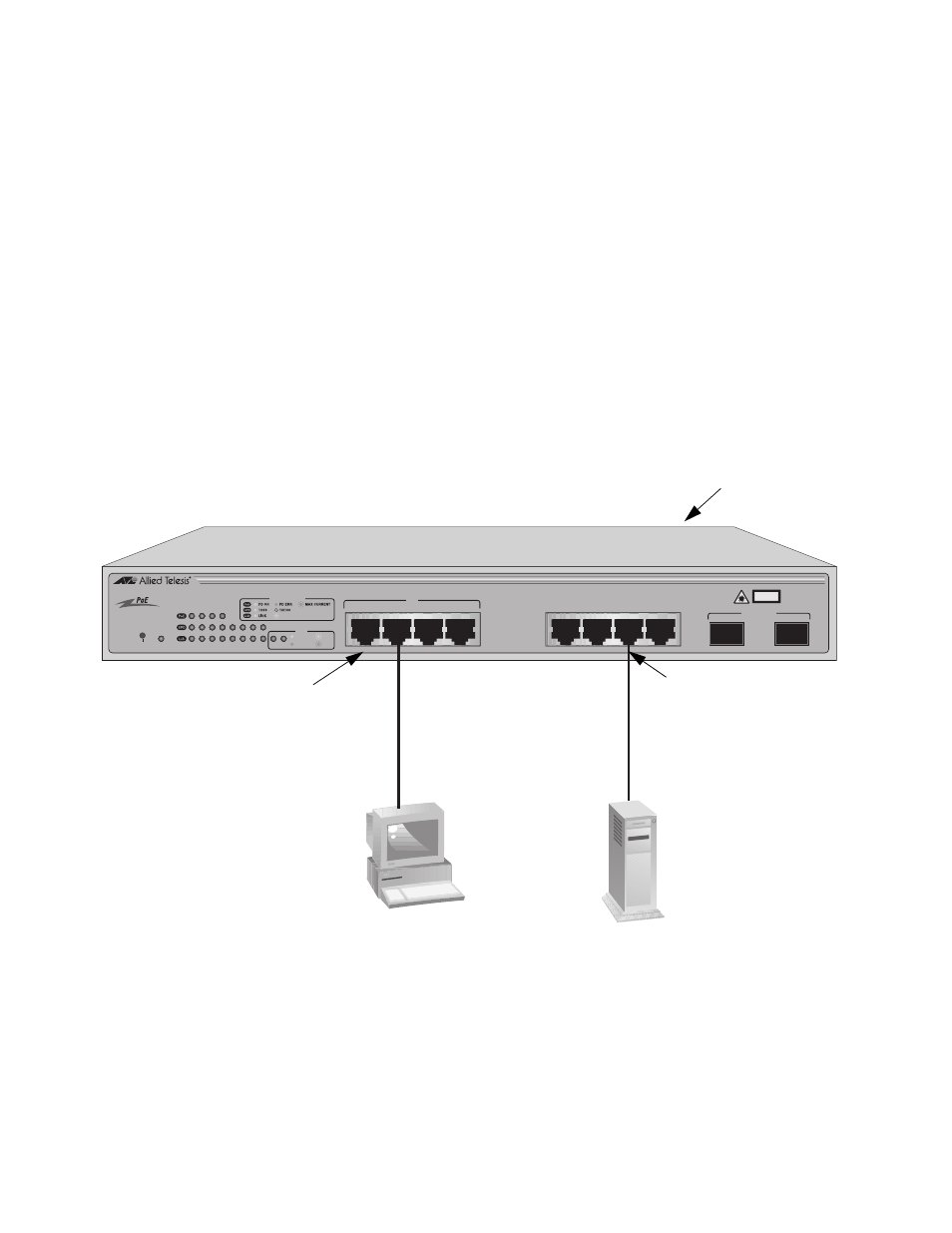

Figure 49 illustrates the concept of the authenticator port control settings.
Figure 49. Example of the Authenticator Role
ˆ Port 2 is set to Auto. The end node connected to the port must use its
802.1x client software and provide a username and password to send
or receive traffic from the switch.
ˆ Port 7 is set to the Force-authorized setting so that the end node
connected to the port does not have to provide a user name or
password to send or receive traffic from the switch. In the example, the
