AT-S101 Management Software User’s Guide
53
Modifying a Tagged VLAN
To modify the name or port assignments of a tagged VLAN, perform the
following procedure:
1. From the menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select Tagged VLAN.
An Example of a Tagged VLAN page is shown in Figure 17 on page
52.
4. In the VLAN Action column, click modify next to the VLAN that you
want to change.
The Modify VLAN Page is displayed, see Figure 18

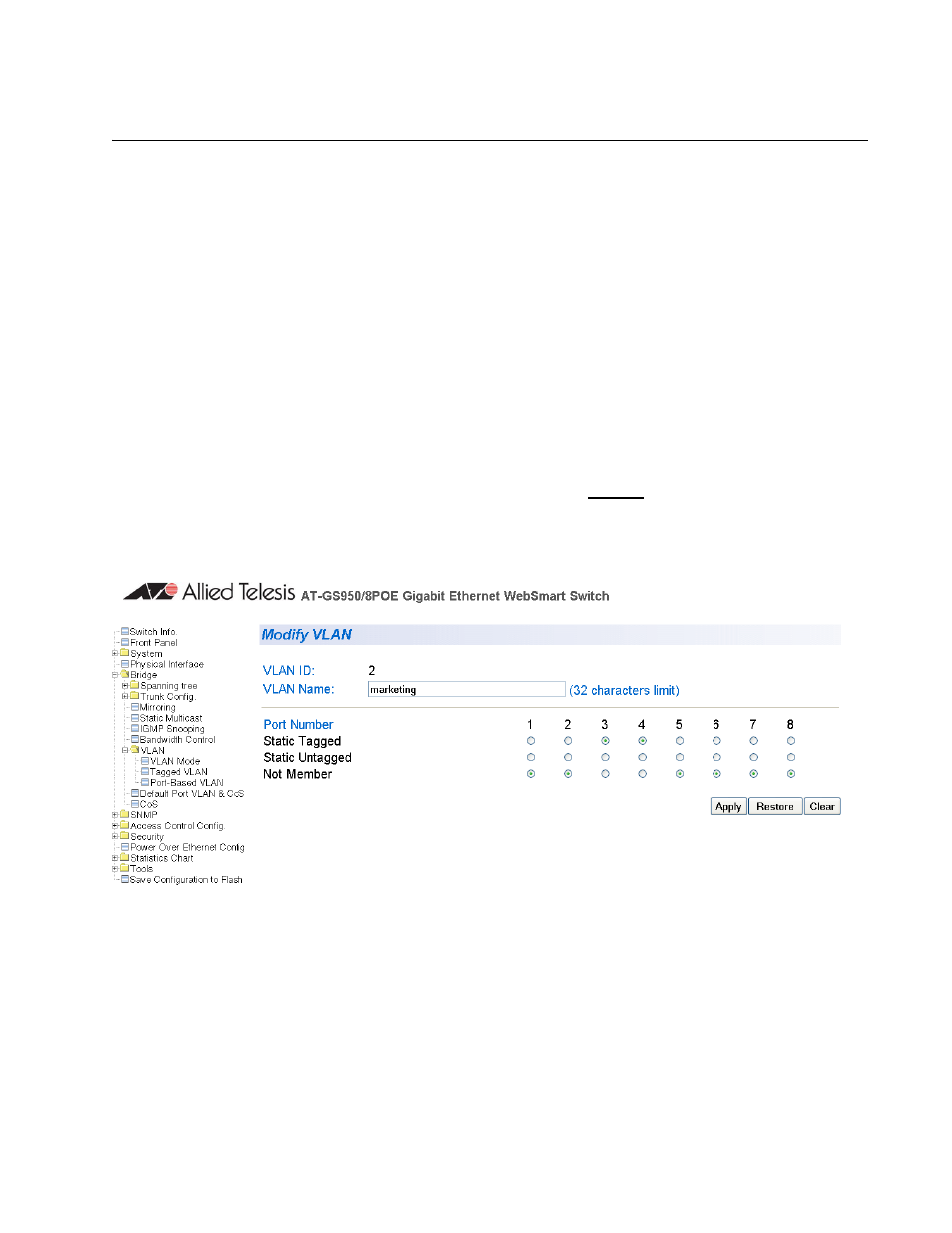

Figure 18. Modify VLAN Page
5. To change the VLAN ID, type in a VLAN ID in the VLAN ID field.
You can choose a value between 2 and 4,000. You can configure up to
52 VLANs.
