Chapter 6: Port Trunking
78
Port Trunking Overview
A port trunk is an economical way for you to increase the bandwidth
between the Ethernet switch and another networking device, such as a
network server, router, workstation, or another Ethernet switch. A port
trunk is a group of ports that have been grouped together to function as
one logical path. A port trunk increases the bandwidth between the switch
and another network device and is useful in situations where a single
physical link between the devices is insufficient to handle the traffic load.
Static Port Trunk
Overview
A static port trunk consists of two to eight ports on the switch that function
as a single virtual link between the switch and another device. A static port
trunk improves performance by distributing the traffic across multiple ports
between the devices and enhances reliability by reducing the reliance on a
single physical link.
A static trunk is easy to configure. You designate the ports on the switch
that are in the trunk and the management software on the switch
automatically groups them together.

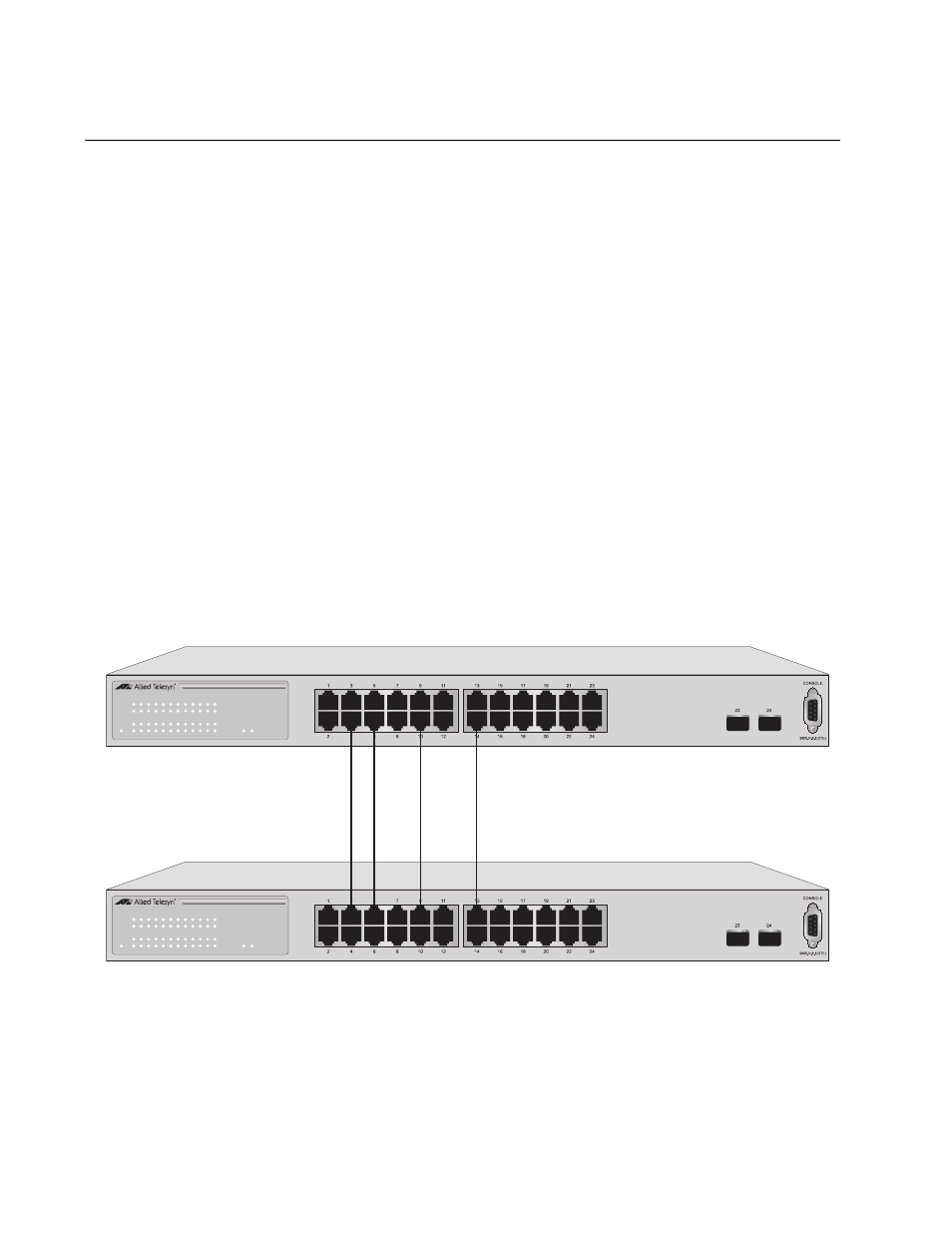

The example in Figure 24 illustrates a static port trunk of four links
between two AT-GS950/8POE Gigabit Ethernet WebSmart Switches.
Figure 24. Static Port Trunk Example
Network equipment vendors tend to employ different techniques to
implement static trunks. Consequently, a static trunk on one device may
be incompatible with the same feature on a device from a different
1306
1
3
5
7
9
11
13
15
17
19
21
23
POWER
2
4
6
8
10
12
14
16
18
20
22
24
23
24
LINK/ACT
LINK/ACT
SPEED
LINK/ACT
SPEED
AT-GS950/24
24-Port 10/100/1000Mbps + 2 SFP Combo WebSmart Switch
1
3
5
7
9
11
13
15
17
19
21
23
POWER
2
4
6
8
10
12
14
16
18
20
22
24
23
24
LINK/ACT
LINK/ACT
SPEED
LINK/ACT
SPEED
AT-GS950/24
24-Port 10/100/1000Mbps + 2 SFP Combo WebSmart Switch
