AT-S101 Management Software User’s Guide
165
Configuring 802.1x Port-based Network Access Control
To configure 802.1x port-based network access control, perform the
following procedure:
1. Select the Security folder from the menu on the left side of the page.
The Security folder expands.
2. From the Security folder, select Port Access Control.
The 802.1x Access Control Configuration Page is shown in Figure 51.

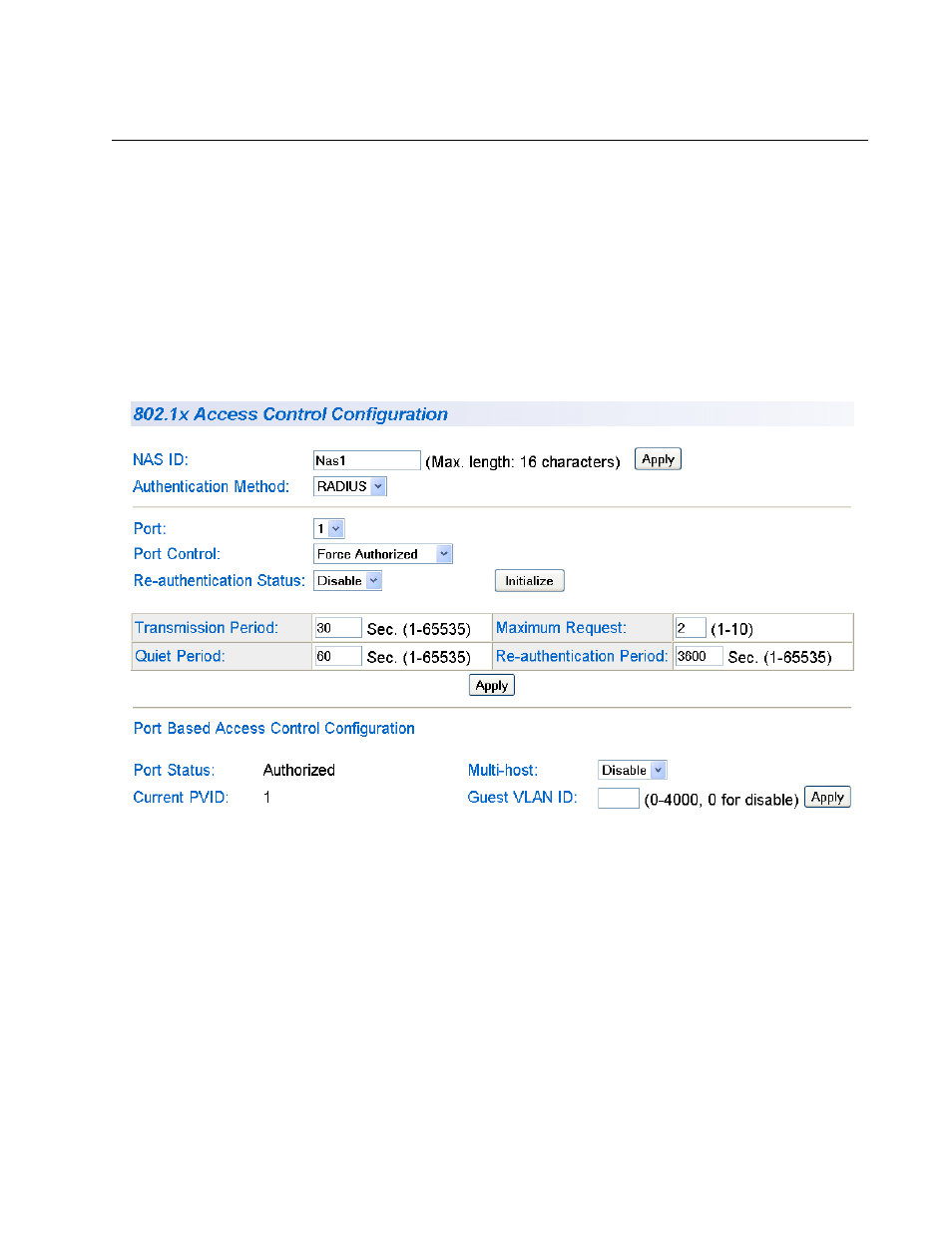

Figure 51. 802.1x Access Control Configuration Page
3. To select a port, click Port and select the port you want to configure
from the pull-down menu. You can configure only one port at a time.
The current settings for the selected port are displayed.
