AT-S101 Management Software User’s Guide
17
ˆ Tools
ˆ Save Configuration
4. To see the front panel of the switch, select Front Panel from the menu
on the left side of the page.
The AT-S101 Management Software displays the front of the switch.
The window contains an image of the front of the switch. Ports that
have a link to an end node are green. Ports without a link are grey. An
example of a front panel is shown in Figure 4.

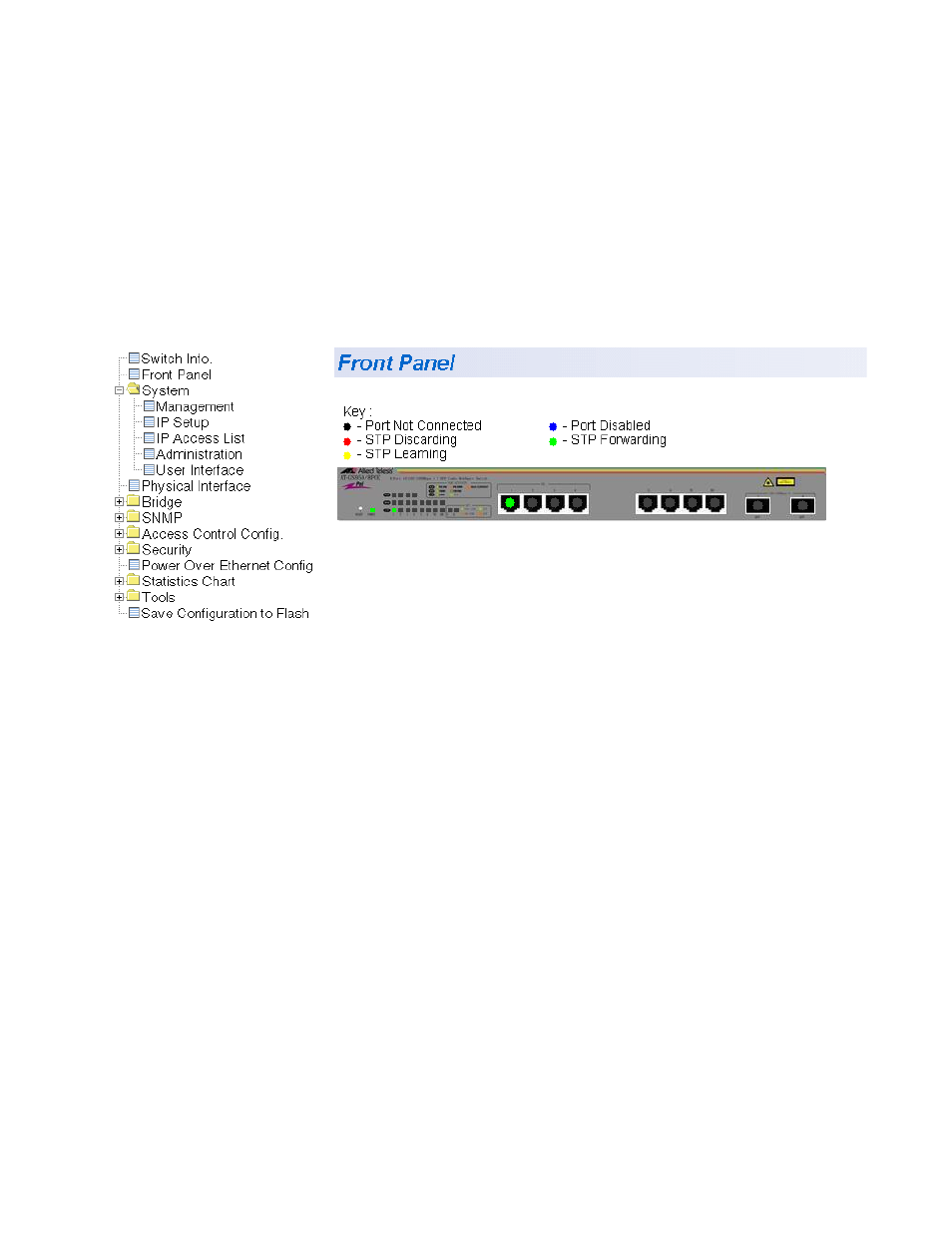

Figure 4. Front Panel Page
A web browser management session remains active even if you link to
other sites. You can return to the management web pages anytime as long
as you do not quit the browser.
