AT-S101 Management Software User’s Guide
29
Configuring System Management Information
This section explains how to assign a name to the switch, as well as the
location of the switch and the name of the switch’s administrator. Entering
this information is optional.
To set a switch’s administration information, perform the following
procedure:
1. From the menu on the left side of the page, click the System folder.
The System folder expands.
2. From the System folder, select Management.
The Management Page is shown in Figure 7.

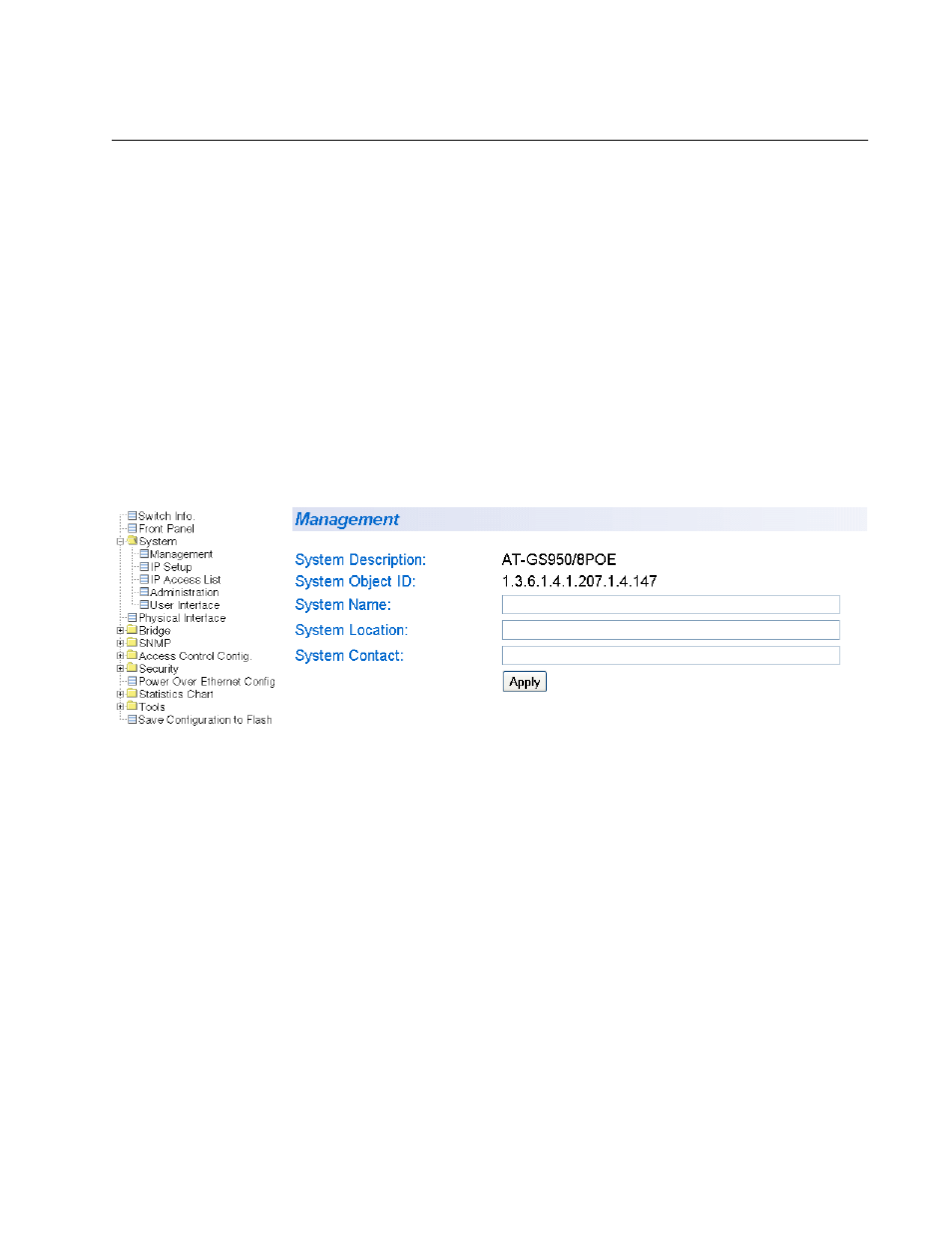

Figure 7. Management Page
3. Configure the following parameters as necessary:
System Description
Specifies the model number of the switch. You cannot change this
parameter.
System Object ID
Indicates the unique SNMP MIB object that identifies the AT-GS950/
8POE switch model. You cannot change this parameter.
System Name
Specifies a name for the switch, for example, Sales. The name is
optional and may contain up to 50 characters.
