AT-S101 Management Software User’s Guide
145
Basic STP and RSTP Configuration
To configure the basic STP and RSTP settings, perform the following
procedure:
1. From the menu on the left side of the page, select Bridge.
The Spanning Tree folder is displayed.
2. From the Bridge folder, select the Spanning tree folder.
3. From the Spanning tree folder, select RSTP.

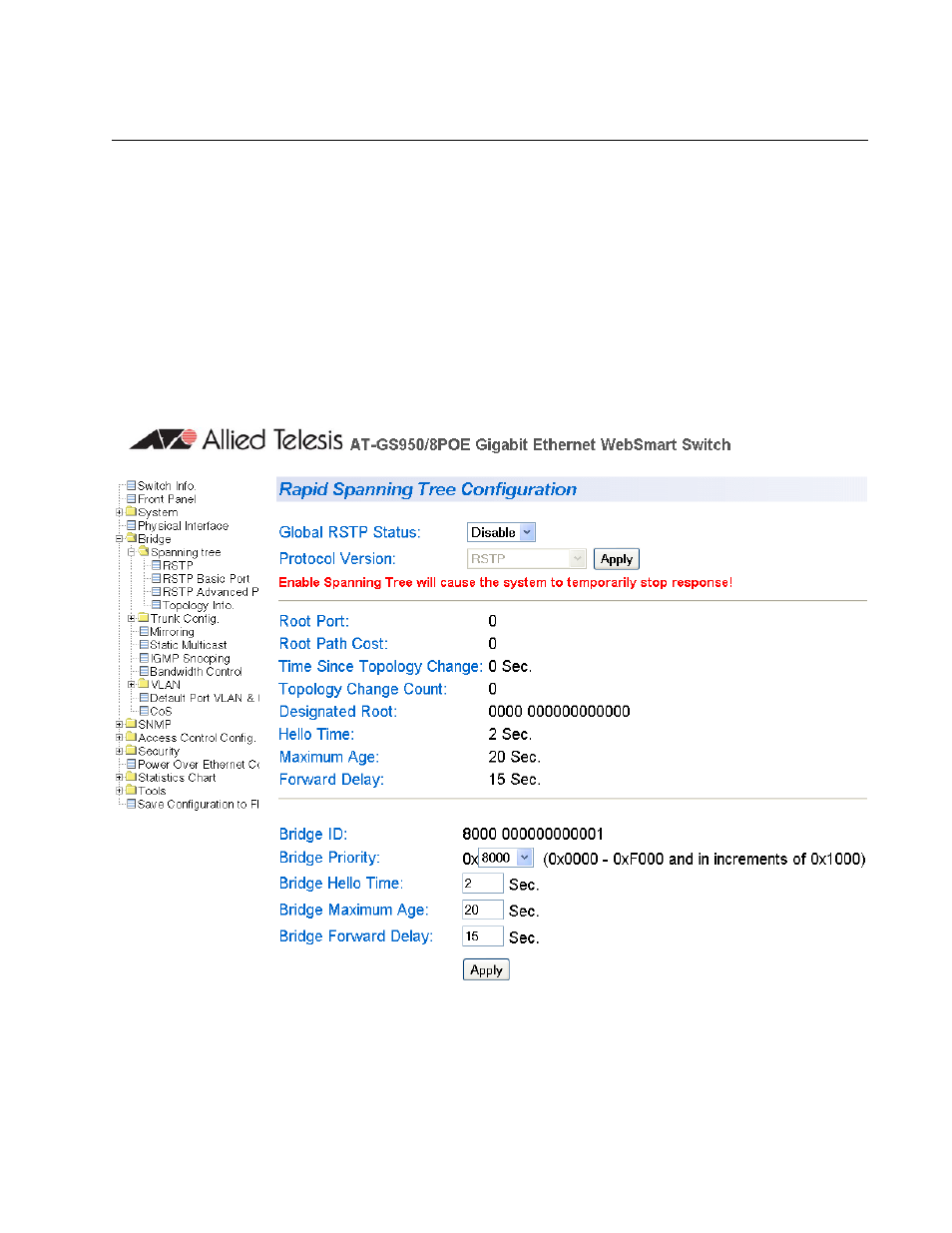

The Rapid Spanning Tree Configuration Page is shown in Figure 45.
Figure 45. Rapid Spanning Tree Configuration Page
