Configuring Port Mirroring
To set up port mirroring, perform the following procedure:
1. Select the Bridge folder.
The Bridge folder expands.
2. From the Bridge folder, select Mirroring.

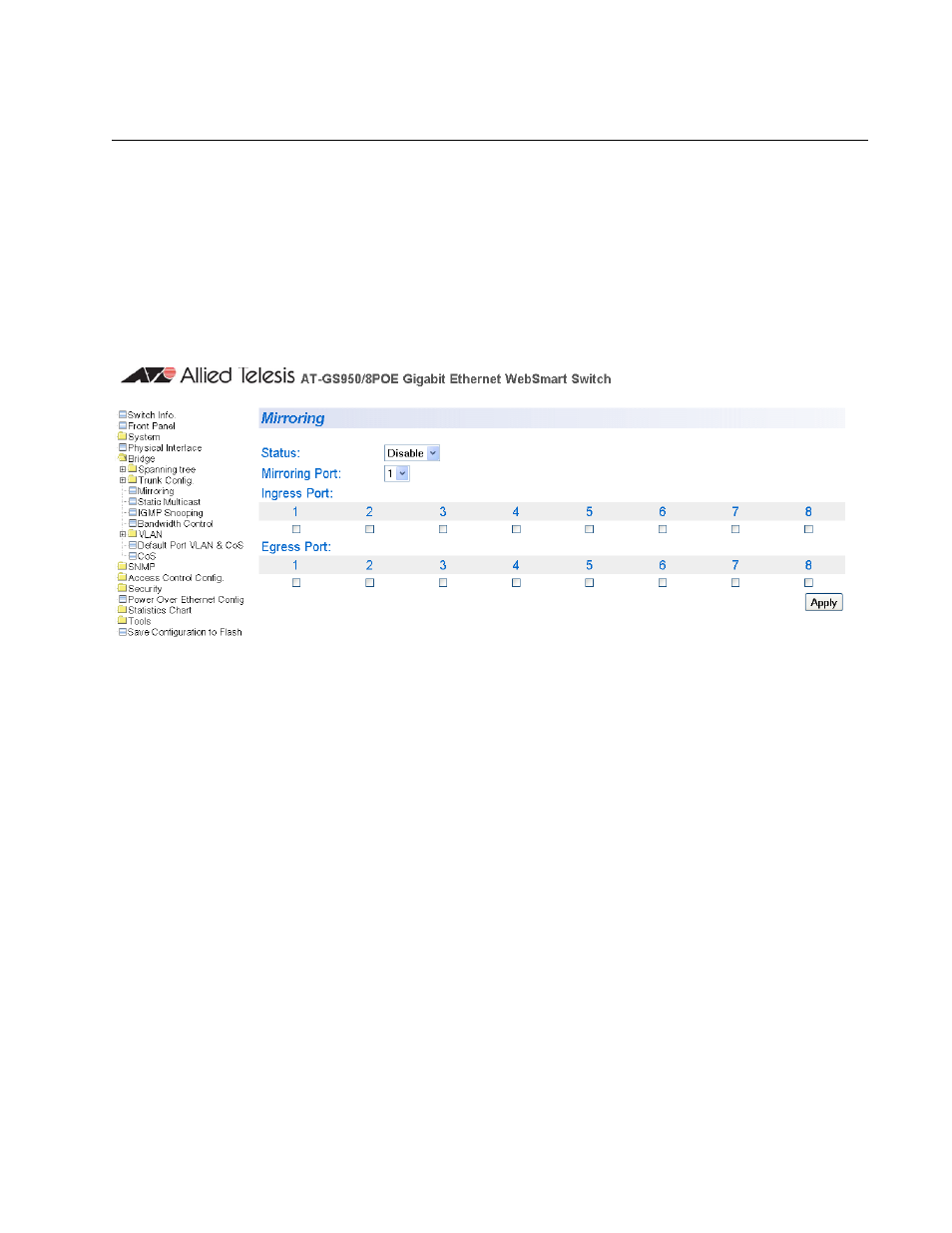

The Mirroring Page is shown in Figure 38.
Figure 38. Mirroring Page
3. Click Mirroring Port and from the pull-down menu select the port
where the network analyzer is connected.
4. For the mirrored port, select the port whose ingress, egress, or both
ingress and egress traffic you want to monitor.
5. Click Apply on the right-hand side of the page.
Port mirroring is immediately enabled on the switch. You can now
connect a data analyzer to the mirroring port to monitor the traffic on
the other port.
6. From the menu on the left side of the page, select Save Configuration
to Flash to save your changes.
