AT-S101 Management Software User’s Guide
205
Creating an Access Control Port List
This section provides a procedure to assign an index to a list of ports.
To create a port list, perform the following procedure:
1. From the menu on the left side of the home page, select the Access
Control Configuration folder.
The Access Control Configuration folder expands.
2. From the Access Control Configuration folder, select Port List.
The Port List Page is displayed. See Figure 62.

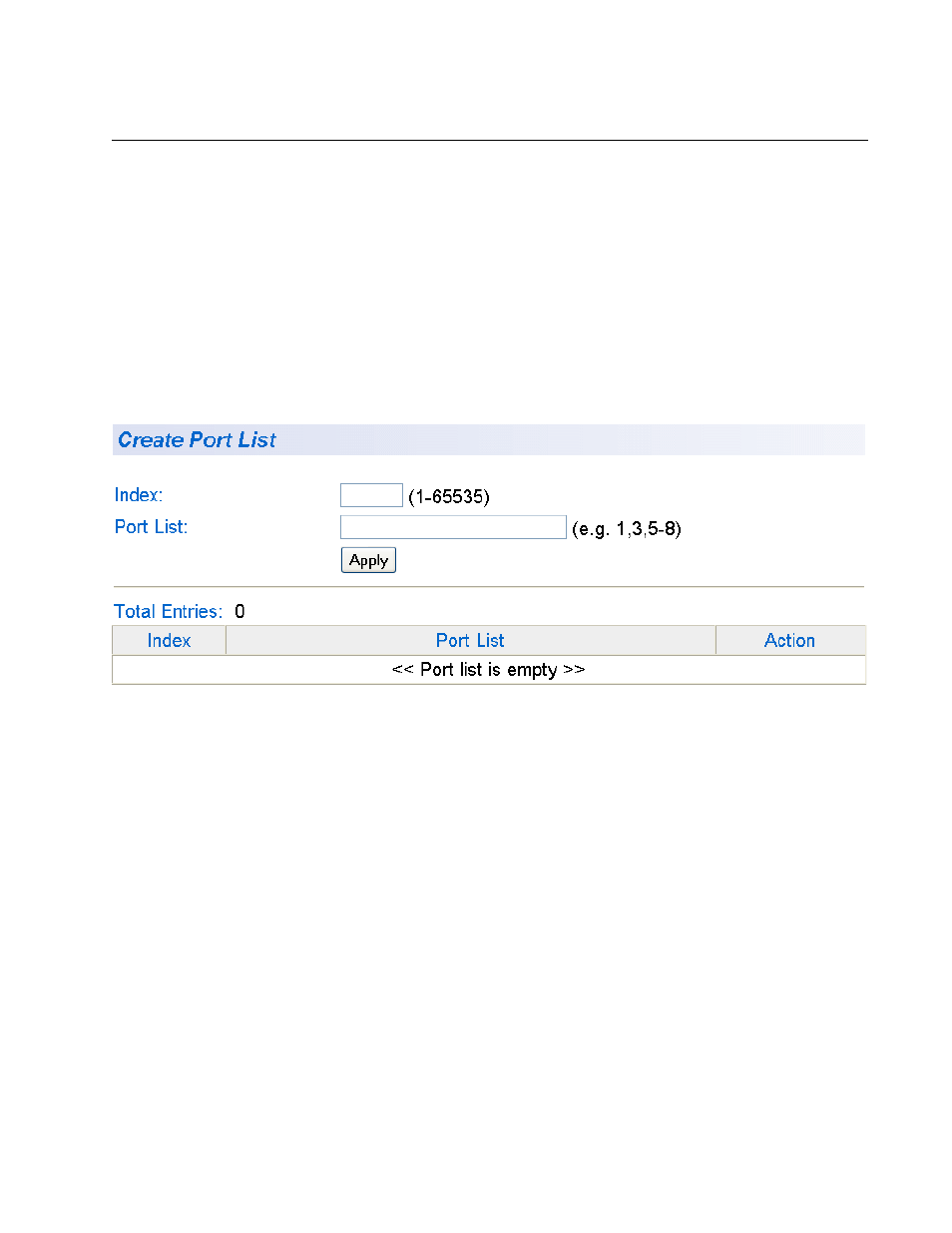

Figure 62. Create Port List Page
3. Enter a classifier index in the Index field.
4. Enter list of ports in the Port List field.
Enter ports separated by commas or enter a range of ports separated
by a hyphen.
5. Then click Apply to activate your changes.
The Port List table is updated.
6. From the menu on the left side of the page, select Save Configuration
to Flash to save your changes.
