AT-S101 Management Software User’s Guide
129
Setting a Static Multicast Address
This procedure explains how to set the static multicast feature for each
port on the AT-GS950/8POE switch.
To add a static MAC address to the switch, perform the following
procedure:
1. From the menu on the left side of the page, select the Bridge folder.
The Bridge folder expands to display several folders including the
Trunk Config. folder.
2. From the Trunk Config. folder, select Static Multicast.
The Static Multicast Address Table Page is displayed. See Figure 39.

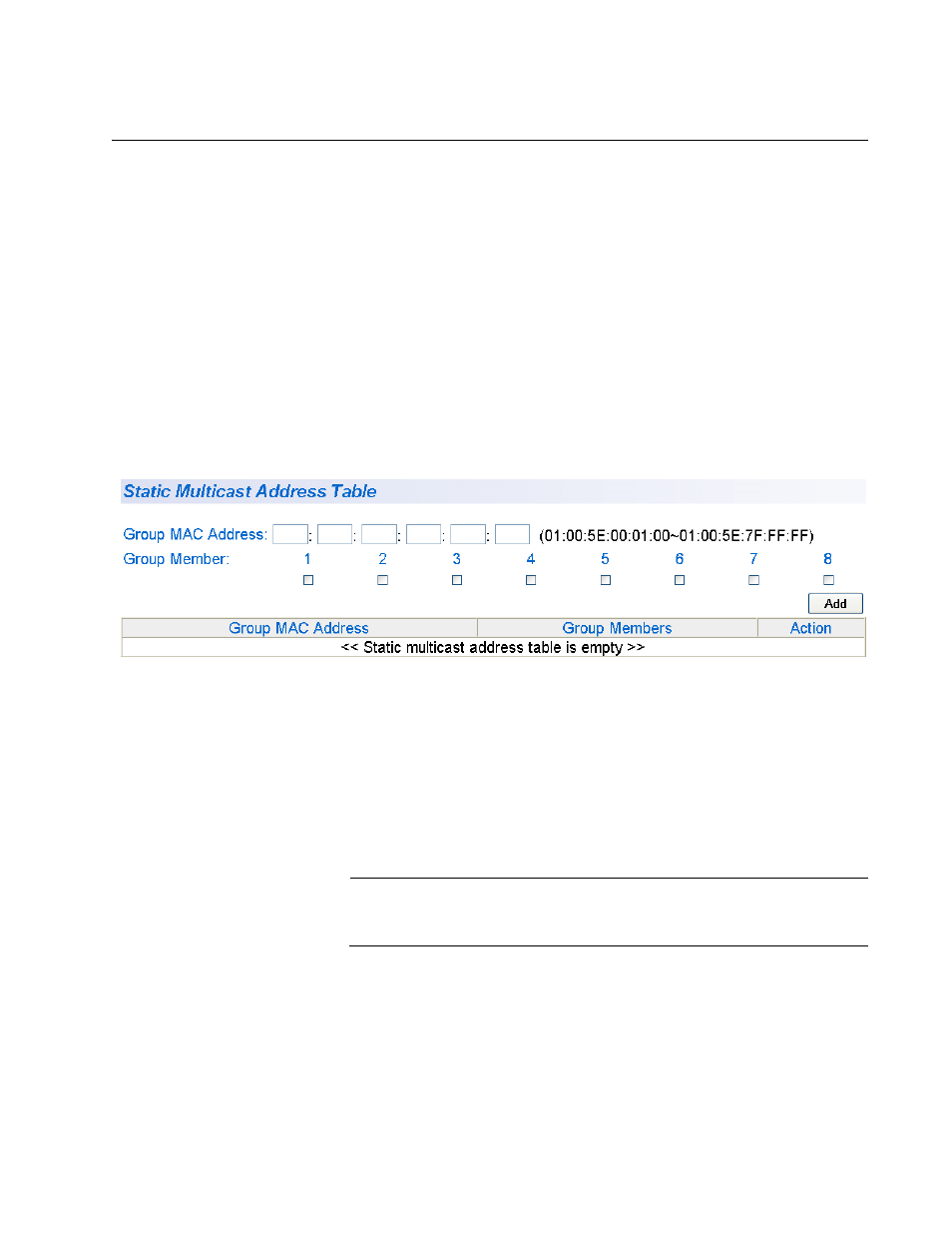

Figure 39. Static Multicast Address Table Page
3. In the Group MAC Address field, enter a MAC address.
The range is from 01:00:5E:00:01:00 to 01:00:5E:7F:FF:FF.
4. Assign the MAC address a Group Member (or members) for selecting
the checkbox below each group member. Then click Add.
Note
Each group member corresponds to a port number. In addition, you
can assign a port a maximum limit of 32 static multicast addresses.
The Static Multicast Address Table is updated with the new Group
MAC Address.
