Dsplayng the All Channel Montor Wndow
Click the All Channel Monitor button on the toolbar or choose All Channel Montor from
the Wndow menu.
Click here.
or

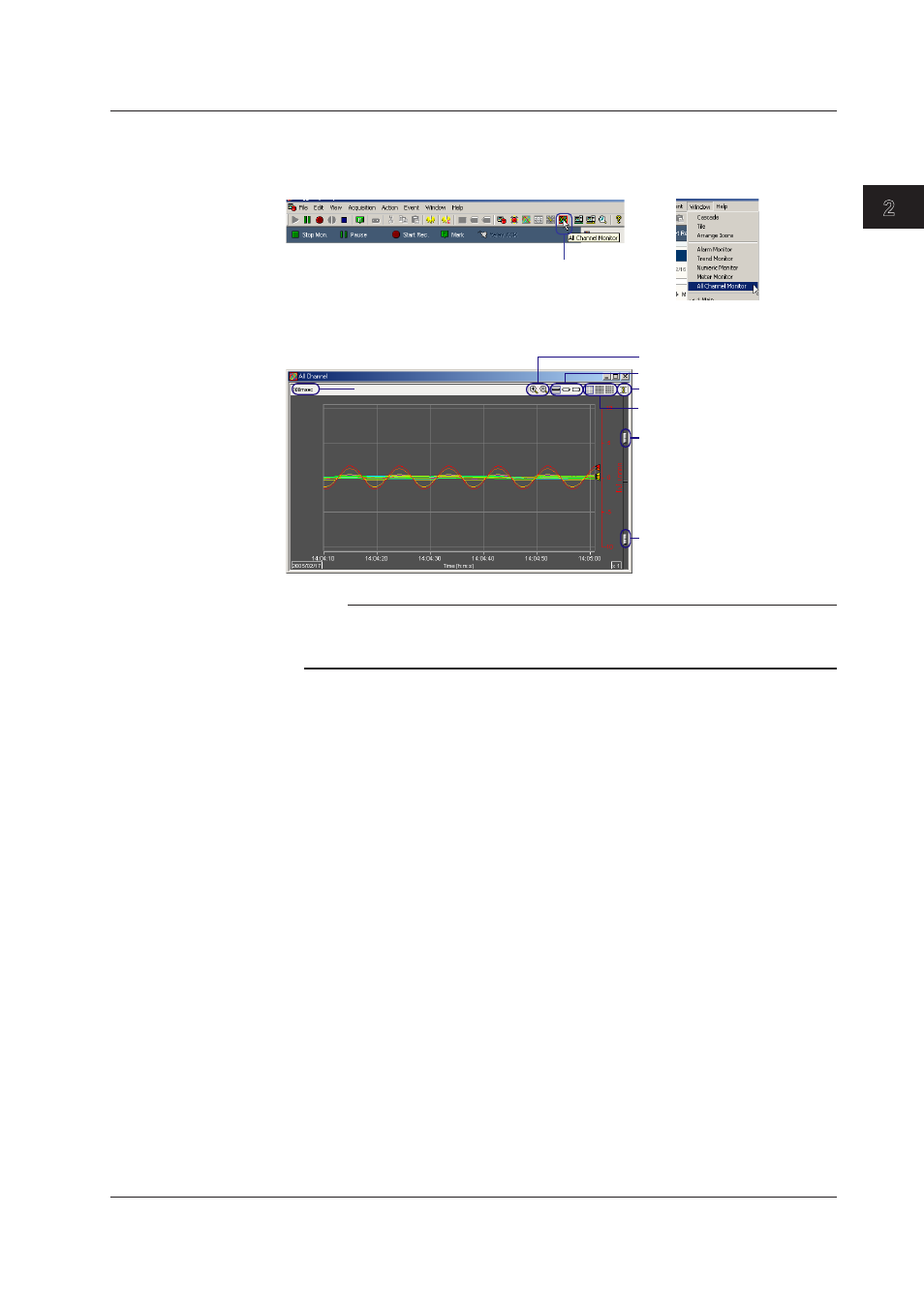

The All Channel Monitor opens as shown below.
Zoom in or out of the time axis
Turn ON/OFF the waveform display limit
Monitor Interval
Change the grid density
Change the background darkness
Switch the grid density
Switch the thickness of the waveform
Note
Since data from all channels are displayed, the screen may update more slowly. The All
Channel Montor dialog box will be displayed to warn you of this. To compensate, you can
increase the display magnification or decrease the size of the window.
