When recording is stopped, the display changes to Start Recording
or
Click either one.
Dsplayng the Trend Montor Wndow and Changng Dsplay Settngs

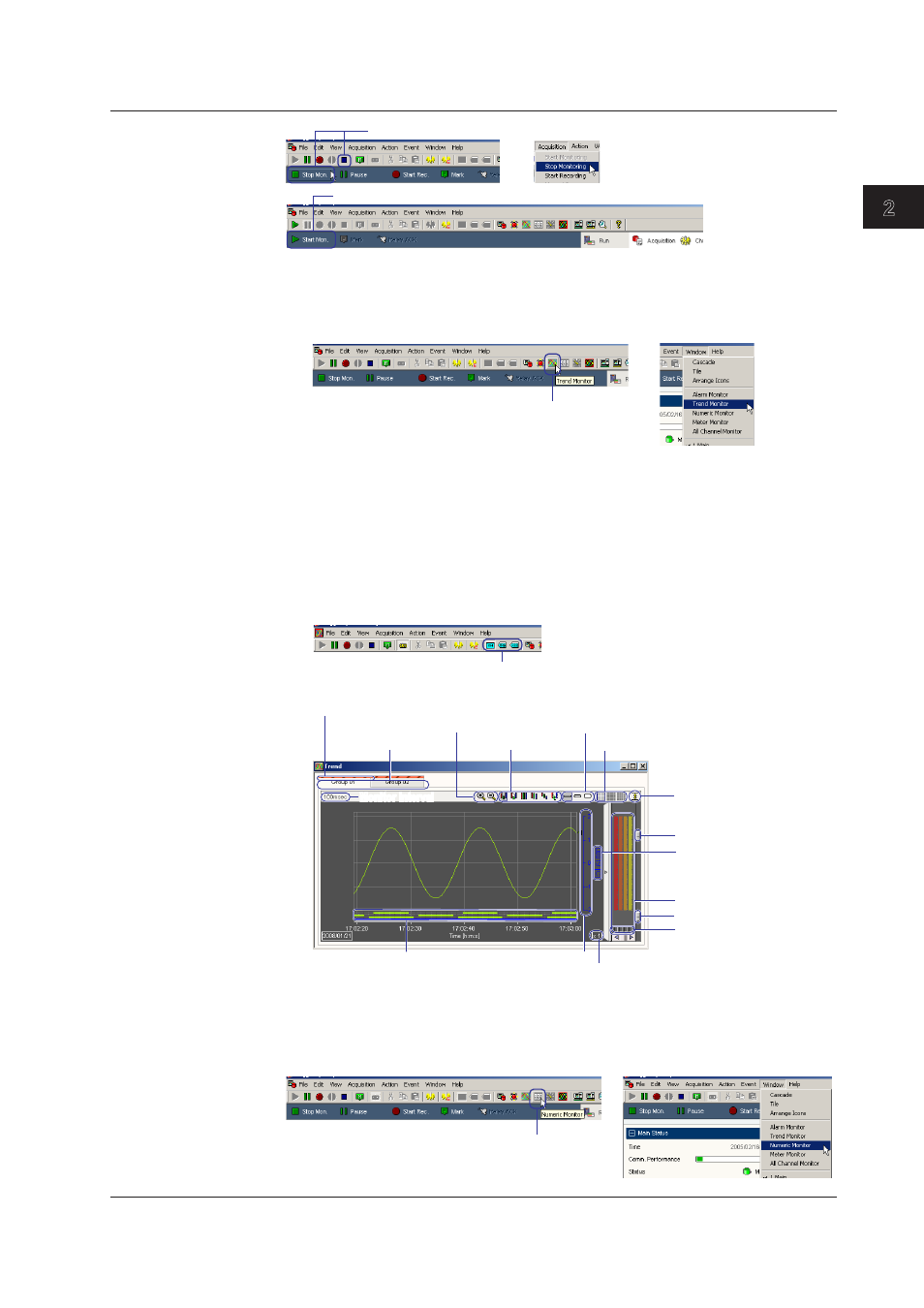

1. Click the Trend Monitor button on the toolbar or choose Trend Montor from the
Wndow menu.
Click here
or
2. To change display settings, follow the instructions in the figure below.
If the channels of different measurement groups or channels of math groups are
assigned to the same display group, a monitor is displayed for each measurement group
or math group (see the figure below). (In other words, multiple monitors are displayed.)
A single Trend Monitor window can display up to four waveform display areas.
When setting multiple units, if channels of different units assigned to the same
measurement group are assigned to the same trend monitor display group, the trend
is displayed in a separate window.
Switch between channel number, tag No., and tag comment
Common to the Trend Monitor, Numeric Monitor, Meter Monitor, and Alarm Monitor
Switch the display group
Y-axis
Waveform display ON/OFF
Grid density
Switch the grid density
Channel number, tag No., tag
comment, and measurement unit
Background color density
Zoom in or out of the time axis
Switch the display zone
Switch the Y-axis
Switch the thickness of the displayed waveform
Turn ON/OFF the waveform
display limit (clip)
Alarm display area
Displays a red bar on the group with an alarm occurring
Time axis magnification
Monitor interval
Dsplayng the Numerc Montor Wndow
Click the Numeric Monitor button on the toolbar or choose Numerc Montor from the
Wndow menu.
Click here.
or
2.10 Startng/Stoppng Data Montorng and Dsplayng the Montor
