4. After making the connections according to the explanation given on the calibration
execution screen 2, click the Calbrate button.

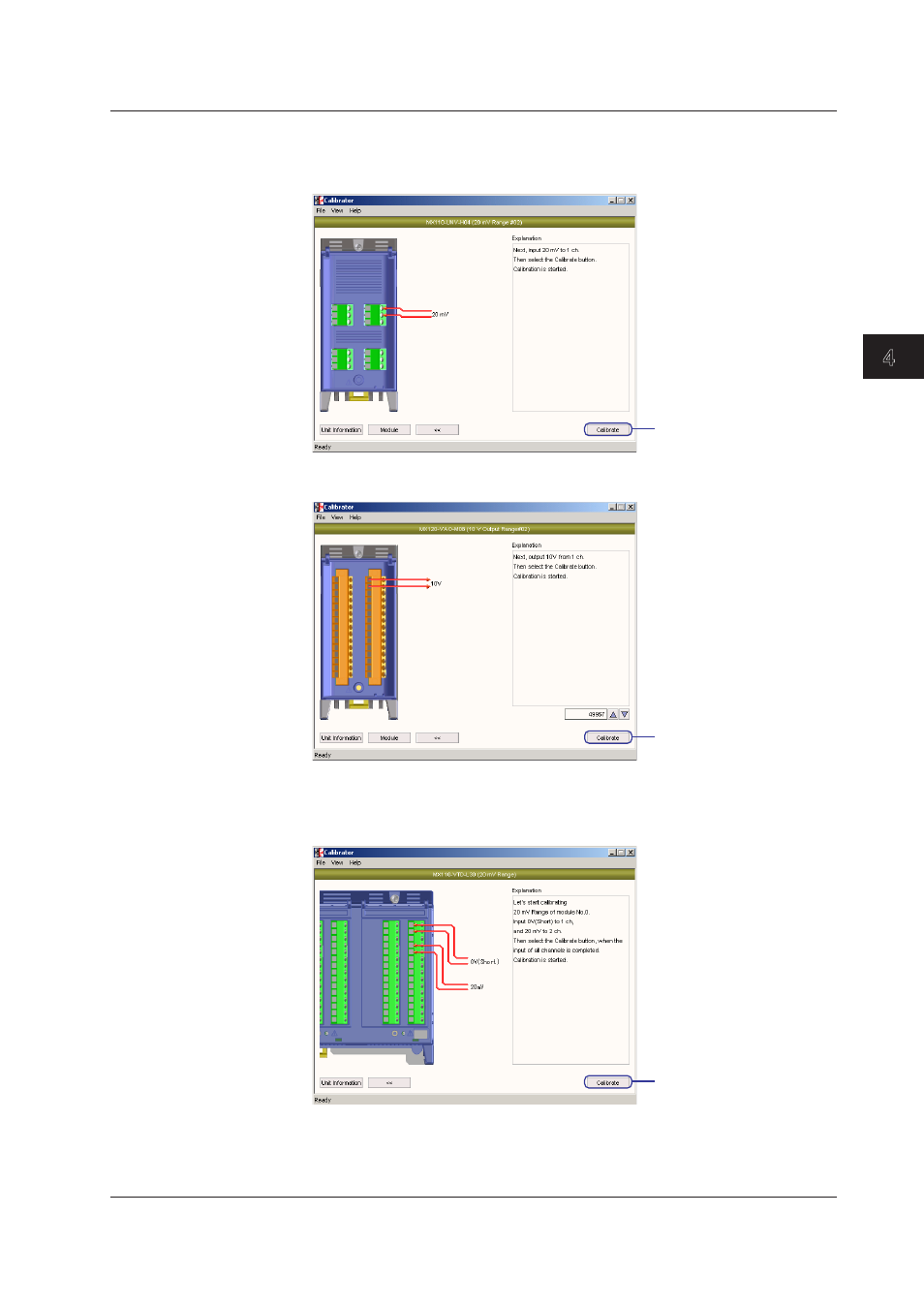

The figure below is an example of the 4-CH, High-Speed Universal Input Module.
Start calibration
The figure below is an example of the 8-CH, Medium-Speed Analog Output Module.
Start calibration
The figure below is an example of the 30-CH, Medium-Speed DCV/TC/DI Input
Module.
Example of the clamp termnal
Start calibration
4.2 Calbraton Procedure
