3-10 IM WX103-01E

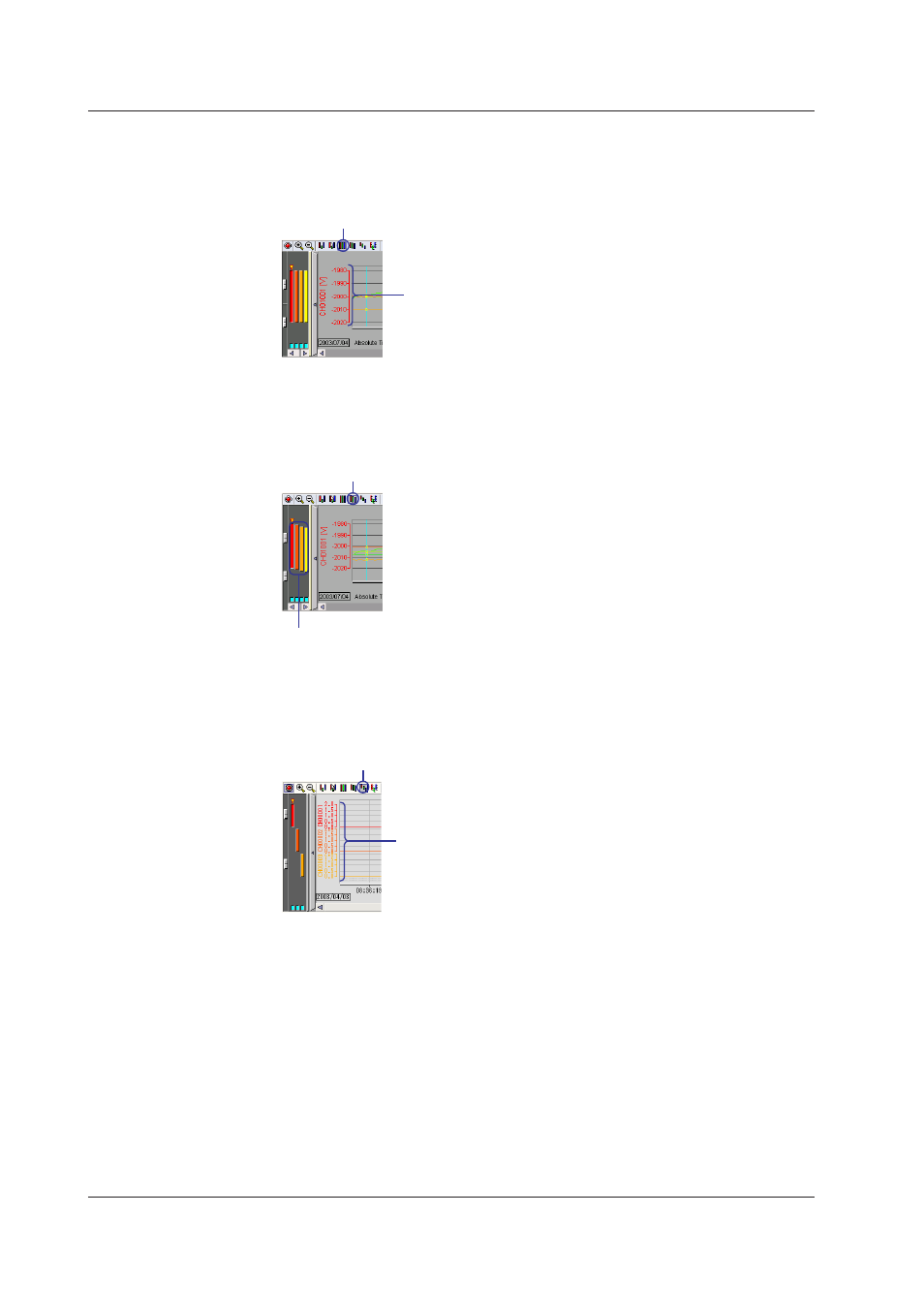

• Full Zone
Displays all the waveforms over the full zone of the waveform display area regardless
of the Zone settings on the General Display Settings window. A single Y-axis of the
active waveform is displayed.
Select full zone
Waveform display area (full zone)
• Slide Zone
Displays the waveforms by slightly offsetting the display position of each waveform
vertically regardless of the Zone settings on the General Display Settings window. A
single Y-axis of the active waveform is displayed.
Select slide zone
Slide in this manner
• Auto Zone
Displays the waveforms by dividing the waveform display area evenly according to
the number of displayed waveforms regardless of the Zone settings on the General
Display Settings window.
Select auto zone
Divide evenly automatically
3.2 Settng the Dsplay
