2.4 Settng the Measurement Condtons
(Measurement Channel Settngs)
Procedure
1. Click Channel. The Channel setup screen appears.
2. Click the Meas Ch tab.
Settng the Input Mode
3. Select the input mode from the Mode list box.
Settng the Measurng Range
4. Select the measurement range from the Range list box.
Settng the Span
5. Click the Mn box or Max box under Span and enter the minimum or the maximum
value of the span.
Settng the Scale (Only When Scalng)
6. Select the Use check box under Scale.
7. Select the decimal point position from the Pont list box under Scale.
8. Click the Mn box or Max box under Scale and enter the minimum or the maximum
value of the scale.
9. Click the Unt box and enter the unit of the scaled value.
Settng the Reference Channel for Dfference Input (Vald Only When Measurng
the Dfference wth Respect to the Measured Value of the Reference Channel)
10. Select the Use check box under Dfference Input.
11. Select the reference channel for the difference input from the Ref. Ch. list box under
Delta.

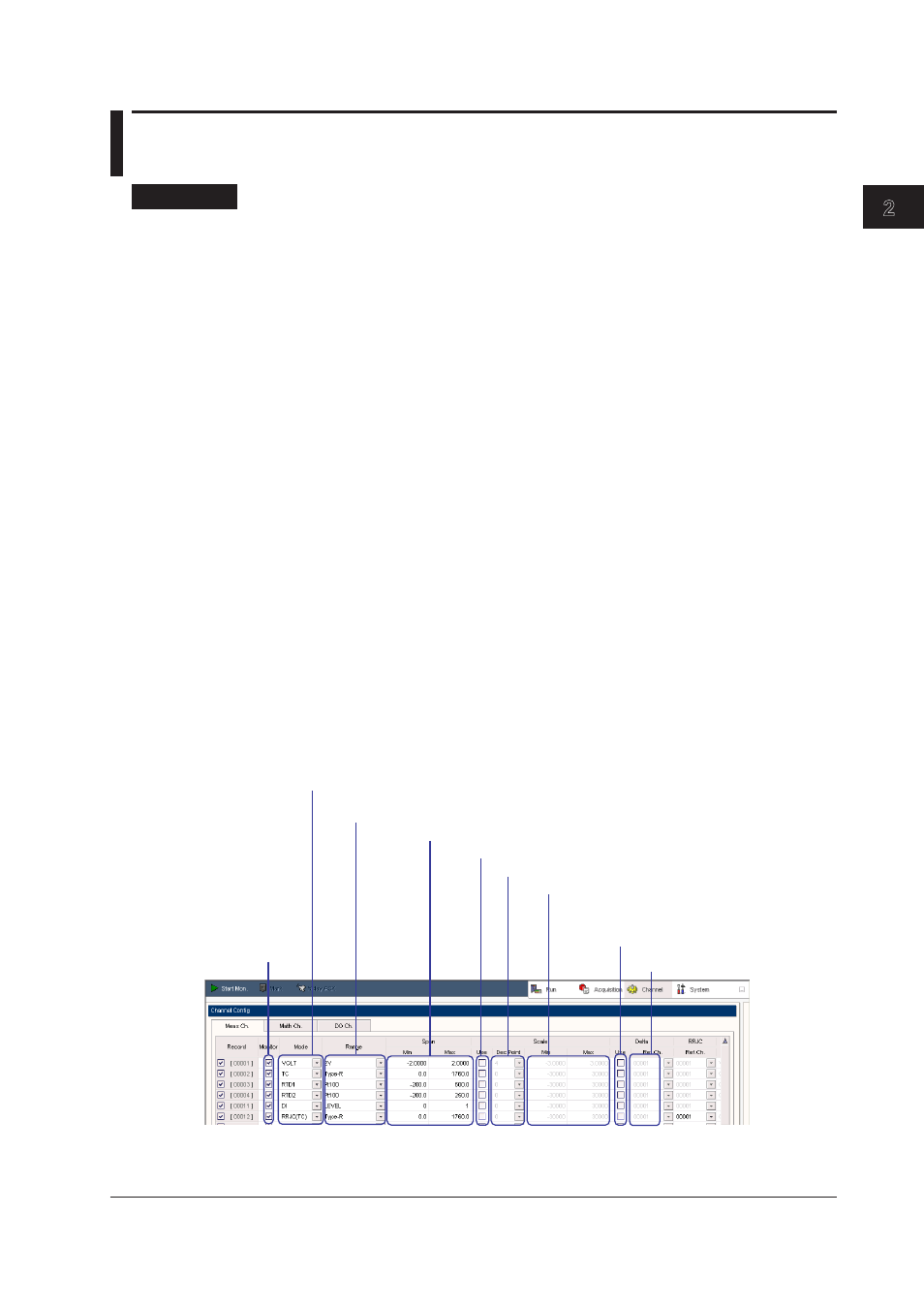

Select the measurement range
When changed, Span and the items to the right of it are initialized (excluding Tag No. and Tag Comment)
Maximum/Minimum values of the scale*
Select the check boxes here to perform scaling*
Decimal point position of the scale*
Minimum/Maximum value of span
Select the input type
When changed, the Range and the items to the right of it are initialized (excluding Tag No. and Tag Comment)
* Cannot be used when Mode is set to RRJC
Check here to select
the monitor channel
Select the reference channel for
difference input*
Check here to measure the difference input
(difference with respect to the measured value
of the reference channel)*
