Assgnng Input Modules to Measurement Groups
Auto Assgnment

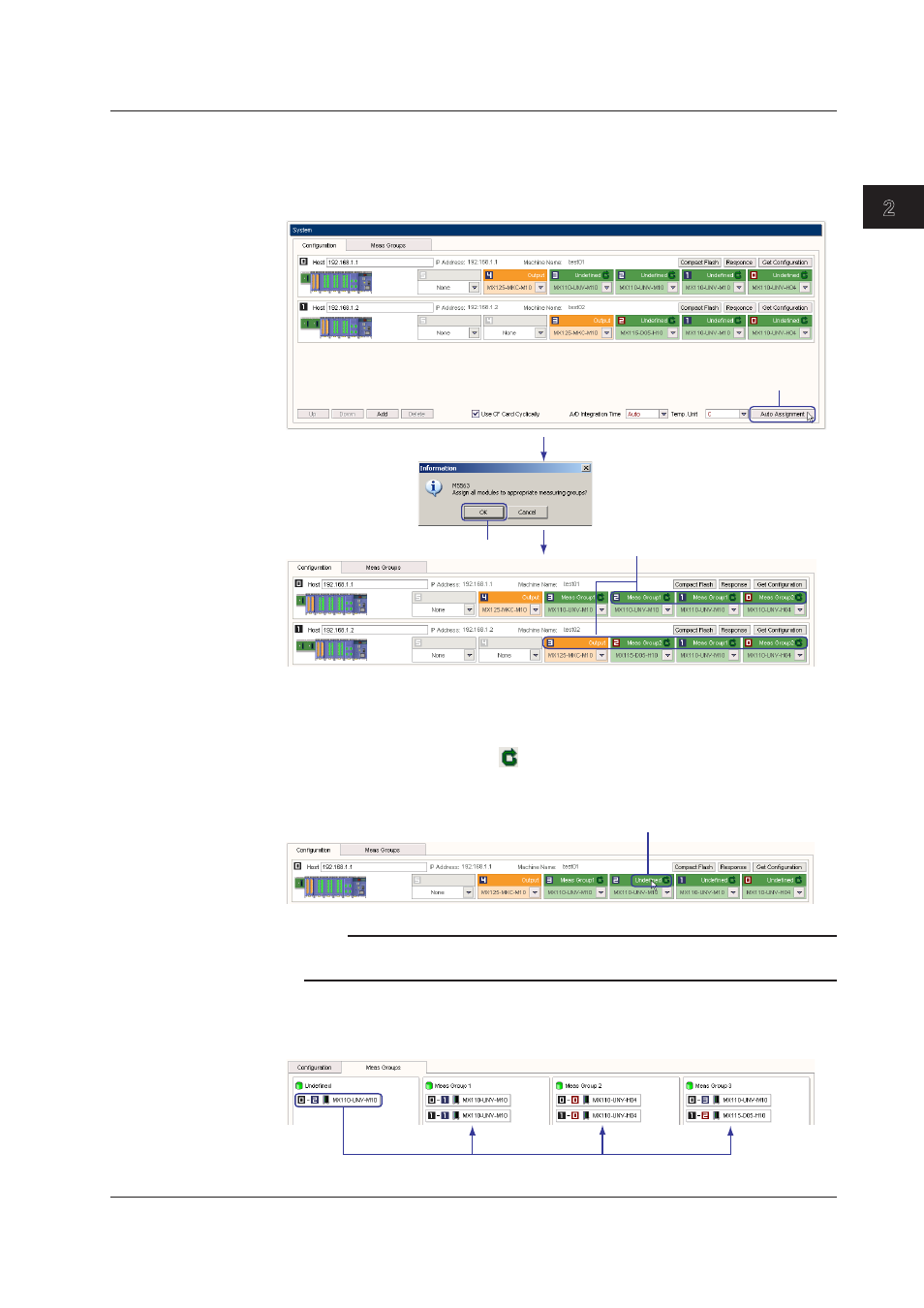

Click the Auto Assgnment button in the Configuration area. A dialog box with the
message “Assign all modules to appropriate measuring groups?” appears.
Click here.
Assigned to an appropriate measurement group*
Click OK.
* In this example, modules with a minimum measurement interval of 100 ms are
assigned to Meas Group 1 and those with a minimum measurement interval
Selectng the Measurement Group n the Confguraton Area
Click the word “Undefined” (or the
icon) of the slot with an input module selected and
select the measurement group. The monitor interval that is assigned to the measurement
group can be confirmed on the Acquisition setup screen.
Click here.
Note
To improve the PC performance, it is recommended that whenever possible, only a single
measurement group be assigned to a single unit.
Selectng the Measurement Group n the Meas Groups Area
Drag the module icon in the Undefined area onto the desired measurement group area.
Drag and drop the icon of the input module to a measurement group.
2.2 Confgurng the System
