Logger

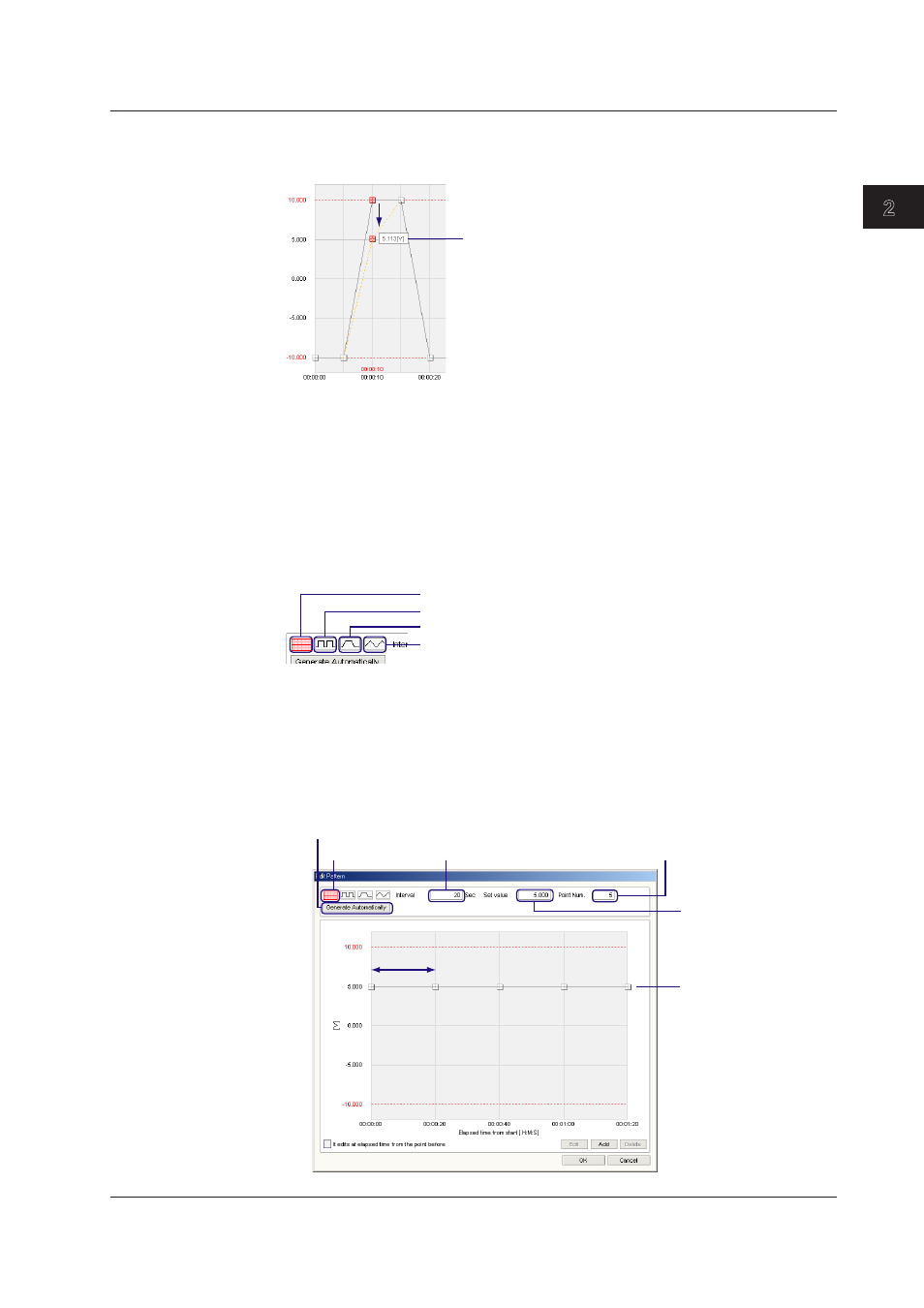

You can edit multiple points at the same time by dragging a selection of editable red
points.
Displays the setting value
when the point is moved
“Generate Automatcally” Functon
The following four types of patterns can be created.
• Fixed output
• Rectangular waveform output
• Trapezoidal waveform output
• Pyramidal waveform output
Click the displayed button for any pattern in the upper right of the Edt Pattern window.
The patterns can be edited after being created.
trapezoidal waveform output
pyramidal waveform output
rectangular waveform output
fixed output
Fxed Output
1. Click the Fxed Output button.
2. Enter the time interval for the points in the Interval box.
3. Enter an output value in the Set value box.
4. Enter the number of points in the Pont Num. box.
5. Click the Generate Automatcally button to create the pattern.
Input the interval between points
Specify the output value.
Enter the number of points Click here
Output setting
Interval
Execute the “Generate Automatically” function
2.8 Analog/PWM Output Settngs
