If the Logger Has Been Started Once Before

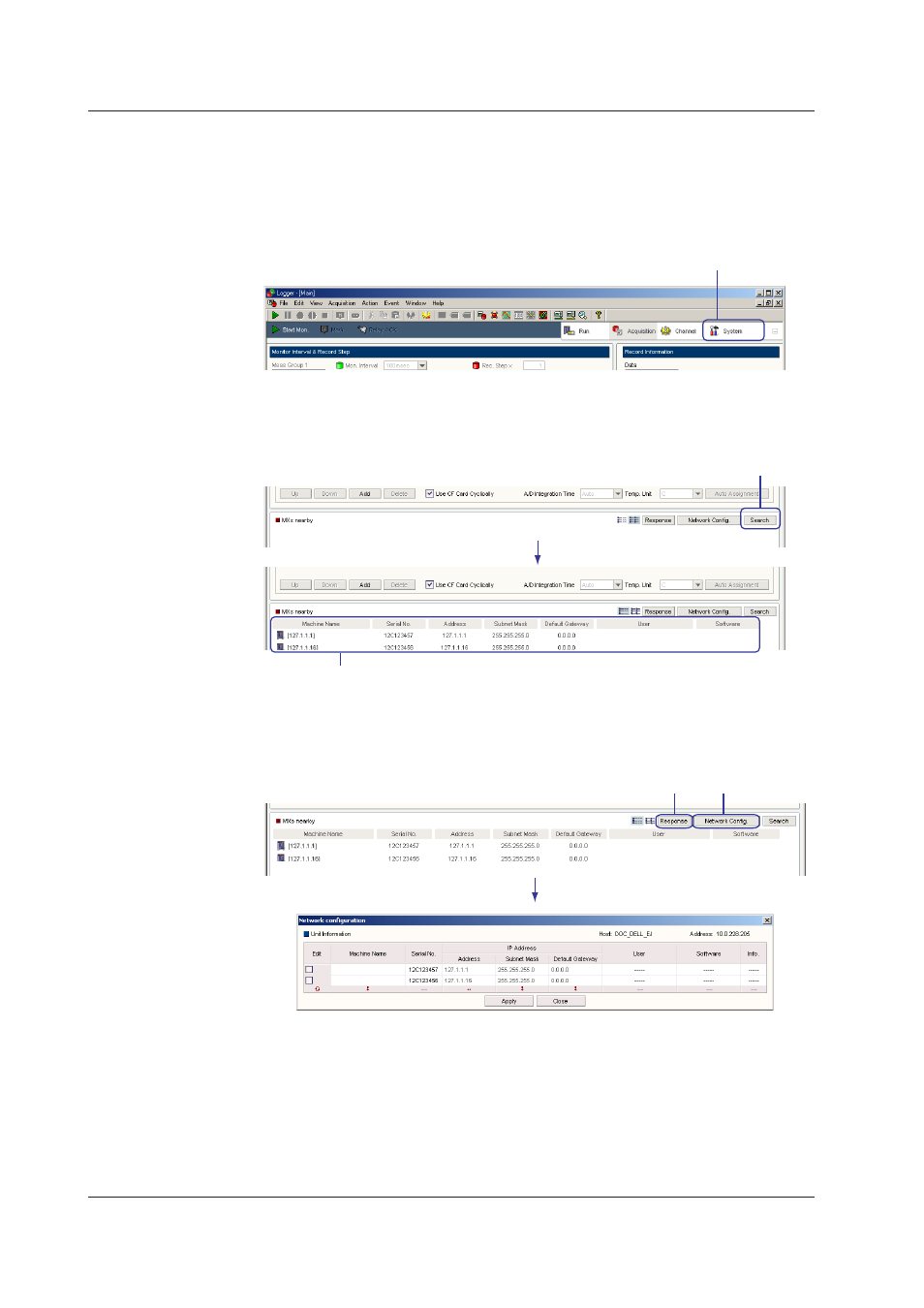

1. Start the Logger.
The screen of the Main window that was displaying when you exited the Logger the
previous time is displayed.
2. Click System.
The System screen appears.
Click here.
3. Click the Search button in the MXs nearby area.
Icons indicating the MX100s that are connected to the same network segment are
displayed in the MXs nearby area.
Click here.
Displays the icon of the MX100 in the same segment and the communication settings (only during detailed display)
Settng Up the Network
1. Click the
Network Config. button in the MXs nearby area of the System screen.
The Network Configuration dialog box opens.
Click here.
Checks the MX100 to be set
(-CALL- display)
2.1 Searchng MX100 Data Acquston Unts and Confgurng the Network
