1-15 IM WX103-01E
1
2
3
4
5
Index
Before Us
ng the Software
Click here while data acquisition is in progress 1
Display format of Y-axis
Switch the display group
Select the
channel Display ON/OFF
Turn ON/OFF collectively
Y-axis type (linear or logarithmic)
Turn scale ON/OFF
when displaying
multi-axes zone
Max./Min. value of the scale
Display zone position
Trip point
Number of channels assigned
automatically
Channel
color
Execute automatic
channel assignment
To copy
To not copy
Reset to default
Assign channels automatically
When making the settings the same as the first item
1
1 To apply the setting changes, click OK. To not apply the changes, click Cancel.
To apply the changes and keep the screen opened, click Apply.
2 To copy/paste the settings at the channel level, click the respective buttons.
2
Group name
Meter type

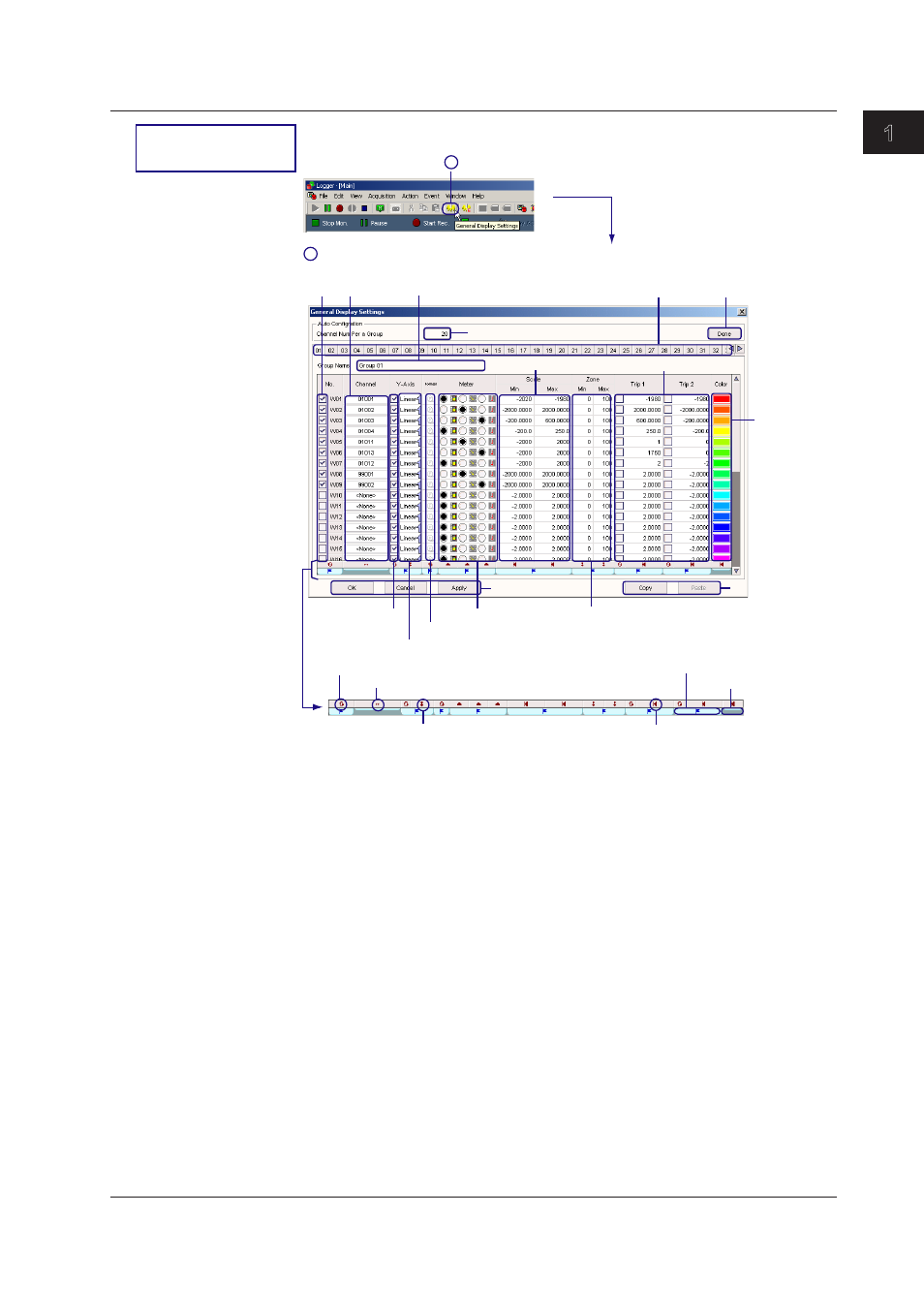

2 Change the items on the General Display Settings window
Displays the General
Display Settings window
Change the display
conditions
For details, see
section 2.10.
1.2 MXLOGGER Operaton Gude
